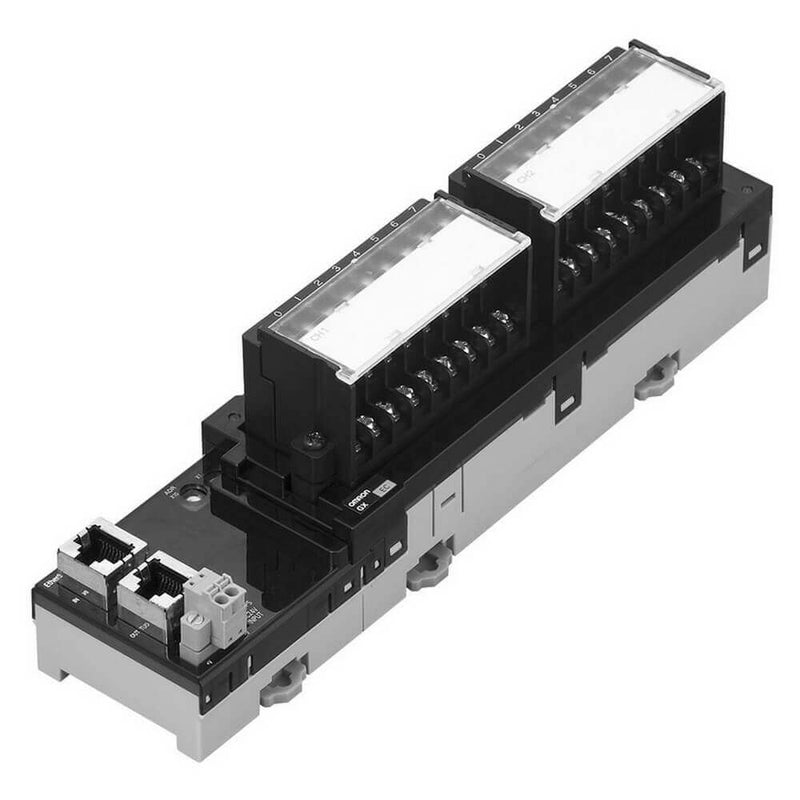

GX-EC0211 | Omron EtherCAT Encoder Input Unit, 2 Channels, 4 MHz, 24 VDC, Screw Terminal
- Regular price
- $1,554.00
- Sale price
- $1,554.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GX-EC0211
Description
The Omron GX-EC0211 is an EtherCAT-compatible encoder input unit designed to interface high-speed rotary encoders with Omron’s NX and GX series I/O systems. Supporting up to two encoder input channels at frequencies up to 4 MHz, it enables precise position and motion data acquisition for advanced automation and motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | GX-EC0211 |
| Subcategory | EtherCAT I/O Unit |
| Series | GX Series |
| Type of Module | Encoder Input Unit |
| Communication Port(s) | EtherCAT Slave |
| Number of Encoder Input Channels | 2 |
| Max Encoder Input Frequency | 4 MHz |
| Digital Input Type | Open Collector |
| Digital Output Type | None |
| Number of Status Inputs | 6 |
| Number of IOV (V+) Terminals | 12 |
| Number of IOG (V–) Terminals | 12 |
| Isolation Voltage | 600 VAC (between isolated circuits) |
| Insulation Resistance | 20 MΩ min. (at 500 VDC) |
| Supply Voltage | 24 VDC (20.4–26.4 VDC) |
| Connection Type | Screw terminals |
| Degree of Protection | IP20 |
| Mounting Type | DIN rail or panel mount |
| Product Height | 52 mm |
| Product Width | 215 mm |
| Product Depth | 68.9 mm |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –25°C to +70°C |
| Compliance | CE, RoHS |
| Application | Encoder feedback and motion synchronization via EtherCAT |
| Weight | Approx. 390 g |
Information About GX-EC0211
The GX-EC0211 is part of Omron’s GX I/O series, developed for distributed EtherCAT-based control architectures. This module serves as a dual-channel encoder input unit, capable of handling open-collector type digital encoder signals for motion monitoring and feedback. With a robust isolation voltage of 600 VAC between circuits and 20 MΩ insulation resistance, the GX-EC0211 ensures stable operation in electrically noisy industrial environments. The unit features screw terminal connections for secure wiring and supports six status inputs for advanced diagnostic feedback. Compact in design and compliant with IP20 protection, it provides efficient integration into control cabinets and EtherCAT automation systems.
Key Features:
- Dual Encoder Inputs: Supports up to 2 encoder channels for precise motion and position feedback.
- High-Speed Input Frequency: Handles encoder signals up to 4 MHz, suitable for high-resolution encoders.
- EtherCAT Communication: Functions as an EtherCAT slave device for real-time distributed motion control.
- Robust Electrical Isolation: 600 VAC isolation and 20 MΩ insulation for safe, noise-resistant performance.
- Multiple Status Inputs: Includes 6 status input channels for error monitoring or signal control.
- Secure Screw Terminals: Provides reliable wiring and easy maintenance access.
- Compact Housing: Space-efficient module with IP20 protection for panel mounting.
- Stable Power Operation: Operates on 24 VDC (±10%), compatible with standard industrial supplies.
The GX-EC0211 delivers the reliability and precision required for synchronized motion feedback and encoder interfacing in EtherCAT-based automation systems.
