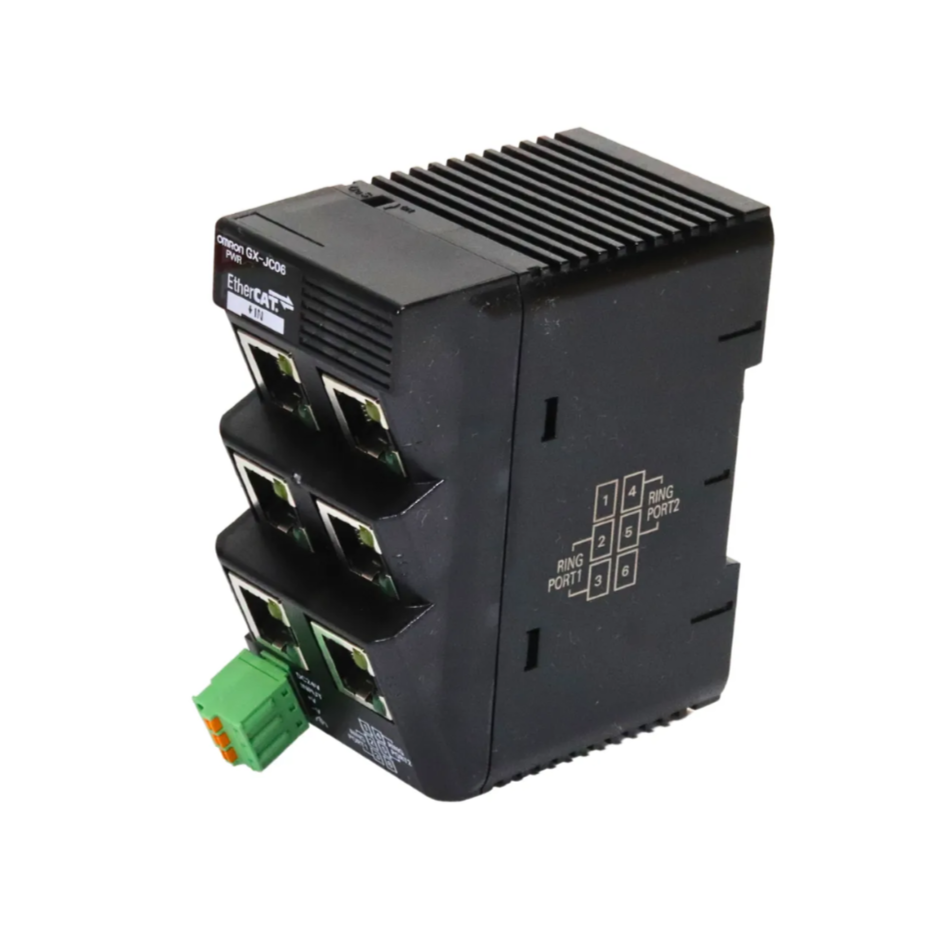

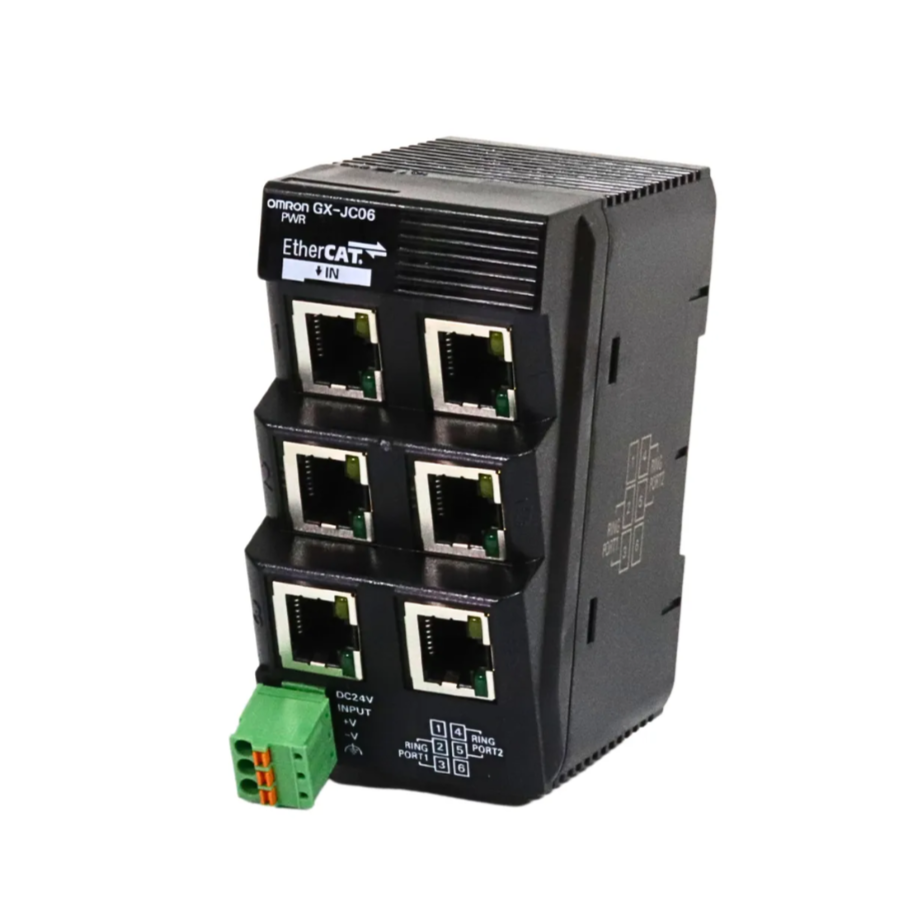

GX-JC06 | Omron 6-Port EtherCAT Module with 24VDC
- Regular price
- $708.00
- Sale price
- $708.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GX-JC06
Description
The Omron GX-JC06 6-port EtherCAT branching unit is a DIN-rail-mountable network module that provides star-type Ethernet topology in industrial automation networks. Operating from a 20.4 to 28.8 VDC supply, it supports six communication ports and offers reliable branching for EtherCAT-based systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Network & Communication Modules |
| Part Number | GX-JC06 |
| Subcategory | EtherCAT Branching Units |
| Number of Ports | 6 |
| Communication Protocol | EtherCAT |
| Power Supply Voltage | 20.4 to 28.8 VDC |
| Current Consumption | 170 mA (0.17 A) |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 25% to 85% RH (no condensation) |
| Storage Temperature | -25°C to 65°C |
| Storage Humidity | 25% to 85% RH (no condensation) |
| Dimensions | 48 × 78 × 90 mm |
| Mounting Type | DIN Rail |
| Standards | CE, UC1 |
| Weight | 220 g (0.485 lb) |
Information About GX-JC06
The GX-JC06 6-port EtherCAT branching unit is designed to simplify wiring and increase network flexibility in Omron automation environments. It enables star and tree topology configurations within EtherCAT networks and supports up to six ports for distributed connection. Operating on a 24 VDC nominal supply with 170 mA current draw, this compact module functions in ambient conditions from -10°C to 55°C and humidity levels up to 85% (non-condensing). Housed in a robust 48 × 78 × 90 mm enclosure and weighing 220 g, the unit complies with CE and UC1 standards for safe, high-performance communication.
Key Features:
-
Six-Port EtherCAT Branching: Supports star topology for up to six EtherCAT nodes, improving network layout and modularity.
-
24 VDC Power Supply Range: Operates within 20.4 to 28.8 VDC, suitable for standard industrial control panel voltages.
-
Compact DIN Rail Housing: Sized at 48×78×90 mm, it saves space while integrating easily into automation enclosures.
-
Low Power Consumption: Draws only 170 mA, contributing to efficient power distribution across devices.
-
Wide Environmental Tolerance: Operates in ambient temperatures from -10°C to 55°C and up to 85% humidity (non-condensing).
-
Standards Compliance: Meets CE and UC1 standards, ensuring safe, reliable use in industrial environments.
-
Durable Design: Engineered for long-term operation in automation networks with minimal maintenance requirements.
-
EtherCAT Compatibility: Seamlessly integrates into Omron EtherCAT-based control systems for high-speed, synchronized data exchange.
The GX-JC06 delivers the reliability and precision required for structured, high-performance Ethernet communication in industrial automation networks.
