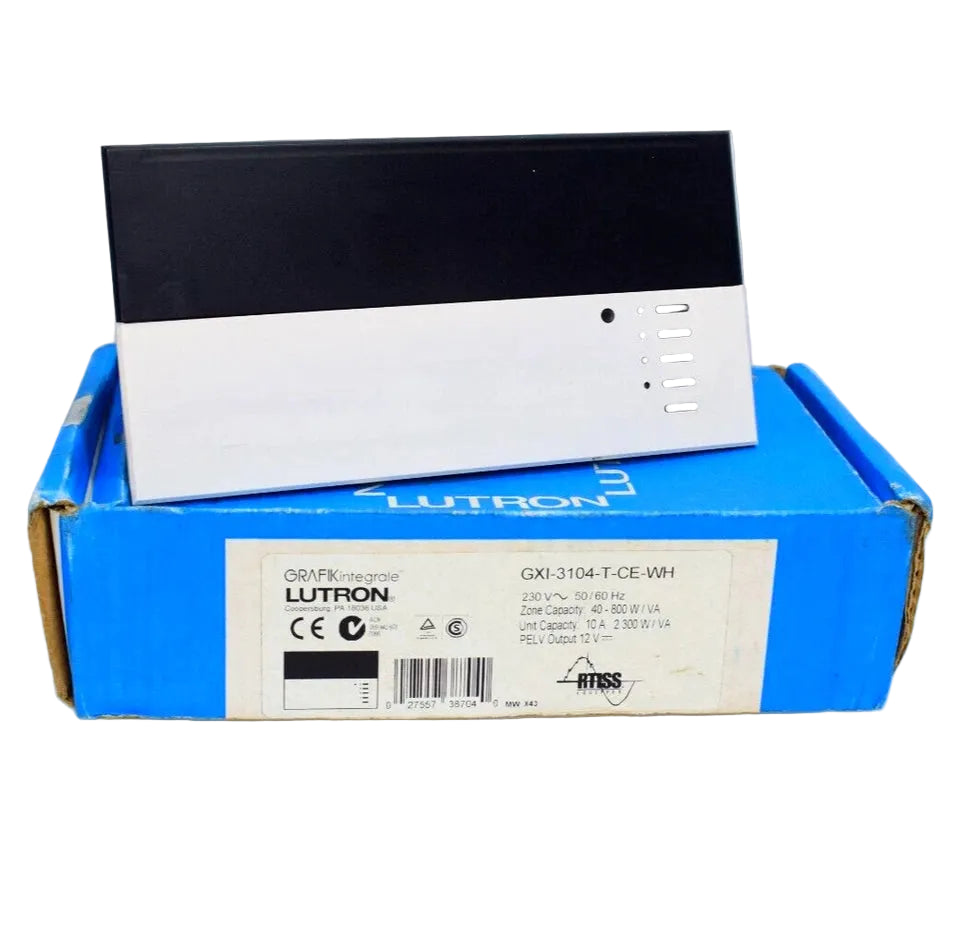

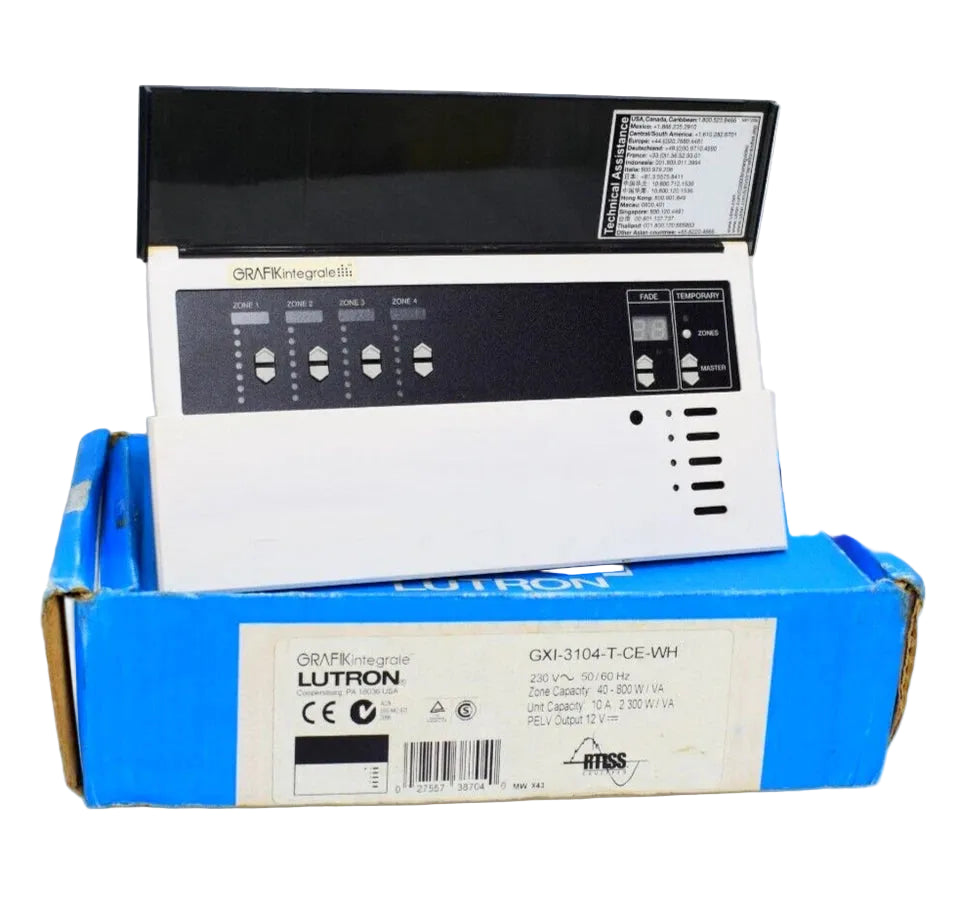

GXI-3104-T-CE-WH | Lutron 4-Zone 230V GRAFIK Integrale Scene Controller
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GXI-3104-T-CE-WH
Description
The Lutron GXI-3104-T-CE-WH is a 4-zone preset dimming control unit from the GRAFIK Integrale system designed for multi-zone lighting management in 230 V regions. It operates at 230 V, 50 Hz and supports a total load capacity of 10 A (up to 2300 W/VA). The unit enables scene-based lighting control with multiple dimming technologies for commercial and architectural applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | GXI-3104-T-CE-WH |
| Subcategory | Lighting Controller |
| Product Series | GRAFIK Integrale |
| Number of Zones | 4 |
| Input Voltage | 230 V~ |
| Frequency | 50 Hz |
| Total Load Capacity | 10 A (2300 W/VA max) |
| Zone Load Range | 40–800 W/VA per zone |
| Dimming Methods | Leading-edge, Trailing-edge, 0–10 V, DALI (broadcast) |
| Preset Scenes (Front Panel) | 4 plus Off |
| Total Scene Capacity | Up to 16 scenes |
| Fade Time Adjustment | 0–59 seconds or 1–60 minutes |
| Surge Protection | 6000 V / 3000 A |
| Color/Finish | White (WH) with translucent black cover (T) |
| Maximum Linked Units | Up to 8 via processor |
| Weight | 2 kg |
Information About GXI-3104-T-CE-WH
The GXI-3104-T-CE-WH is a CE-certified lighting scene controller manufactured by Lutron for use in European and other 230 V electrical systems. It provides control of four independent lighting zones and allows recall of preset scenes directly from the front panel, with additional scenes accessible through connected wallstations. The device supports leading-edge, trailing-edge, 0–10 V, and broadcast DALI dimming methods, offering compatibility with a wide range of lighting loads. It can be linked with up to eight control units via a processor to expand lighting control across multiple rooms or an entire floor.
Key Features:
-
4-Zone Control: Independently manages up to four lighting zones from a single unit.
-
230 V CE Operation: Designed for 230 V~, 50 Hz electrical systems in CE regions.
-
10 A Total Capacity: Supports up to 2300 W/VA combined load.
-
Multiple Dimming Protocols: Compatible with leading-edge, trailing-edge, 0–10 V, and broadcast DALI control.
-
Preset Scene Recall: Four preset scenes plus off accessible from the front panel.
-
Expanded Scene Storage: Up to 16 total scenes (including additional scenes via wallstations).
-
Adjustable Fade Times: Smooth transitions adjustable from 0–59 seconds or 1–60 minutes.
-
Surge Protection: Designed to withstand voltage surges up to 6000 V and current surges up to 3000 A.
The GXI-3104-T-CE-WH delivers the reliability and precision required for structured multi-zone lighting scene control systems.
