H2-CTRIO2 | Automation Direct DL205 High-Speed Counter & Pulse Output Module
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: H2-CTRIO2
Description

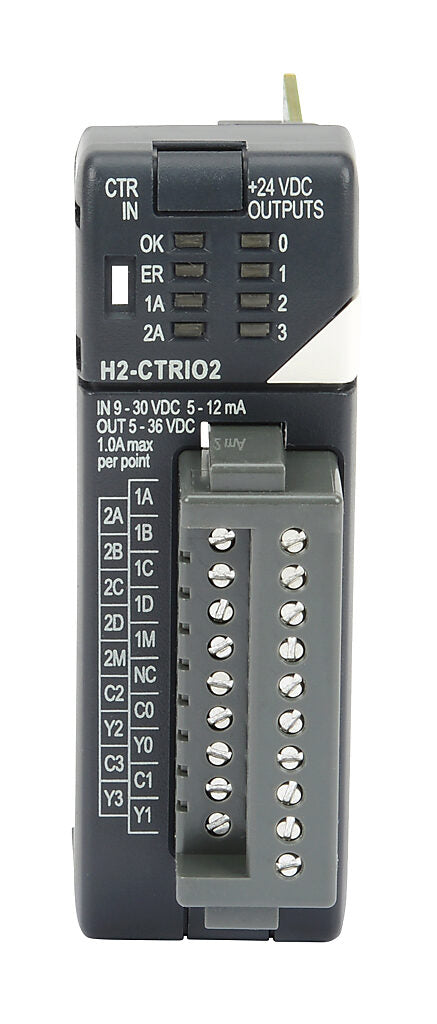

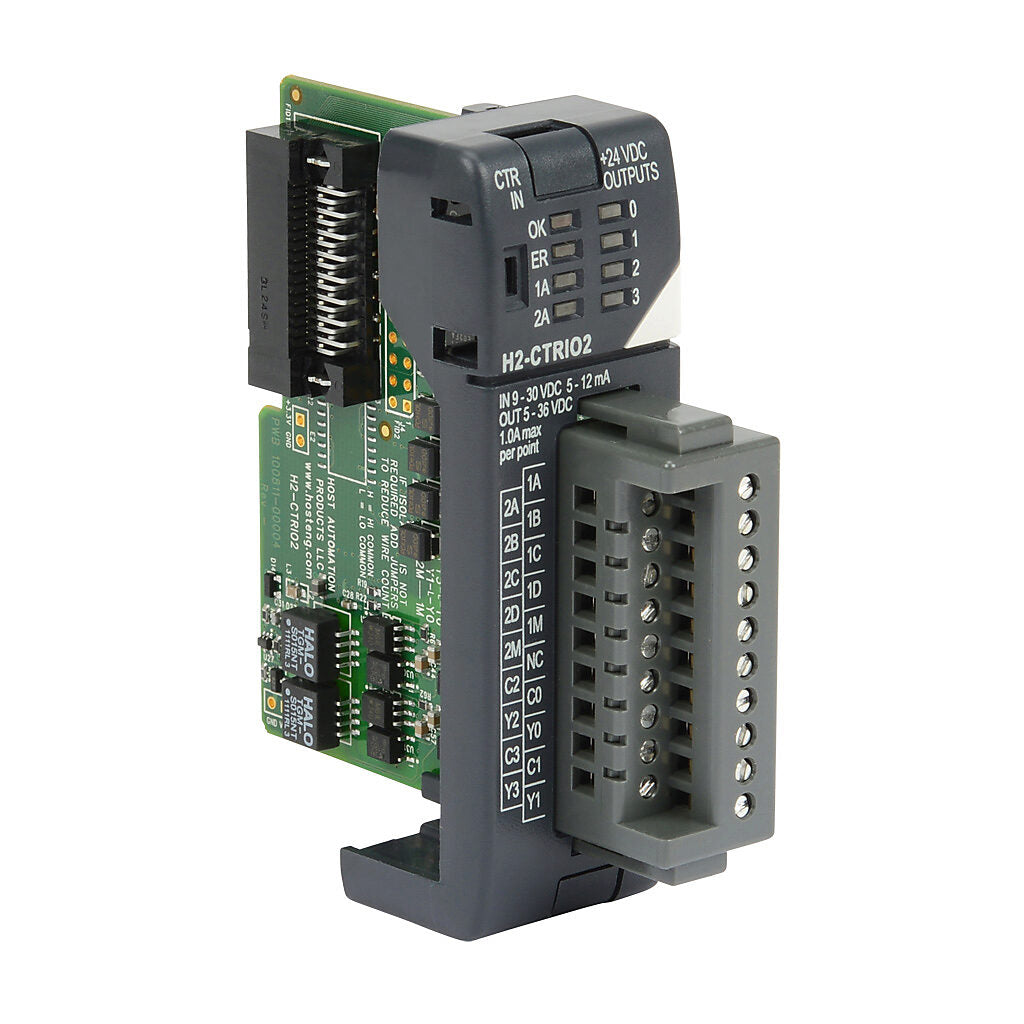

The Automation Direct H2-CTRIO2 is a DirectLOGIC DL205 high-speed pulse combo module designed for advanced motion and counting applications. It provides high-speed inputs and outputs up to 250 kHz for encoder feedback, pulse generation, and positioning control. This module enables precise measurement and motion control integration within DL205 PLC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Programmable Logic Controllers |
| Part Number | H2-CTRIO2 |
| Subcategory | High-Speed Counter / Pulse Modules |
| Series | DirectLOGIC DL205 |
| I/O Module Type | Pulse combo module |
| Maximum Switching Frequency | 250 kHz |
| High-Speed Input Points | 8 |
| Nominal Input Voltage | 12–24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Isolated Input Commons | 2 |
| Input Channels | 2 |
| Encoder Input Type | Push-pull (totem) |
| High-Speed Output Points | 4 |
| Nominal Output Voltage | 6–24 VDC |
| Discrete Output Type | Sinking/sourcing |
| Isolated Output Commons | 4 |
| Load Current | 1A per point |
| Output Channels | 2 |
| Pulse Output Types | NPN open collector, PNP open collector, push-pull |
| Counter Functions | Up to 4 up/down counters, 2 quadrature counters |
| Position Scaling | Supported for up, down, up/down, and quadrature counters |
| Measurement Functions | Interval, duration, and frequency measurement |
| Output Pulse Modes | PTO linear step/direction and CW/CCW |
| Axis Profiles | Relative/absolute, velocity, trapezoid, S-curve, homing, jogging |
| Programming Software | DirectSOFT v4.0 or later |
| Weight | 0.7 lb |
Information About H2-CTRIO2
The H2-CTRIO2 is a DirectLOGIC DL205 series pulse I/O combo module engineered for high-speed counting and motion control tasks. It features eight high-speed input points and four high-speed output points with support for multiple counter and pulse output configurations. Designed for 12–24 VDC operation, the module supports sinking and sourcing inputs and outputs with isolated commons for flexible wiring. Programmable through DirectSOFT v4.0 or later, it supports encoder interfacing, PTO control, position scaling, frequency measurement, and advanced axis profiles including trapezoidal and S-curve motion.
Key Features:
- High-Speed Switching Capability: Supports input frequencies up to 250 kHz for precise pulse detection.
- 8 High-Speed Inputs: Compatible with push-pull (totem) encoder signals and sinking/sourcing wiring.
- 4 High-Speed Outputs: Configurable as NPN, PNP, or push-pull pulse outputs.
- Advanced Counter Functions: Supports up to four up, down, or up/down counters and two quadrature counters.
- Motion Control Output Modes: Provides PTO linear step/direction and CW/CCW rotary pulse outputs.
- Axis Profile Support: Enables relative/absolute positioning, velocity mode, trapezoid, S-curve, homing, and jogging.
- Measurement Capabilities: Performs interval, duration, and frequency measurement functions.
- Table-Driven Logic: Supports up to 255 programmable limit switches and preset tables.
The H2-CTRIO2 delivers the reliability and precision required for high-speed counting, encoder feedback processing, and motion control applications.
Description
The Automation Direct H2-CTRIO2 is a DirectLOGIC DL205 high-speed pulse combo module designed for advanced motion and counting applications. It provides high-speed inputs and outputs up to 250 kHz for encoder feedback, pulse generation, and positioning control. This module enables precise measurement and motion control integration within DL205 PLC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Programmable Logic Controllers |
| Part Number | H2-CTRIO2 |
| Subcategory | High-Speed Counter / Pulse Modules |
| Series | DirectLOGIC DL205 |
| I/O Module Type | Pulse combo module |
| Maximum Switching Frequency | 250 kHz |
| High-Speed Input Points | 8 |
| Nominal Input Voltage | 12–24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Isolated Input Commons | 2 |
| Input Channels | 2 |
| Encoder Input Type | Push-pull (totem) |
| High-Speed Output Points | 4 |
| Nominal Output Voltage | 6–24 VDC |
| Discrete Output Type | Sinking/sourcing |
| Isolated Output Commons | 4 |
| Load Current | 1A per point |
| Output Channels | 2 |
| Pulse Output Types | NPN open collector, PNP open collector, push-pull |
| Counter Functions | Up to 4 up/down counters, 2 quadrature counters |
| Position Scaling | Supported for up, down, up/down, and quadrature counters |
| Measurement Functions | Interval, duration, and frequency measurement |
| Output Pulse Modes | PTO linear step/direction and CW/CCW |
| Axis Profiles | Relative/absolute, velocity, trapezoid, S-curve, homing, jogging |
| Programming Software | DirectSOFT v4.0 or later |
| Weight | 0.7 lb |
Information About H2-CTRIO2
The H2-CTRIO2 is a DirectLOGIC DL205 series pulse I/O combo module engineered for high-speed counting and motion control tasks. It features eight high-speed input points and four high-speed output points with support for multiple counter and pulse output configurations. Designed for 12–24 VDC operation, the module supports sinking and sourcing inputs and outputs with isolated commons for flexible wiring. Programmable through DirectSOFT v4.0 or later, it supports encoder interfacing, PTO control, position scaling, frequency measurement, and advanced axis profiles including trapezoidal and S-curve motion.
Key Features:
- High-Speed Switching Capability: Supports input frequencies up to 250 kHz for precise pulse detection.
- 8 High-Speed Inputs: Compatible with push-pull (totem) encoder signals and sinking/sourcing wiring.
- 4 High-Speed Outputs: Configurable as NPN, PNP, or push-pull pulse outputs.
- Advanced Counter Functions: Supports up to four up, down, or up/down counters and two quadrature counters.
- Motion Control Output Modes: Provides PTO linear step/direction and CW/CCW rotary pulse outputs.
- Axis Profile Support: Enables relative/absolute positioning, velocity mode, trapezoid, S-curve, homing, and jogging.
- Measurement Capabilities: Performs interval, duration, and frequency measurement functions.
- Table-Driven Logic: Supports up to 255 programmable limit switches and preset tables.
The H2-CTRIO2 delivers the reliability and precision required for high-speed counting, encoder feedback processing, and motion control applications.
