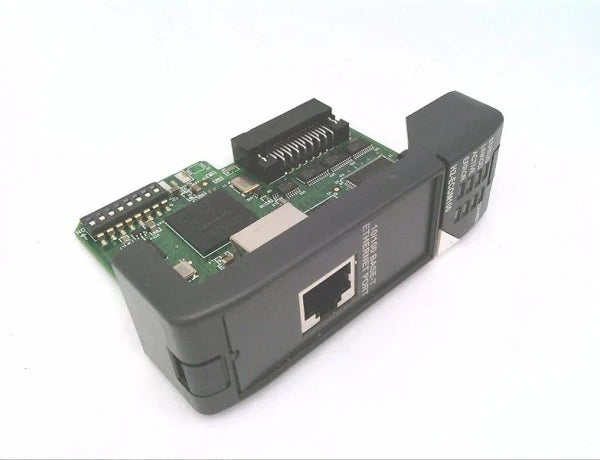

H2-ECOM100 | Automation Direct DL205 Ethernet Communication Module With Modbus TCP and 10/100Base-T Networking
- Regular price
- $795.00
- Sale price
- $795.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H2-ECOM100
Description
The Automation Direct H2-ECOM100 is a high-speed Ethernet communication module designed for DirectLOGIC DL205 PLC systems. It provides 10/100Base-T networking capability and supports peer-to-peer communications, allowing any connected PLC to initiate data exchanges without the need for a dedicated network master. With support for Modbus TCP, TCP/IP, UDP/IP, and IPX protocols, the H2-ECOM100 enables efficient data transfer for industrial automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Communication Module |
| Part Number | H2-ECOM100 |
| Subcategory | DL205 Ethernet Communication Module |
| Product Type | DirectLOGIC DL205 Communication Module |
| Number of Ports | 1 Ethernet Port |
| Port Type | RJ45, 10/100Base-T |
| Protocols Supported | Modbus TCP Master/Slave, TCP/IP, UDP/IP, IPX |
| PLC Compatibility | D2-240, D2-250(-1), D2-260, D2-262, Do-more H2 CPUs |
| Link Distance | 100 meters |
| Data Transfer Rate | Up to 100 Mbps |
| Diagnostic Indicators | STATUS, LINKGO, ACTIVE, ERROR, 100MBIT |
| Configuration Tools | HTML configuration, DirectSOFT, SDK drivers |
| Power Consumption | 300 mA at 5 VDC |
| Email Support | SMTP via IBox instruction |
| Application Use | PLC networking, HMI/SCADA communication, peer-to-peer control |
Information About H2-ECOM100
The H2-ECOM100 is part of the DirectLOGIC DL205 communication platform and delivers enhanced Ethernet connectivity for PLC-to-PLC, HMI, MES, and SCADA applications. It provides a single RJ45 Ethernet port with 10/100Base-T capability, supporting communication instructions such as Read from Network (RX) and Write to Network (WX) for seamless distributed control. The module includes diagnostic LED indicators for link, activity, status, and speed, enabling quick troubleshooting in industrial environments. Compatible with D2-240, D2-250(-1), D2-260, D2-262, and Do-more H2 CPUs, the H2-ECOM100 offers simple configuration through HTML setup pages and DirectSOFT programming software.
Key Features
- High-speed peer-to-peer networking: Allows any PLC to initiate communication without a network master.
- 10/100Base-T Ethernet port: Provides fast data exchange using a standard RJ45 connection.
- Multi-protocol support: Compatible with Modbus TCP (Master/Slave), TCP/IP, UDP/IP, IPX, and DHCP.
- Wide PLC compatibility: Works with multiple DL205 CPUs and Do-more H2 series controllers.
- Diagnostic LED indicators: Includes STATUS, LINKGO, ACTIVE, ERROR, and 100MBIT LEDs for system feedback.
- 100-meter link distance: Supports standard Ethernet cable lengths for industrial networks.
- Email capability: Can send SMTP emails using the “ECOM100 Send EMail IBox” instruction.
- Simple configuration: Accessible via HTML setup pages and DirectSOFT software with free driver support.
The H2-ECOM100 delivers the reliability and precision required for Ethernet networking, PLC communications, and distributed automation systems.
