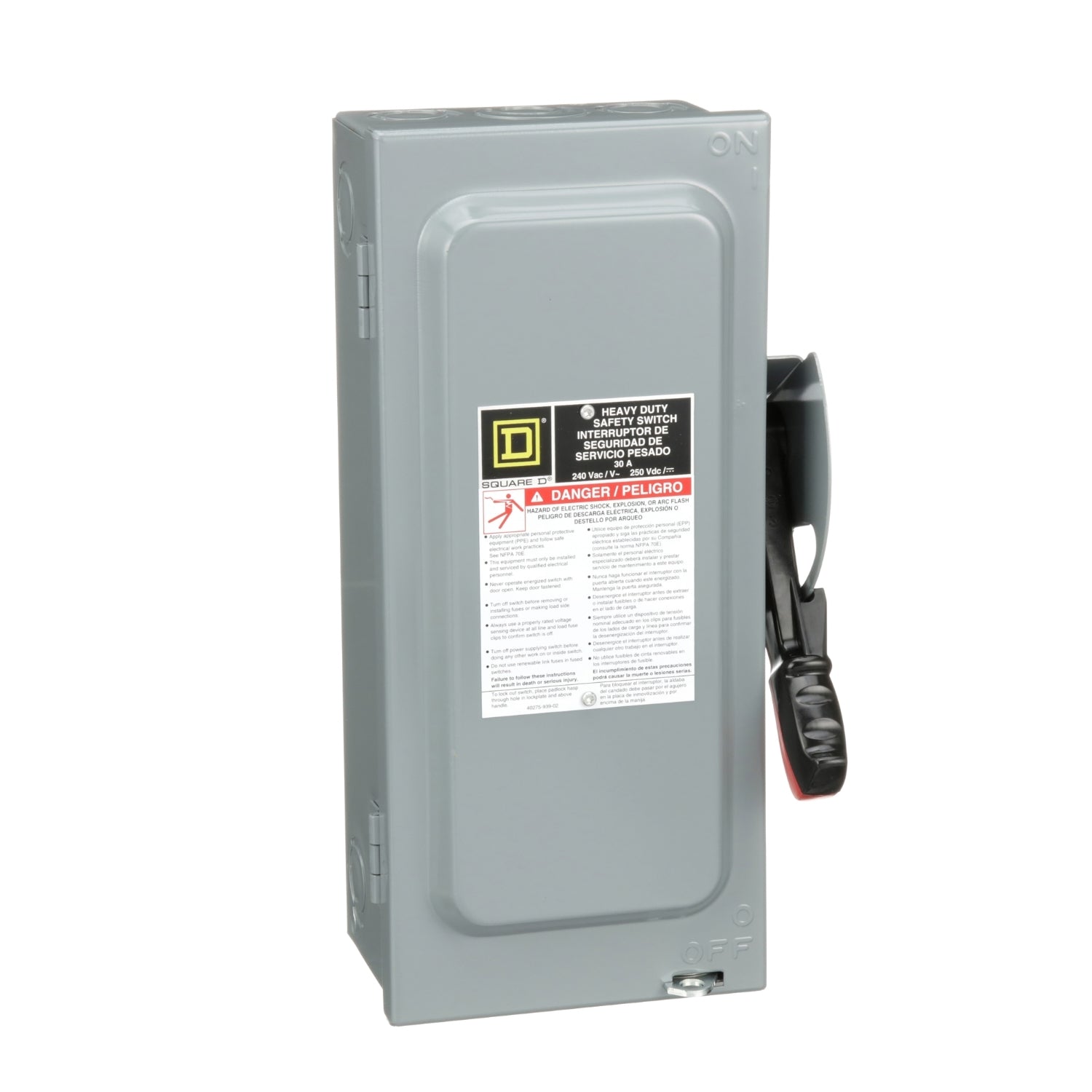

H221N | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $122.00
- Sale price
- $122.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H221N
Description
The H221N Safety Switch, part of the Square D™ by Schneider Electric brand, exemplifies durability and reliability, engineered to withstand challenging environments. Designed to surpass NEMA KS-1 and UL98 standards, F Series safety switches offer superior mechanical endurance.
Featuring a quick-make, quick-break operating mechanism and a dual cover interlock, this safety switch ensures swift and secure operation. The color-coded indicator handle enhances visibility and ease of use.
With a rated current of 30 A, this Single Throw Safety Switch is UL listed with a NEMA 1 rating, providing robust protection. It operates at voltage ratings of 240VAC and 250VDC, catering to diverse electrical systems.
Technical Specifications
|
Part # |
H221N |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
3 phase |
|
Number of Poles |
2 |
|
Current Rating |
30 A |
|
Voltage Rating |
250 V DC, 240 V AC |
|
Short-circuit current |
10 kA for H or K, 200 kA for R or J |
|
Fuse type |
H or K, R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring configuration |
3-wire |
|
Wire Size |
AWG 12...AWG 6 aluminium, AWG 14...AWG 6 copper |
|
Depth |
4.88 in (123.95 mm) |
|
Width |
6.5 in (165.10 mm) |
|
Height |
14.6 in (370.84 mm) |
|
Net Weight |
8.82 lb(US) (4 kg) |
Information About H221N
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch, model H221N, is engineered to endure demanding conditions while delivering exceptional performance. Part of the F Series, these safety switches surpass the mechanical endurance requirements outlined by NEMA KS-1 or UL98 standards.
Equipped with a quick-make, quick-break operating mechanism, a dual cover interlock, and a color-coded indicator handle, this safety switch ensures reliable operation and user safety. Designed as a Single Throw Safety Switch, it boasts a rated current of 30 A and holds UL listing with a NEMA 1 protection rating.
Operating with voltage ratings of 240VAC and 250VDC, the switch features a steel enclosure with a factory-installed neutral. Its fusible disconnect offers a short circuit current rating ranging from 10 kA to 200 kA. Compatible with a variety of fuse types including H, J, K, L, and R, this safety switch is suitable for a range of applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
