H323N | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H323N
Description

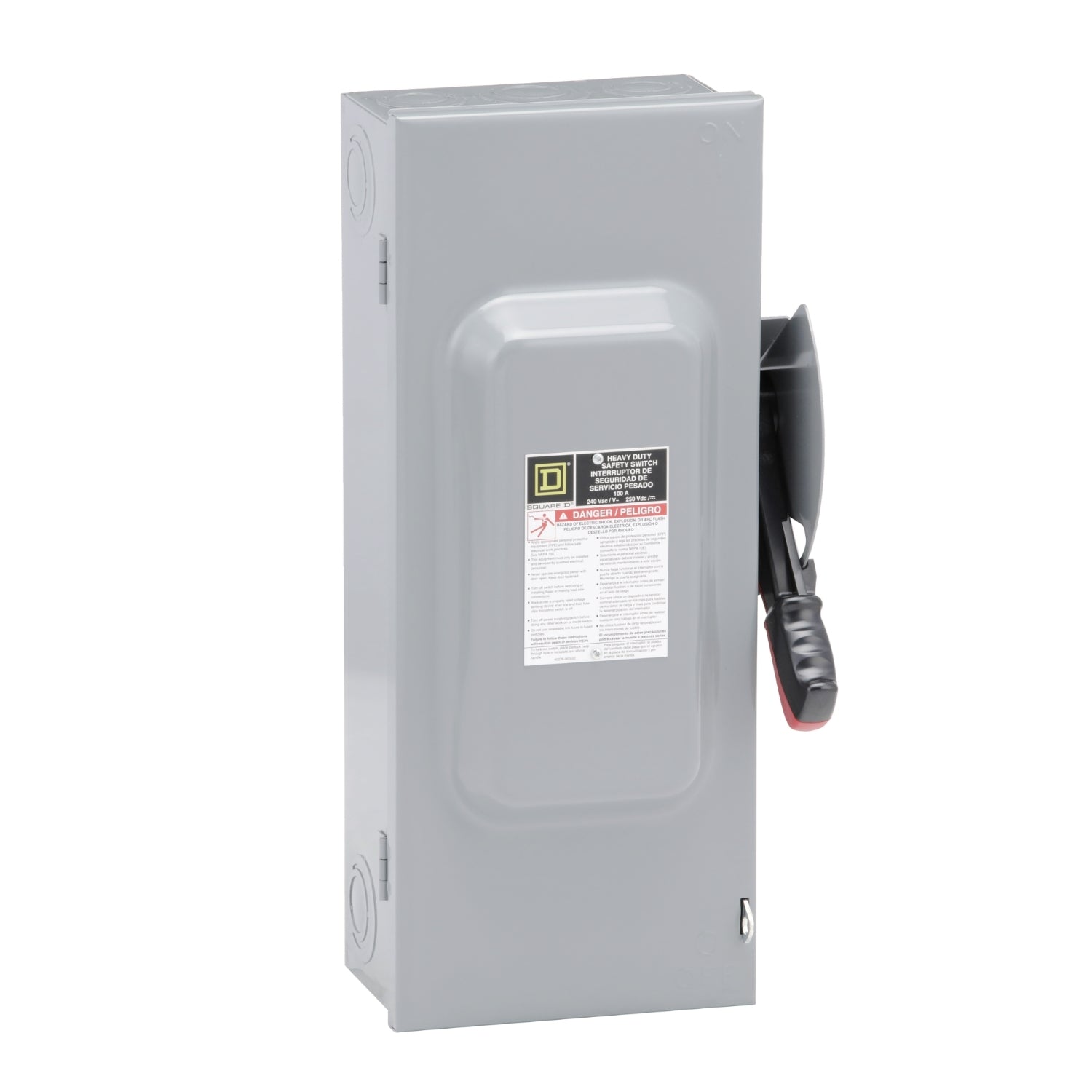

The H323N by Square D™ from Schneider Electric is a robust Heavy Duty Safety Switch designed for demanding environments, providing exceptional performance and durability. This Fusible Safety Switch is part of the F Series, exceeding NEMA KS-1 and UL98 standards for mechanical endurance. Featuring a quick-make, quick-break operating mechanism, it includes a dual cover interlock and a color-coded indicator handle for enhanced safety.
Technical Specifications
|
Part # |
H323N |
|
Category |
Panel Accessories |
|
Subcategory |
Disconnect Switch Product |
|
Disconnect Type |
Fusible disconnect |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
100 A |
|
Voltage Rating |
250 V DC |
|
Short-circuit Current |
10 kA (H or K), 200 kA (R or J) |
|
Fuse Type |
H or K, R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
4-wire (3PH + G) |
|
Wire Size |
AWG 12...AWG 1/0 aluminium |
|
Depth |
6.38 in (162.05 mm) |
|
Width |
8.5 in (215.90 mm) |
|
Height |
21.25 in (539.75 mm) |
|
Net Weight |
19.84 lb(US) (9 kg) |
Information About H323N
The H323N Safety Switch, part of the Square D™ by Schneider Electric brand, is a heavy-duty, fusible disconnect designed to deliver robust performance in demanding environments. Engineered to exceed NEMA KS-1 and UL98 standards, F Series safety switches offer exceptional mechanical endurance. Key features include a quick-make, quick-break operating mechanism for swift circuit interruption, a dual cover interlock for added safety, and a color-coded indicator handle for clear operational status indication.
This Single Throw Safety Switch is rated for a continuous current of 100A and carries UL listing with a NEMA 1 protection rating, suitable for indoor use. It operates across 3 phases with voltage ratings of 240VAC and 250VDC. The enclosure, constructed from durable steel, includes a factory-installed neutral for ease of installation and compliance.
The safety switch is equipped with a fusible disconnect capability, offering a short circuit current rating ranging from 10kA to 200kA, ensuring effective protection against electrical faults. It accommodates a variety of fuse types including H, J, K, L, and R. The unit is designed for surface mounting, providing flexibility in installation configurations.
