H324NRB | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $1,150.00
- Sale price
- $1,150.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H324NRB
Description

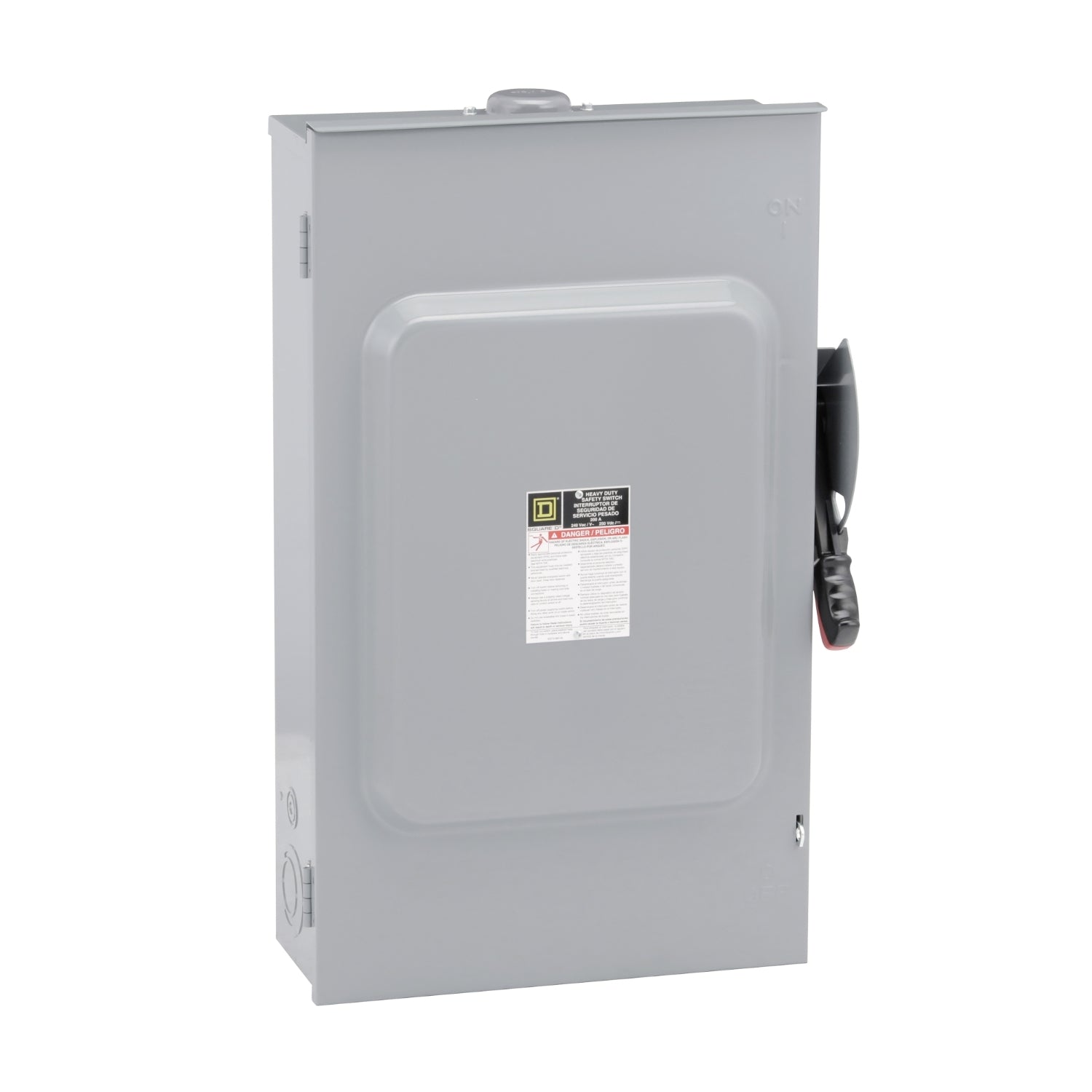

The H324NRB is a Square D™ by Schneider Electric brand Heavy Duty Safety Switch designed for robust performance in demanding environments. This fusible safety switch is built with durability in mind, exceeding NEMA KS-1 and UL98 standards for mechanical endurance. It features a quick-make, quick-break operating mechanism, dual cover interlock, and a color-coded indicator handle for enhanced safety.
Rated at 200A, this 3-pole switch is UL listed with a NEMA 3R rating, ensuring protection against weather elements. It operates at voltages of 240VAC and 250VDC. The enclosure, constructed from galvannealed steel, includes a factory-installed neutral. The safety switch offers a short circuit current rating ranging from 10kA to 200kA and is compatible with H, J, K, L, and R fuse types.
Technical Specifications
|
Part # |
H324NRB |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product Type |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
200 A |
|
Voltage Rating |
250 V DC, 240 V AC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Short-circuit Current |
10 kA for H or K, 200 kA for R or J |
|
Fuse Type |
H or K, R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
4-wire (3PH + G) |
|
Wire Size |
AWG 6...250 kcmil copper or aluminium |
|
Tightening Torque |
275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil) |
|
Depth |
8.5 in (215.90 mm) |
|
Width |
17.25 in (438.15 mm) |
|
Height |
29.25 in (742.95 mm) |
|
Net Weight |
56.50 lb (25.63 kg) |
Information About H324NRB
The H324NRB from Square D™ by Schneider Electric is a Heavy Duty Safety Switch designed to excel in demanding environments, boasting robust reliability and operational resilience. Part of the F Series, these safety switches surpass the mechanical endurance standards set by NEMA KS-1 and UL98, ensuring prolonged durability under rigorous conditions. Featuring a quick-make, quick-break operating mechanism, dual cover interlock, and color-coded indicator handle, this Single Throw Safety Switch is engineered for intuitive operation and enhanced safety.
This switch is rated for a continuous current of 200A and is UL listed with a NEMA 3R enclosure rating, signifying its suitability for outdoor use with protection against rain, sleet, and ice formation. It operates across 240VAC and 250VDC voltage ratings, accommodating diverse electrical applications. Constructed from galvannealed steel, the enclosure incorporates a factory-installed neutral, streamlining installation and ensuring compatibility with service entrance equipment.
The fusible disconnect feature of the H324NRB offers a broad short circuit current rating ranging from 10kA to 200kA, reinforcing its capability to manage and mitigate electrical faults effectively. This safety switch supports a variety of fuse types including H, J, K, L, and R, providing flexibility in application-specific fuse configurations. Designed for surface mounting, it facilitates straightforward installation and accessibility for maintenance tasks.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The H324NRB is a Square D™ by Schneider Electric brand Heavy Duty Safety Switch designed for robust performance in demanding environments. This fusible safety switch is built with durability in mind, exceeding NEMA KS-1 and UL98 standards for mechanical endurance. It features a quick-make, quick-break operating mechanism, dual cover interlock, and a color-coded indicator handle for enhanced safety.
Rated at 200A, this 3-pole switch is UL listed with a NEMA 3R rating, ensuring protection against weather elements. It operates at voltages of 240VAC and 250VDC. The enclosure, constructed from galvannealed steel, includes a factory-installed neutral. The safety switch offers a short circuit current rating ranging from 10kA to 200kA and is compatible with H, J, K, L, and R fuse types.
Technical Specifications
|
Part # |
H324NRB |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product Type |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
200 A |
|
Voltage Rating |
250 V DC, 240 V AC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Short-circuit Current |
10 kA for H or K, 200 kA for R or J |
|
Fuse Type |
H or K, R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
4-wire (3PH + G) |
|
Wire Size |
AWG 6...250 kcmil copper or aluminium |
|
Tightening Torque |
275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil) |
|
Depth |
8.5 in (215.90 mm) |
|
Width |
17.25 in (438.15 mm) |
|
Height |
29.25 in (742.95 mm) |
|
Net Weight |
56.50 lb (25.63 kg) |
Information About H324NRB
The H324NRB from Square D™ by Schneider Electric is a Heavy Duty Safety Switch designed to excel in demanding environments, boasting robust reliability and operational resilience. Part of the F Series, these safety switches surpass the mechanical endurance standards set by NEMA KS-1 and UL98, ensuring prolonged durability under rigorous conditions. Featuring a quick-make, quick-break operating mechanism, dual cover interlock, and color-coded indicator handle, this Single Throw Safety Switch is engineered for intuitive operation and enhanced safety.
This switch is rated for a continuous current of 200A and is UL listed with a NEMA 3R enclosure rating, signifying its suitability for outdoor use with protection against rain, sleet, and ice formation. It operates across 240VAC and 250VDC voltage ratings, accommodating diverse electrical applications. Constructed from galvannealed steel, the enclosure incorporates a factory-installed neutral, streamlining installation and ensuring compatibility with service entrance equipment.
The fusible disconnect feature of the H324NRB offers a broad short circuit current rating ranging from 10kA to 200kA, reinforcing its capability to manage and mitigate electrical faults effectively. This safety switch supports a variety of fuse types including H, J, K, L, and R, providing flexibility in application-specific fuse configurations. Designed for surface mounting, it facilitates straightforward installation and accessibility for maintenance tasks.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
