H325NR | Schneider Electric 400A Heavy Duty Fusible NEMA 3R Safety Switch
- Regular price
- $2,694.00
- Sale price
- $2,694.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H325NR
Description

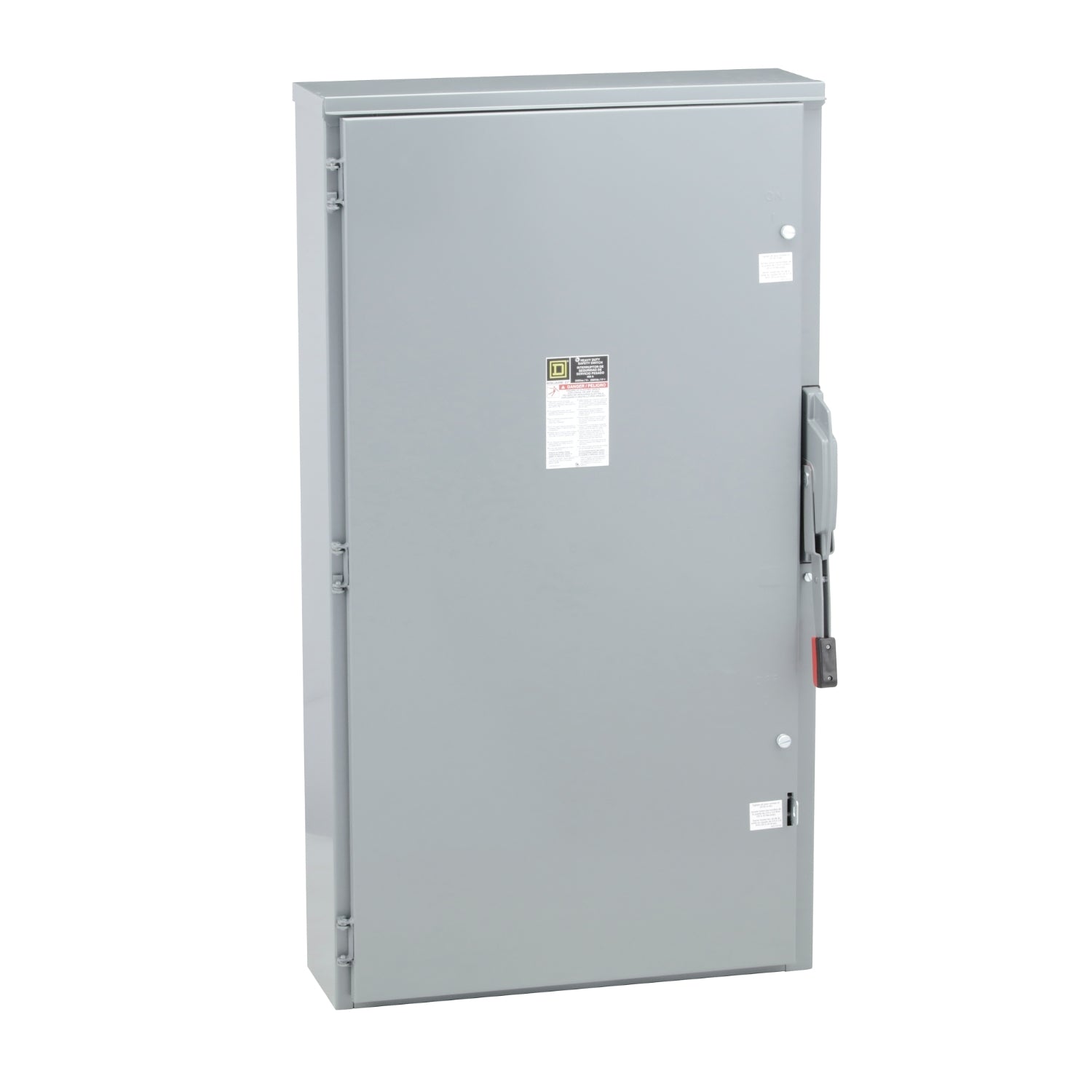

The Schneider Electric H325NR is a heavy-duty fusible safety switch designed to provide secure manual disconnect capability for high-current industrial circuits. Its NEMA 3R steel enclosure protects internal components from rain, sleet, and ice, ensuring dependable outdoor operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | H325NR |
| Category | Electrical Products |
| Subcategory | Safety Switch |
| Actuator Type | Handle |
| Amperage Rating | 400 A |
| Contact Form | TPST |
| Dimensions | 27.88 in W × 10.13 in D × 50.31 in H |
| Enclosure Type | NEMA 3R |
| Finish | Hot Dipped Galvanized / Painted |
| Horsepower Rating | 50 hp / 125 hp |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | 1 / 2 / 3 |
| Series | E5 Series |
| Short Circuit Rating | 200 kA |
| Temperature Rating | -22 to 104 °F |
| Terminal Type | Lug |
| Type | Heavy Duty Fusible Iceproof Rainproof Sleetproof |
| Voltage Rating | 240 / 250 VAC / VDC |
| Color | Gray |
| Material | Steel |
| Mounting Type | Surface Mounted |
Information About H325NR
The H325NR is a fusible heavy-duty safety switch from the Schneider Electric E5 Series engineered for demanding industrial disconnect applications. It incorporates a TPST contact configuration and a 400A current rating, supporting high-load three-phase circuits across a variety of voltage conditions. The steel NEMA 3R enclosure withstands rain, sleet, and ice, making this switch suitable for outdoor installations requiring environmental durability. With a wide operating temperature range and a galvanized painted finish, the switch ensures long-term performance in harsh industrial environments.
Key Features
- Heavy-duty fusible design: Supports high-current industrial disconnect operations with robust TPST contacts.
- NEMA 3R enclosure: Protects against rain, sleet, and ice for dependable outdoor performance.
- 400A current capability: Handles large electrical loads in demanding three-phase systems.
- Steel construction: Provides strong mechanical durability and corrosion resistance.
- Handle actuator: Allows manual operation for safe circuit isolation and maintenance.
- High short-circuit rating: Rated at 200 kA to withstand severe fault conditions.
- Wide temperature tolerance: Operates reliably from -22 to 104 °F in harsh environments.
- Surface mounting: Enables stable installation on walls or structures in industrial facilities.
The H325NR delivers the reliability and precision required for safe, high-capacity disconnecting operations in rugged industrial and outdoor electrical systems.
