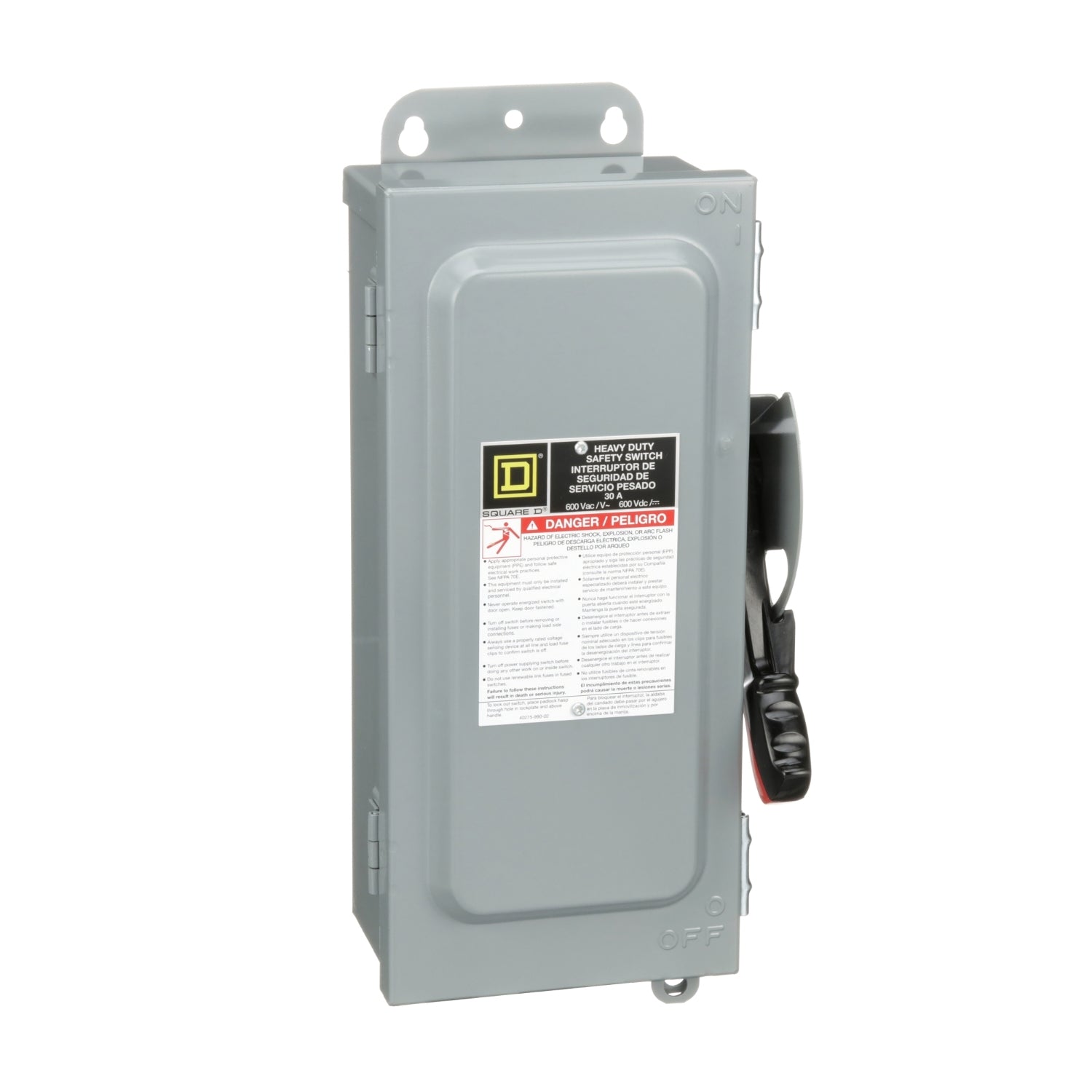

H361AWK | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $654.00
- Sale price
- $654.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H361AWK
Description
The Square D™ by Schneider Electric brand offers the H361AWK Heavy Duty Safety Switch, designed to withstand demanding conditions with high reliability. Featuring a Fusible configuration, it is capable of handling 30A current across 3 wires and 3 poles, supporting up to 20HP motors at 600V AC/DC operational voltage.
Engineered to exceed NEMA KS-1 and UL98 standards, this safety switch demonstrates exceptional mechanical endurance. Its quick-make, quick-break operating mechanism, dual cover interlock, and color-coded indicator handle enhance operational safety and efficiency.
Technical Specifications
|
Part # |
H361AWK |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Single Throw Safety Switch |
Yes |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
30 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R/12 galvannealed steel |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire (3P) |
|
Depth |
4.96 in (125.98 mm) |
|
Width |
7.55 in (191.77 mm) |
|
Height |
14.6 in (370.84 mm) |
|
Net Weight |
11.02 lb (US) (5 kg) |
Information About H361AWK
The H361AWK Safety Switch, part of the Square D™ by Schneider Electric brand, is a Heavy Duty, Fusible disconnect designed to operate reliably in demanding conditions. This safety switch is engineered to exceed standard mechanical endurance levels outlined by NEMA KS-1 or UL98 standards. Its robust construction and quick-make, quick-break operating mechanism ensure efficient and safe performance.
Featuring a Single Throw configuration, this safety switch has a rated current of 30A and is UL listed with a NEMA 3R/12 rating, providing protection against environmental elements. With three poles, it supports 3-phase electrical systems and offers operational voltage ratings of up to 600V AC/DC.
Constructed from galvannealed steel, the enclosure provides durability and strength. Notably, it does not include a factory-installed neutral connection. This fusible disconnect boasts a short circuit current rating ranging from 10kA to 200kA, ensuring effective protection against electrical faults.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
