H361DS | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H361DS
Description

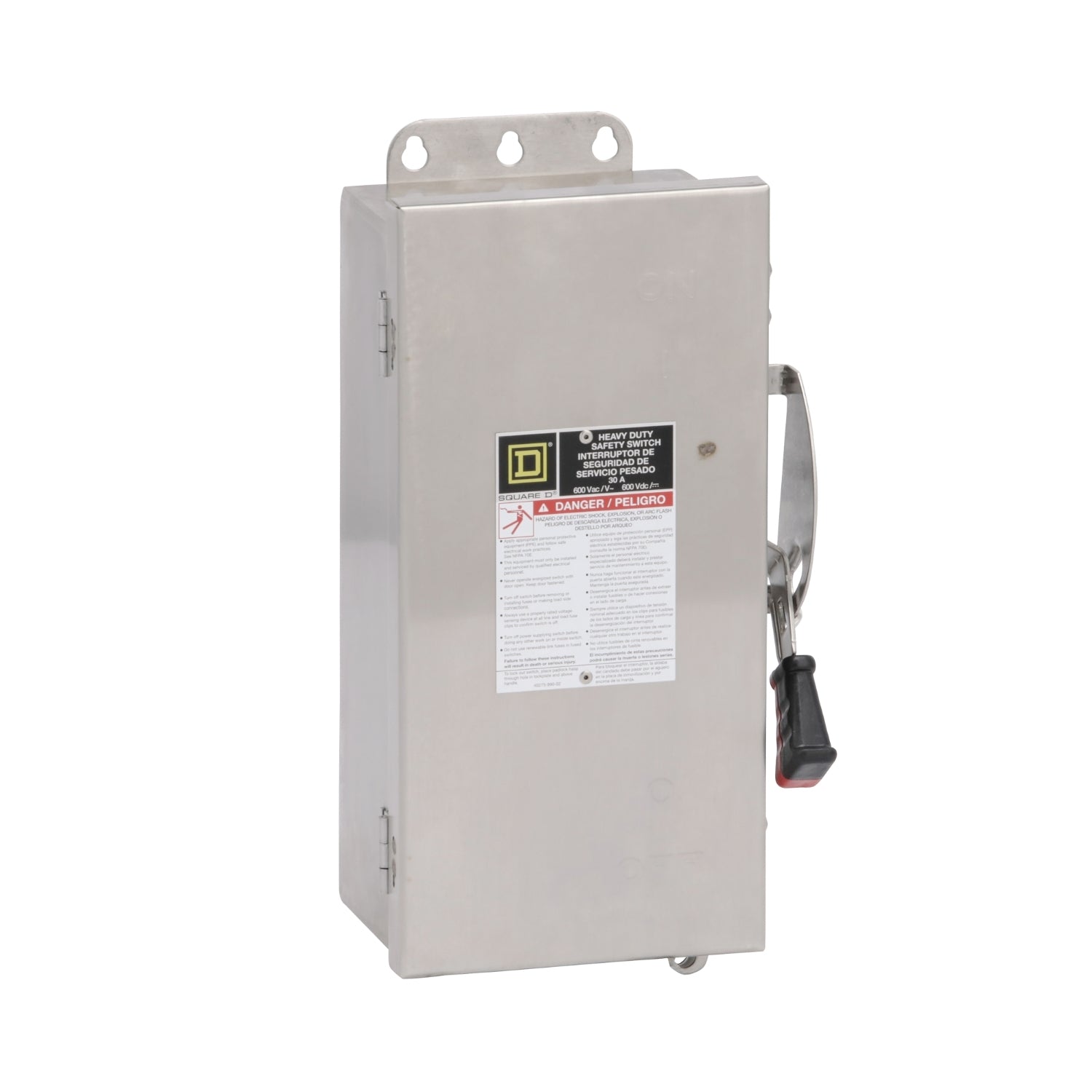

The H361DS is a heavy-duty safety switch manufactured by Square D™ by Schneider Electric. It is designed for high reliability and performance under demanding conditions. The safety switch has a rated current of 30A and supports 3-wire, 3-pole configurations. It operates at 600V AC/DC with a power rating of 20HP. The device is UL listed and has a NEMA 4, 4X, and 5 rating, ensuring protection against various environmental factors. The enclosure is constructed from 304 stainless steel. The H361DS features a quick-make, quick-break mechanism, dual cover interlock, and color-coded indicator handle. It does not include a neutral.
Technical Specifications
|
Part Number |
H361DS |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
30 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 4/4X/5 stainless steel 304 |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire (3P) |
|
Depth |
5.11 in (129.79 mm) |
|
Width |
8.67 in (220.22 mm) |
|
Height |
14.93 in (379.22 mm) |
|
Net Weight |
13.23 lb (6 kg) |
Information About H361DS
The H361DS Safety Switch is a heavy-duty, fusible disconnect device designed for industrial and commercial applications. It is manufactured by Square D™ by Schneider Electric, a brand known for its durable and reliable electrical products. This safety switch is specifically engineered to deliver exceptional performance under demanding conditions.
The H361DS features a single throw mechanism, allowing for straightforward operation and dependable disconnect capabilities. It is rated for a current of 30A and can handle operational voltages of up to 600V AC/DC. This makes it suitable for a variety of high-power applications. The switch is designed with three poles and a three-wire configuration, ensuring compatibility with a broad range of electrical systems.
One of the standout features of the H361DS is its high level of mechanical endurance, which exceeds the requirements set by NEMA KS-1 and UL98 standards. This ensures long-lasting performance and reliability in heavy-duty environments. The safety switch is equipped with a quick-make, quick-break operating mechanism, which enhances its safety and operational efficiency. Additionally, it includes a dual cover interlock and a color-coded indicator handle for improved user safety and ease of use.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
