Product Description P/N: H362
Description

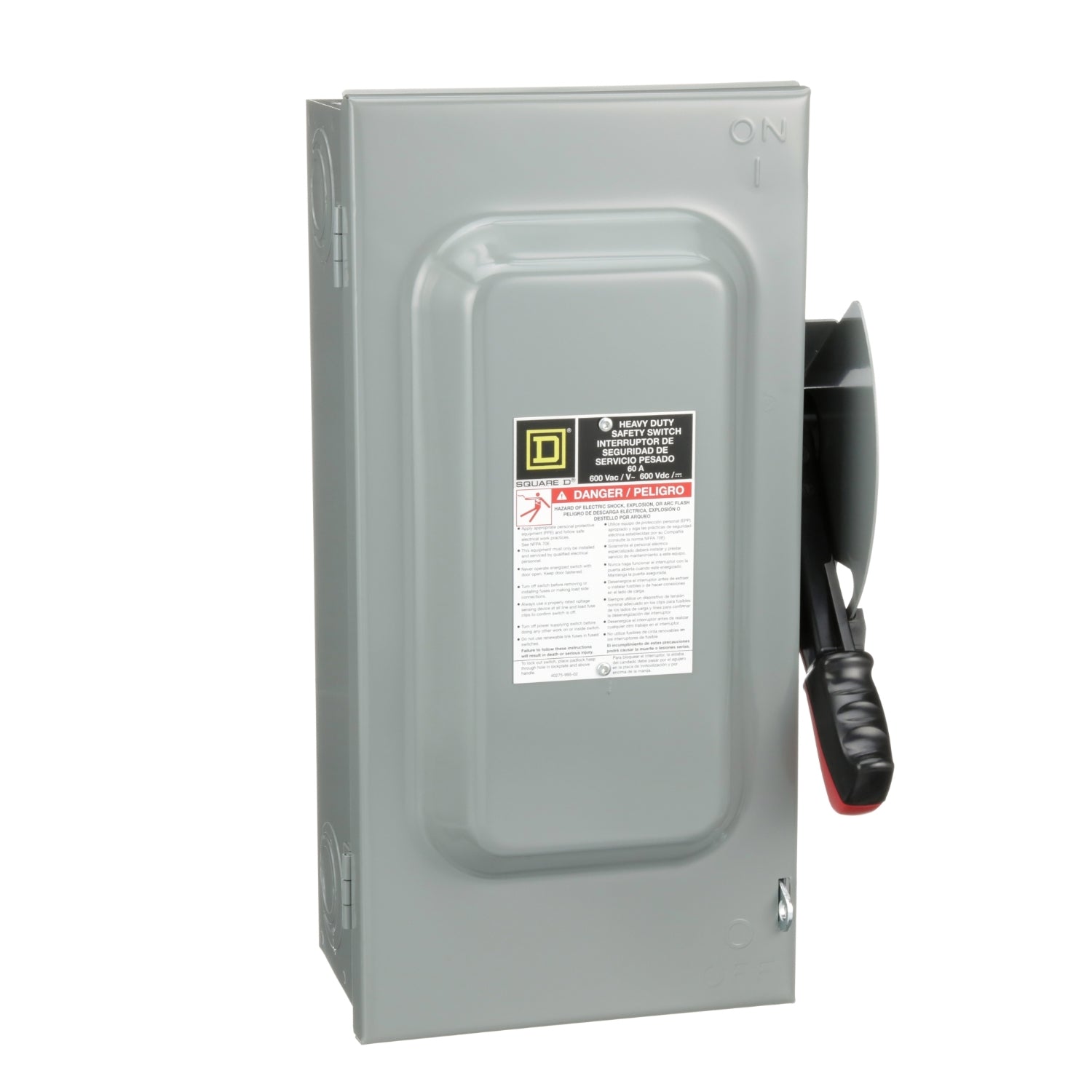

The H362 is a Safety Switch manufactured by the Square D™ brand, part of Schneider Electric. It is a Heavy Duty Fusible switch designed for robust performance in demanding conditions. Featuring a rated current of 60A, it operates with 3 wires and 3 poles. The switch is capable of handling motors up to 50hp and has operational voltage ratings of 600VAC/DC. It carries a NEMA 1 rating of protection, indicating its suitability for indoor use.
Technical Specifications
Part # |
H362 |
Category |
Electrical Products |
Subcategory |
Safety Switch |
Product Type |
Single Throw Safety Switch |
Duty Rating |
Heavy duty |
Device Application |
Heavy application |
Disconnect Type |
Fusible disconnect |
Factory Installed Neutral |
None |
Phase |
3 phase |
Number of Poles |
3 |
Current Rating |
60 A |
Voltage Rating |
600 V AC/DC |
Enclosure Rating |
NEMA 1 steel |
Mounting Type |
Surface |
Electrical Connection |
Lugs |
Wiring Configuration |
3-wire |
Depth |
6.38 in (162.05 mm) |
Width |
10.5 in (266.70 mm) |
Height |
17.5 in (444.50 mm) |
Net Weight |
15.43 lb(US) (7 kg) |
Information About H362
The H362 is a Heavy Duty Safety Switch manufactured by Square D™, a brand under Schneider Electric. Designed for rugged reliability, it ensures exceptional performance in demanding conditions. Part of the F Series, this safety switch exceeds mechanical endurance levels required by NEMA KS-1 or UL98 standards.
Key features of this safety switch include a quick-make, quick-break operating mechanism, a dual cover interlock, and a color-coded indicator handle. It is a Single Throw Safety Switch with a rated current of 60A and is UL listed with a NEMA 1 rating of protection. Operating as a 3-pole switch, it supports operational voltage ratings of 600VAC/DC.
