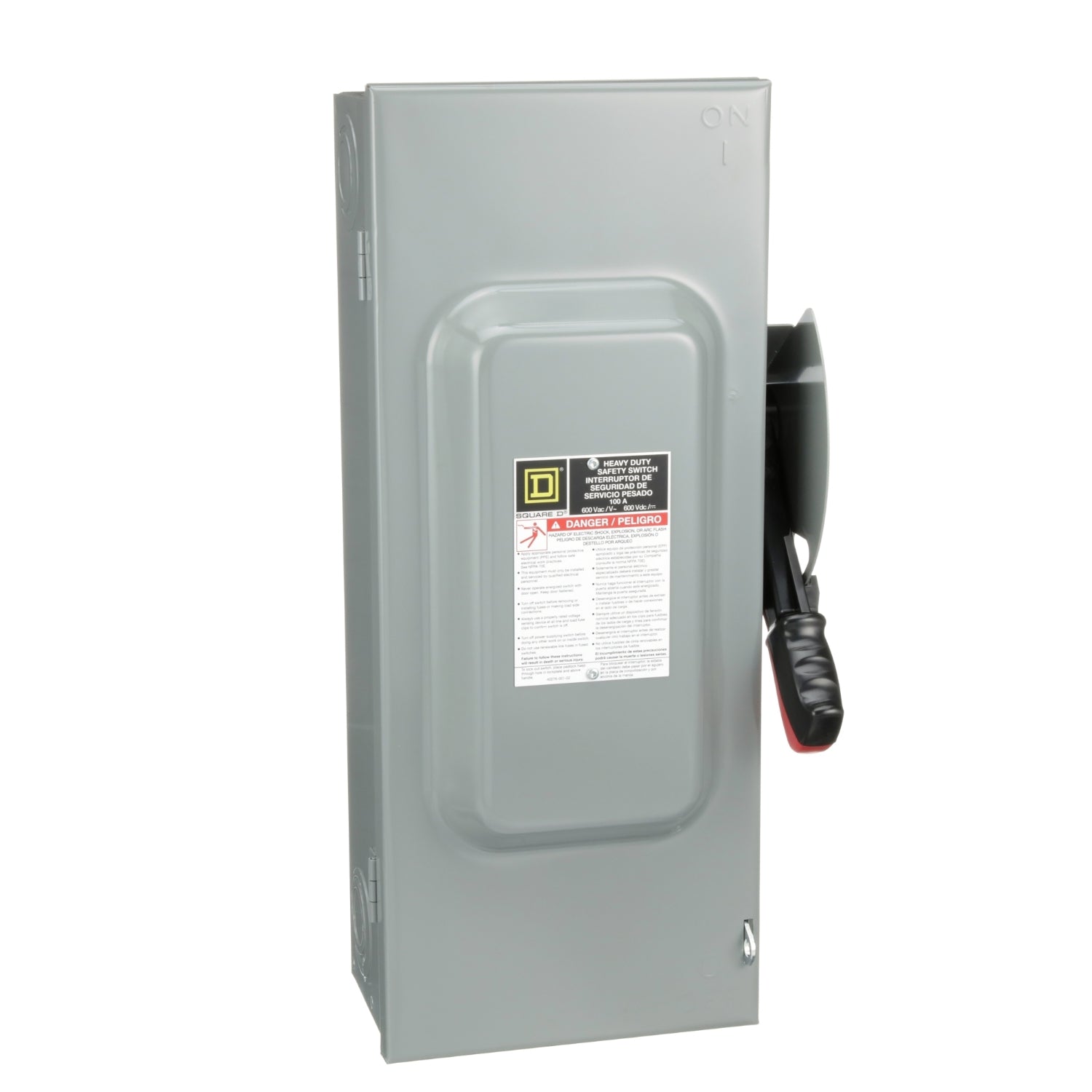

H363 | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H363
Description
The Square D™ by Schneider Electric Heavy Duty Safety Switch, model H363, is engineered for robustness and reliability in demanding environments. This fusible safety switch exceeds NEMA KS-1 and UL98 standards for mechanical endurance. Featuring a quick-make, quick-break operating mechanism and a dual cover interlock, it ensures safe operation. The switch is designed with a color-coded indicator handle for clear visual indication. Rated for 100A, it holds a UL listing and is housed in a NEMA 1 steel enclosure suitable for indoor applications.
Technical Specifications
|
Part # |
H363 |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product Type |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
100 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 1 steel |
|
Short-circuit current |
10 kA for H or K |
|
|
200 kA for R or J |
|
Fuse Type |
H or K |
|
|
R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire |
|
Wire Size |
AWG 12...AWG 1/0 aluminium |
|
|
AWG 14...AWG 1/0 copper |
Information About H363
The H363 Heavy Duty Safety Switch by Square D™, a brand of Schneider Electric, is engineered to deliver robust performance and reliability under demanding conditions. Part of the F Series, these safety switches exceed mechanical endurance standards set by NEMA KS-1 and UL98. Featuring a quick-make, quick-break operating mechanism, dual cover interlock, and a color-coded indicator handle, this Single Throw Safety Switch is designed for heavy-duty applications.
The H363 is rated for a current of 100A and is UL listed with a NEMA 1 enclosure rating, ensuring protection in indoor environments. It operates as a 3-pole switch with a voltage rating of 600VAC/DC. The enclosure is constructed from steel and does not include a factory-installed neutral.
This fusible disconnect offers a short-circuit current rating ranging from 10kA to 200kA, making it suitable for high-intensity electrical environments. The safety switch accommodates fuse types H, J, K, L, and R, providing flexibility in protection levels. It is designed for surface mounting, facilitating easy installation and maintenance in various electrical setups.
