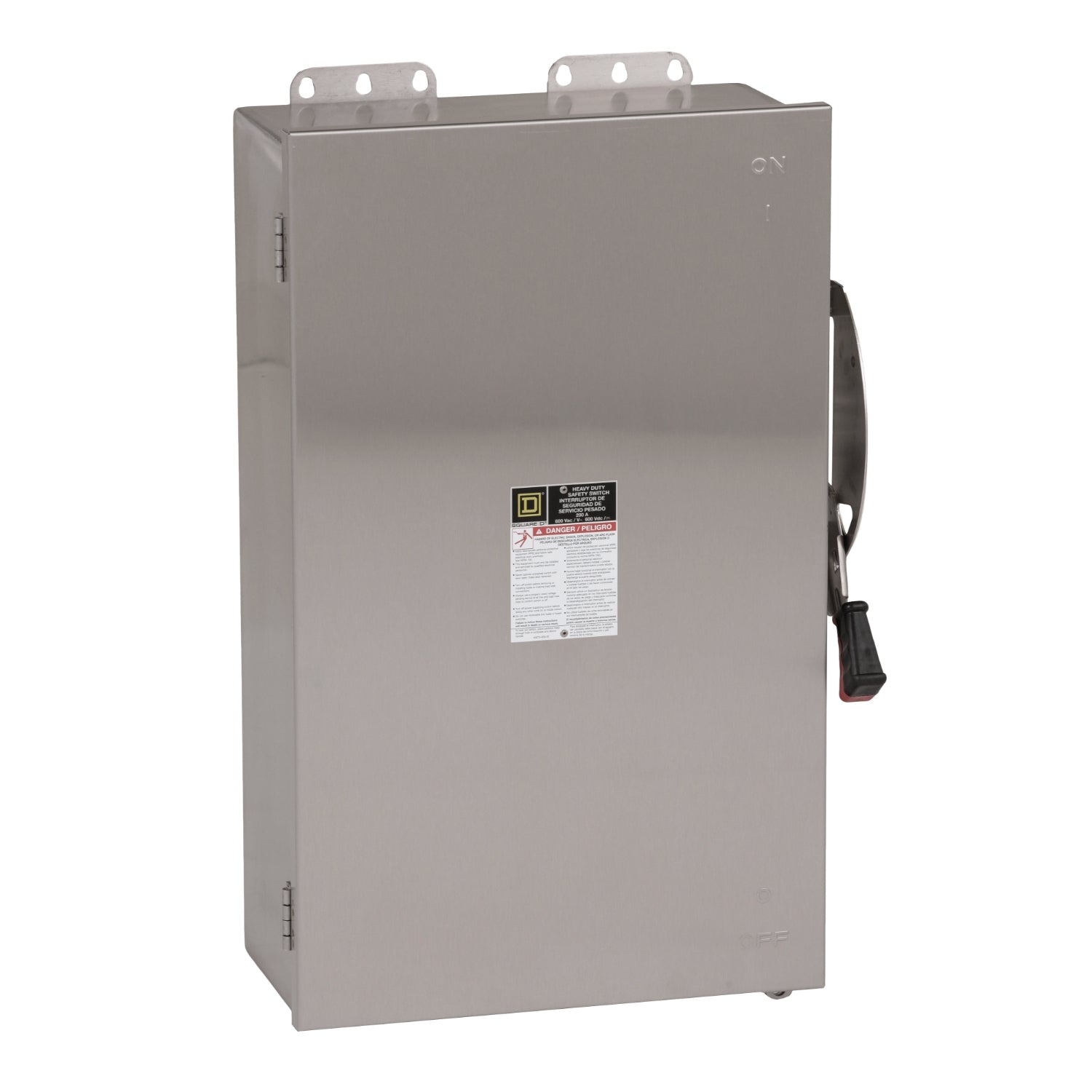

H364DS | Schneider Electric Safety Switch
- Regular price
- $3,989.00
- Sale price
- $3,989.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H364DS
Description
The H364DS is a Heavy Duty Fusible Safety Switch manufactured by the Square D™ brand of Schneider Electric. Designed for robustness and reliability, this safety switch is engineered to deliver exceptional performance even in harsh conditions.
Heavy Duty Safety Switches like the H364DS find applications across a wide range of settings, from commercial and institutional to industrial and manufacturing facilities. The F Series safety switches, including this model, exceed the mechanical endurance levels required by NEMA Type KS-1 or UL98 standards, with a design life of at least three times the NEMA requirement.
Technical Specifications
|
Part # |
H364DS |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
200 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 4/4X/5 stainless steel 304 |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire |
|
Wire Size |
AWG 6...250 kcmil copper or aluminium |
|
Tightening Torque |
275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil) |
|
Depth |
8.88 in (225.55 mm) |
|
Width |
19.25 in (488.95 mm) |
|
Height |
29 in (736.60 mm) |
|
Net Weight |
56.99 lb(US) (25.85 kg) |
Information About H364DS
The H364DS, manufactured by Square D™ under the Schneider Electric brand, is a Heavy Duty Fusible Safety Switch engineered for robustness, reliability, and exceptional performance in demanding environments. These Heavy Duty Safety Switches find applications across a wide spectrum, ranging from commercial and institutional to industrial and manufacturing facilities.
The F Series safety switches, including the H364DS, surpass the mechanical endurance levels stipulated by NEMA Type KS-1 or UL98 standards. With a design life at least three times the NEMA requirement, these switches ensure prolonged operational reliability. The incorporation of ample copper in the heaviest current-carrying paths of all Square D by Schneider Electric Heavy Duty Safety Switches effectively mitigates temperature rise, thereby enhancing service life.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
