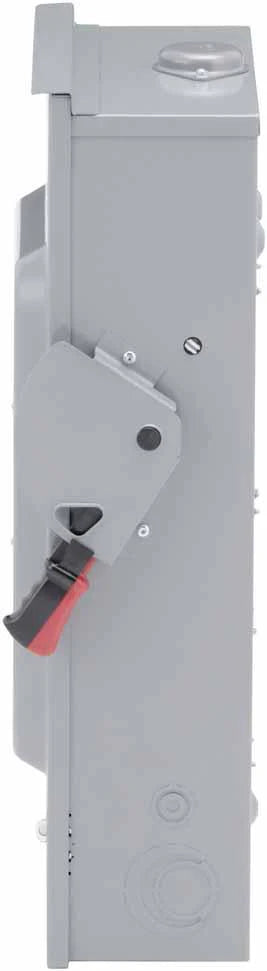

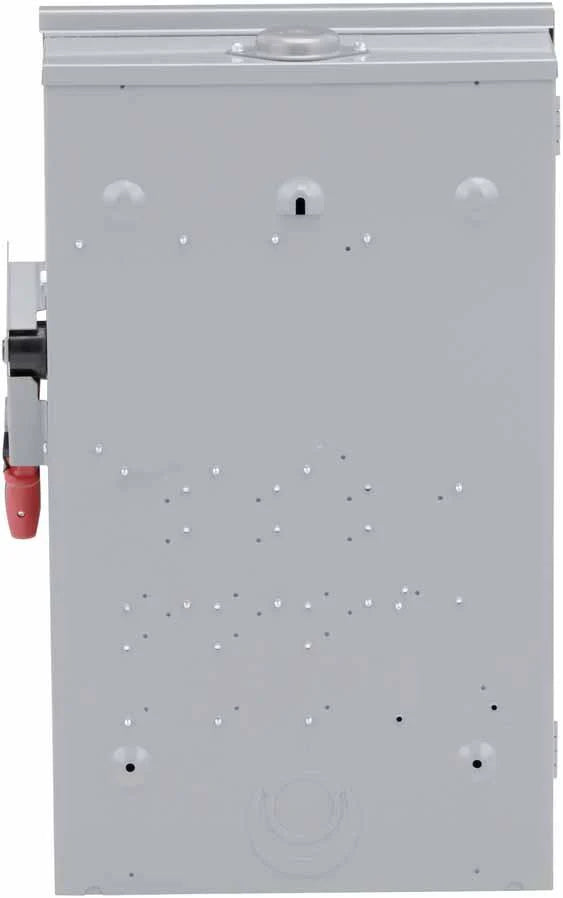

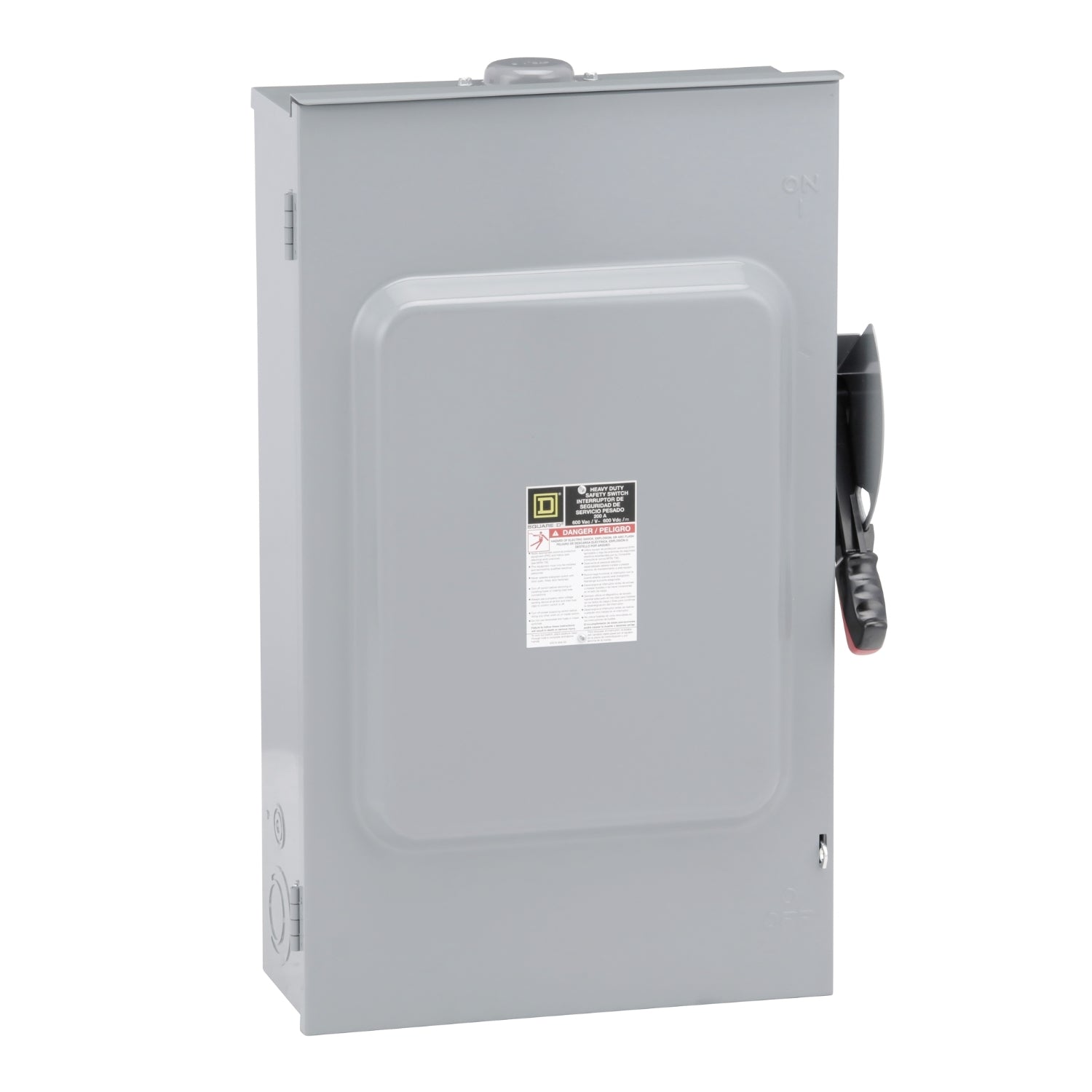

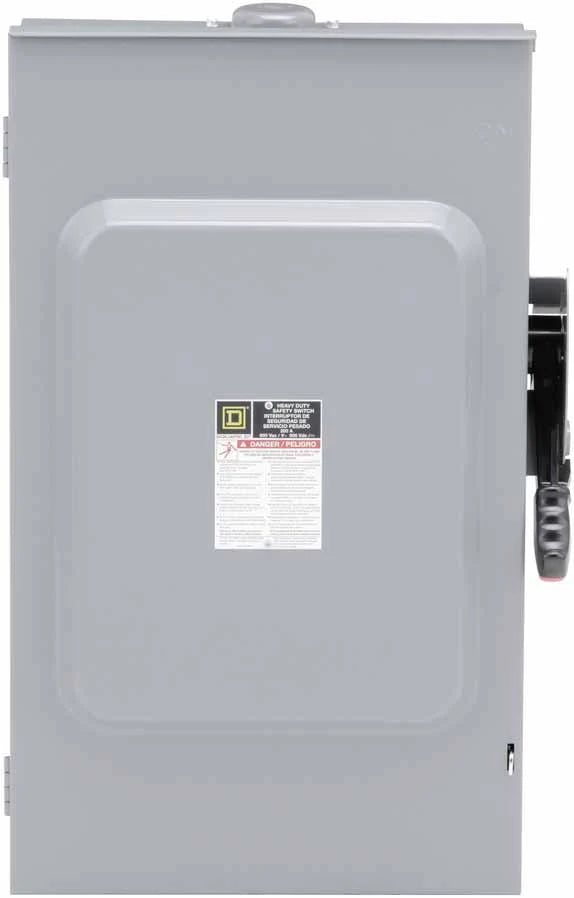

H364RB | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $945.00
- Sale price
- $945.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H364RB
Description
The H364RB is a Heavy Duty Safety Switch from the Square D™ by Schneider Electric brand. It is designed for durability and reliable performance in demanding conditions. This switch is part of the F Series, which offers mechanical endurance exceeding NEMA KS-1 and UL98 standards. Key features include a quick-make, quick-break operating mechanism, a dual cover interlock, and a color-coded indicator handle.
Technical Specifications
|
Part # |
H364RB |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
200 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Short-circuit current |
10 kA for H or K, 200 kA for R or J |
|
Fuse type |
H or K, R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring configuration |
3-wire |
|
Wire Size |
AWG 6...250 kcmil copper or aluminium |
|
Tightening torque |
275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil) |
|
Depth |
8.5 in (215.90 mm) |
|
Width |
18.63 in (473.20 mm) |
|
Height |
29.25 in (742.95 mm) |
|
Net Weight |
55.49 lb(US) (25.17 kg) |
Information About H364RB
The H364RB Safety Switch is a heavy-duty, fusible, 200A, 3-wire safety switch manufactured by Square D™ by Schneider Electric. This safety switch is designed to meet the rigorous demands of heavy applications, providing reliable and consistent performance. It belongs to the F Series of safety switches, which are known for their enhanced mechanical endurance, exceeding the requirements set by NEMA KS-1 and UL98 standards.
The H364RB features a quick-make, quick-break operating mechanism, ensuring rapid and reliable operation. Additionally, it is equipped with a dual cover interlock and a color-coded indicator handle, which enhances operational safety and provides clear visual status of the switch position. The safety switch is a single-throw type, designed for straightforward and secure operation.
This safety switch has a rated current of 200A and is UL listed, ensuring compliance with stringent safety standards. It has a NEMA 3R rating, indicating that it is suitable for outdoor use and provides protection against rain, sleet, and external ice formation. The switch is designed to handle operational voltages of up to 600VAC/DC, making it versatile for various heavy-duty applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
