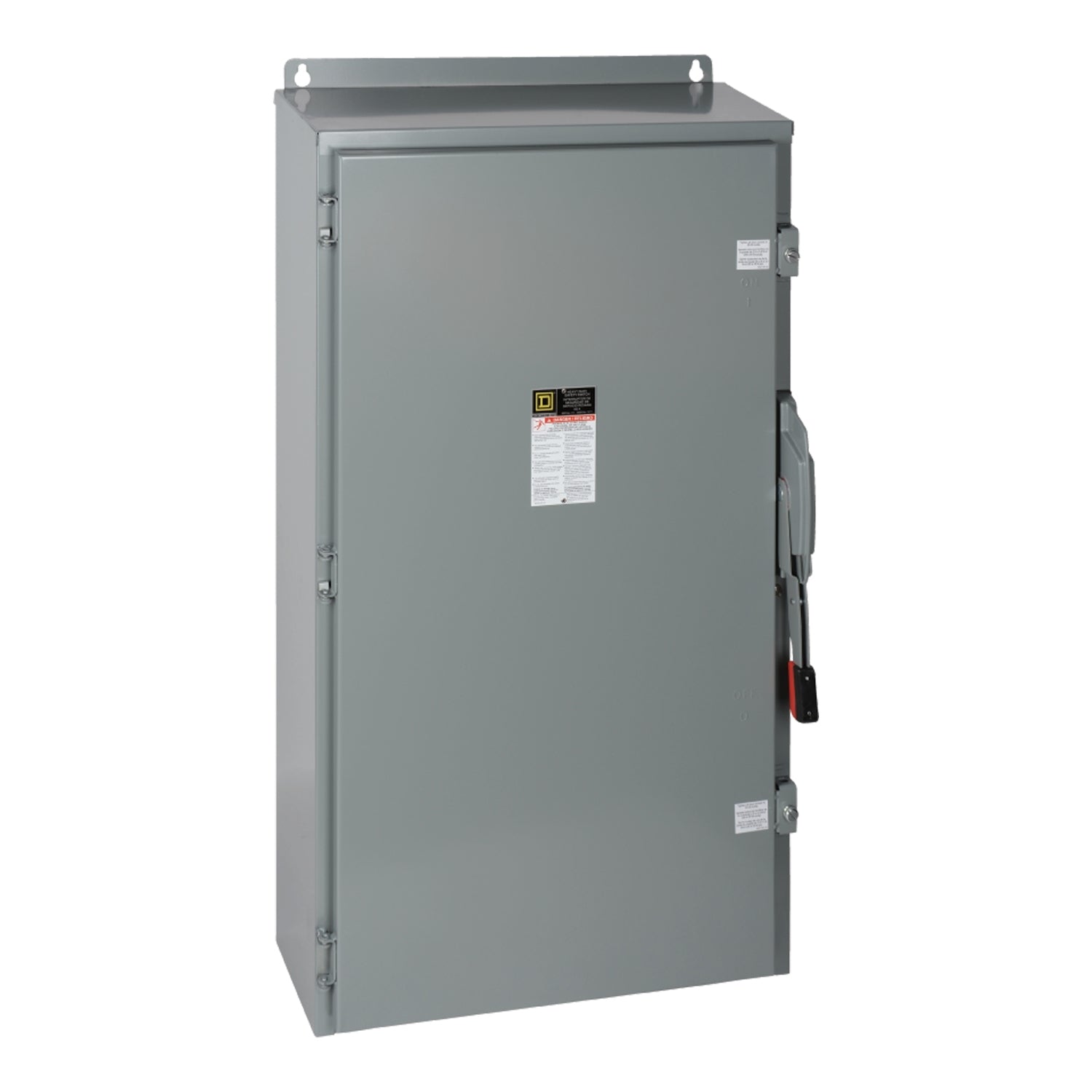

H365AWK | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $6,954.00
- Sale price
- $6,954.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H365AWK
Description
The H365AWK is a Heavy Duty Safety Switch by Square D™ from Schneider Electric, designed for demanding conditions. It is a fusible switch with a rated current of 400A, supporting 3 wires and 3 poles, and is suitable for applications up to 250hp at 600VAC/DC. The switch meets NEMA 12 standards, ensuring it is dust-tight and resistant to non-corrosive liquids. It features a single-throw design and a short-circuit rating of 200kA at 600VAC.
Technical Specifications
|
Part # |
H365AWK |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
400 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R/12 galvannealed steel |
|
Short-circuit current |
10 kA for H or K; 200 kA for R or J |
|
Fuse type |
H or K, R or J |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring configuration |
3-wire |
|
Wire Size |
AWG 1/0...750 kcmil copper or aluminium |
|
Tightening torque |
550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil) |
|
Depth |
10.13 in (257.30 mm) |
|
Width |
26.25 in (666.75 mm) |
|
Height |
46.25 in (1174.75 mm) |
|
Net Weight |
170.0 lb(US) (77.1 kg) |
Information About H365AWK
The H365AWK is a heavy-duty safety switch designed by Square D™ by Schneider Electric for demanding applications in commercial, institutional, industrial, and manufacturing facilities. This fusible disconnect switch is rated for 400A and operates at 600V AC/DC. The device is constructed to meet and exceed the rigorous performance and durability standards set forth by NEMA Type KS-1 and UL98.
The H365AWK safety switch features a three-phase, three-pole configuration and is designed for single-throw operation. It accommodates H, K, R, and J type fuses, providing flexibility in circuit protection. The switch has a short-circuit current rating of 10 kA for H or K fuses and 200 kA for R or J fuses. The device's robust design life is at least three times greater than the minimum requirements established by NEMA, ensuring long-term reliability and performance.
The switch’s enclosure is made of galvannealed steel, providing enhanced corrosion resistance and durability. It is rated NEMA 3R/12, making it suitable for both indoor and outdoor applications in environments where protection against dust, dirt, and water is necessary. The surface-mount design allows for straightforward installation on various types of surfaces.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
