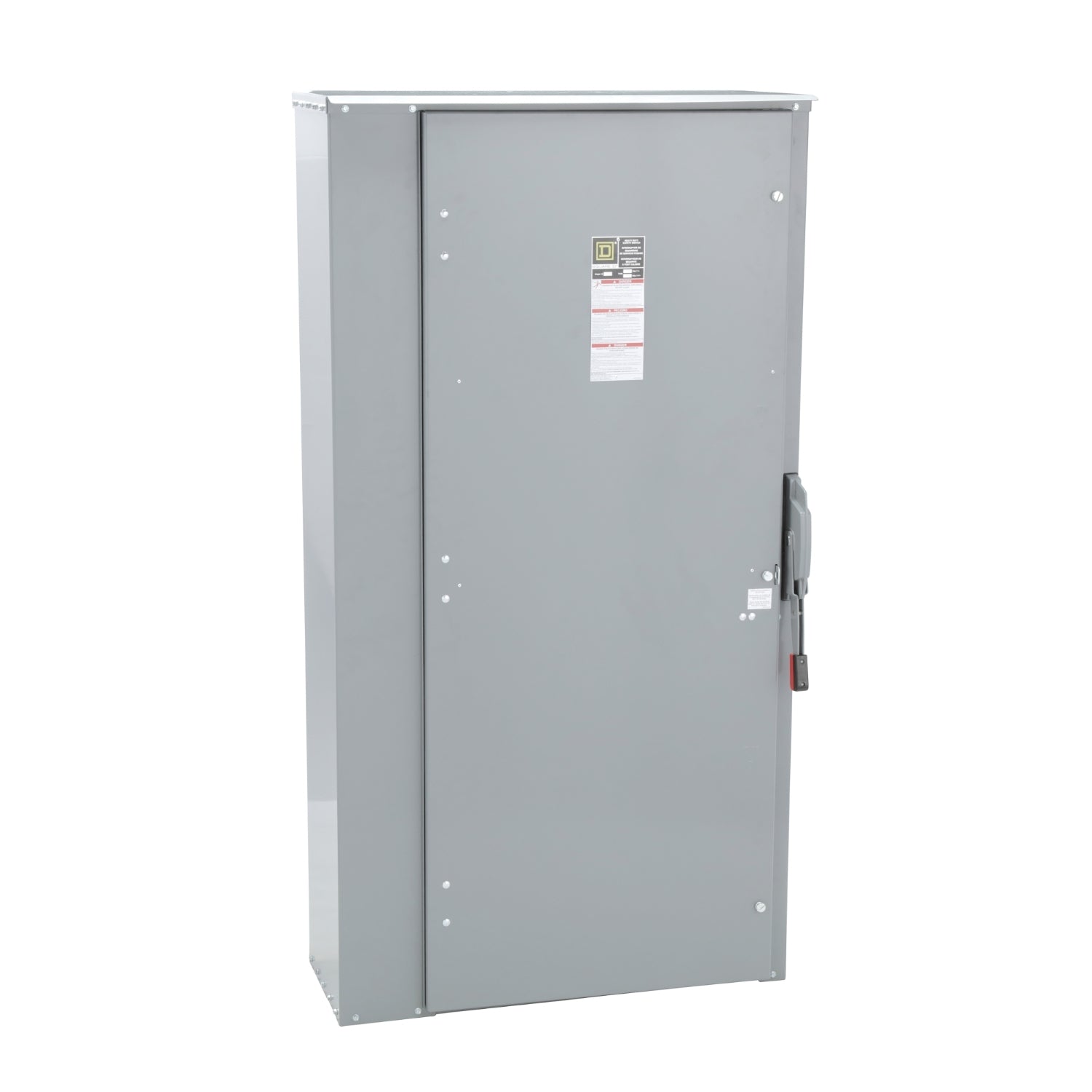

H367NR | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $15,499.00
- Sale price
- $15,499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H367NR
Description
The H367NR is a Square D™ by Schneider Electric brand Safety Switch designed for heavy-duty applications. Built to withstand harsh conditions, it offers exceptional performance and durability. This safety switch belongs to the F Series, exceeding NEMA KS-1 or UL98 standards in mechanical endurance. Featuring a quick-make, quick-break operating mechanism, dual cover interlock, and color-coded indicator handle, it ensures safe operation.
Technical Specifications
|
Part # |
H367NR |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
800 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Short-circuit current |
200 kA maximum for L |
|
Fuse type |
L |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
4-wire (3PH + N) |
|
Wire Size |
AWG 3/0...750 kcmil copper or aluminium |
|
Tightening Torque |
375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil) |
|
Depth |
17.75 in (450.85 mm) |
|
Width |
36.62 in (930.15 mm) |
|
Height |
69.13 in (1755.90 mm) |
|
Net Weight |
382.94 lb(US) (173.7 kg) |
Information About H367NR
The H367NR is a heavy-duty safety switch manufactured by Square D™, a brand of Schneider Electric. This safety switch is engineered to withstand demanding conditions and deliver reliable performance. The F Series safety switches, to which the H367NR belongs, offer mechanical endurance levels significantly higher than those required by NEMA KS-1 or UL98 standards.
Key features of the H367NR include a quick-make, quick-break operating mechanism, a dual cover interlock, and a color-coded indicator handle. These features enhance safety and ease of operation.
This safety switch is a single throw type, designed for heavy-duty applications. It has a rated current of 800A and is UL listed with a NEMA 3R rating for protection against ingress of solid foreign objects and water.
The H367NR is a 3-pole switch with operational voltage ratings of 600VAC/DC. Its enclosure is constructed of galvannealed steel, ensuring durability and protection in harsh environments. Additionally, it comes with a factory-installed neutral.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
