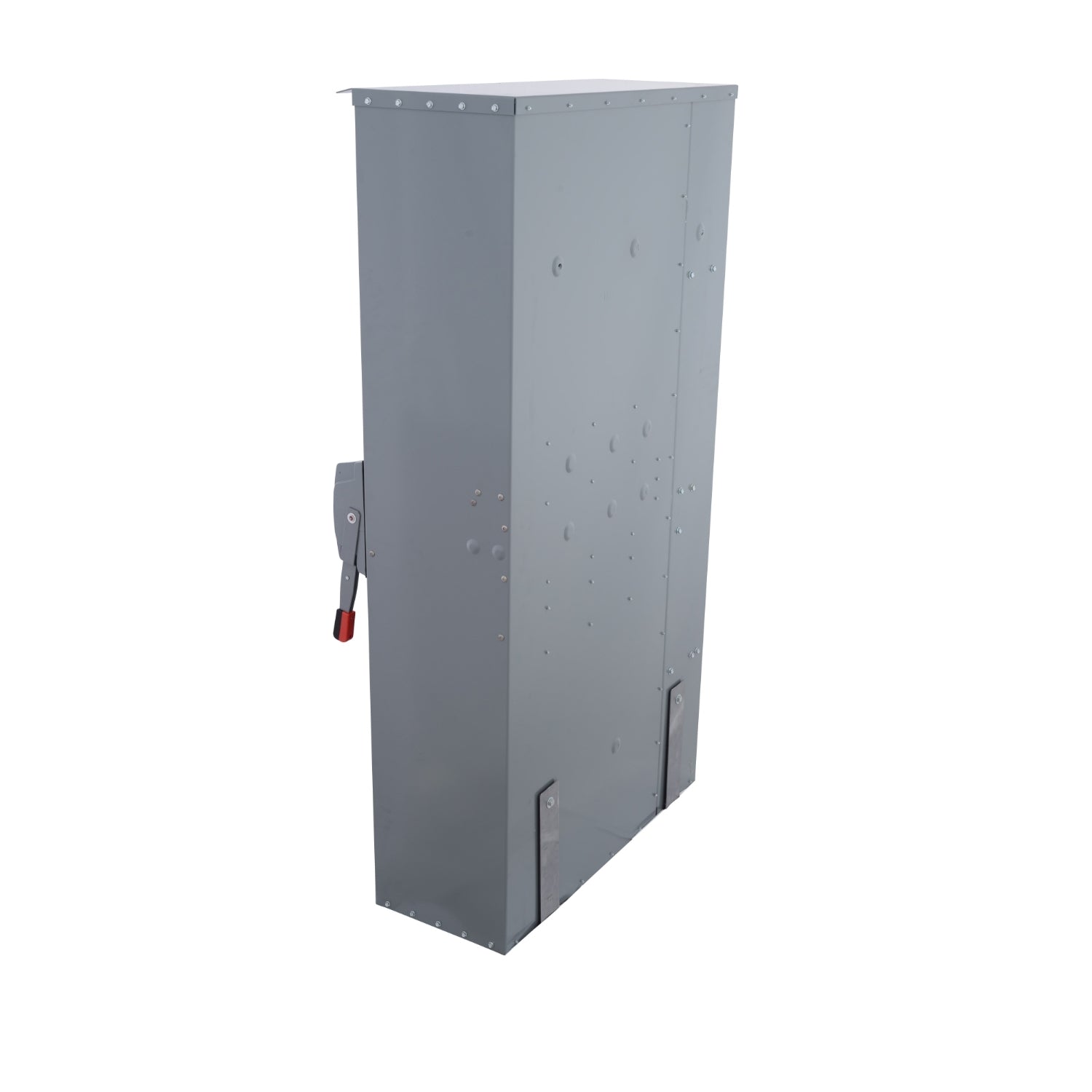

H368NR | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $15,499.00
- Sale price
- $15,499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H368NR
Description
The H368NR Safety Switch, part of the Square D™ by Schneider Electric brand, is a heavy-duty, fusible disconnect switch designed for demanding industrial and commercial applications. This model has a current rating of 1200A and operates at up to 600VAC/DC. It features a 4-wire configuration with 3 poles and one factory-installed neutral, suitable for managing high-power circuits up to 500hp. The switch meets a short circuit rating of 200kA at 600VAC/DC.
Technical Specifications
|
Part # |
H368NR |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Fusible disconnect |
|
Factory Installed Neutral |
Neutral (factory installed) |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
1200 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Short-circuit current |
200 kA maximum for L |
|
Fuse type |
L |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring configuration |
4-wire (3PH + N) |
|
Wire Size |
AWG 3/0...750 kcmil copper or aluminium |
|
Tightening torque |
375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil) |
|
Depth |
17.75 in (450.85 mm) |
|
Width |
36.62 in (930.15 mm) |
|
Height |
69.13 in (1755.90 mm) |
|
Net Weight |
382.06 lb(US) (173.3 kg) |
Information About H368NR
The H368NR is a heavy-duty safety switch manufactured by Square D™ by Schneider Electric. This product is designed to provide reliable performance in demanding environments, including commercial, institutional, industrial, and manufacturing facilities. The safety switch is a single throw, fusible disconnect type, with a rated current of 1200A and a voltage rating of 600V AC/DC. It supports a 4-wire configuration (3PH + N) and includes a factory-installed neutral.
The H368NR safety switch is built to exceed NEMA Type KS-1 and UL98 standards, offering a design life of at least three times the NEMA requirement. This is achieved through the use of abundant copper in the current-carrying paths, which helps to lower temperature rise and improve the service life of the switch. The enclosure is made of galvannealed steel and is rated NEMA 3R, indicating it is suitable for outdoor use and provides protection against rain, sleet, and external ice formation.
This product is compatible with L fuses and has a short circuit current rating of 200kA@600VAC/DC. The switch is surface mounted and features lugs for electrical connections. The acceptable wire size for this switch ranges from AWG 3/0 to 750 kcmil for both copper and aluminum wires. The tightening torque for the wire connections is specified as 375 lbf.in (42.37 N.m).
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
