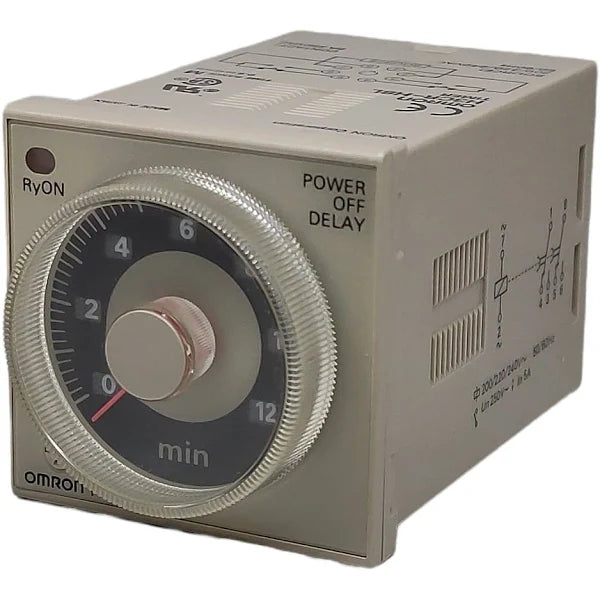

H3CR-H8L | Omron AC200-240 S, Solid-State Timer
- Regular price
- $77.00
- Sale price
- $77.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H3CR-H8L
Description
OFF-delay solid-state analog timer with LED indic. - 1/16 DIN (48x48mm) - single operating mode - OMRON (H3CR-H series) - 0.05min...12min overall timer range - Supply voltage 100Vac-120Vac (110Vac) (50/60Hz) - Rated current 5A (250Vac; AC-13) / 3A (250Vac; AC-15) - DPDT (Double Pole Double Throw) (2C/O) output contacts - Plug-in mounting on 8-pin DIN rail sckt. - IP40 - equivalent to H3CRH8LAC100120M
Technical Specifications
| Brand | OMRON |
| Category | Controls & Indicators |
| Part Number | H3CR-H8L |
| Subcategory | Timer/Counter |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Function | Off-Delay |
| Circuit | DPDT (2 Form C) |
| Delay Time | 0.05 Sec ~ 12 Sec |
| Contact Rating @ Voltage | 5A @ 250VAC |
| Voltage - Supply | 100 ~ 120VAC |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
Information About H3CR-H8L
The H3CR-H8L by Omron is an AC200-240 S Solid-State Timer designed for versatile industrial applications. Featuring socketable mounting, it offers ease of installation and maintenance. With a mechanical relay type and DPDT (2 Form C) circuit configuration, it ensures reliable switching operations.
Operating in an off-delay function mode, this timer provides precise delay control ranging from 0.05 seconds to 12 seconds. It offers a contact rating of 5A at 250VAC, making it suitable for various load requirements. With a voltage supply range of 100 to 120VAC, it accommodates common industrial power standards.
Terminating with an 8-pin (Octal) plug-in style, it facilitates quick and secure connection. Timing adjustment is achieved through a hand dial, enabling easy configuration according to specific application requirements. The timing initiate method relies on input voltage, ensuring accurate timing initiation.
Overall, the Omron H3CR-H8L Solid-State Timer combines reliability, versatility, and ease of use, making it an ideal choice for diverse industrial timing applications.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
