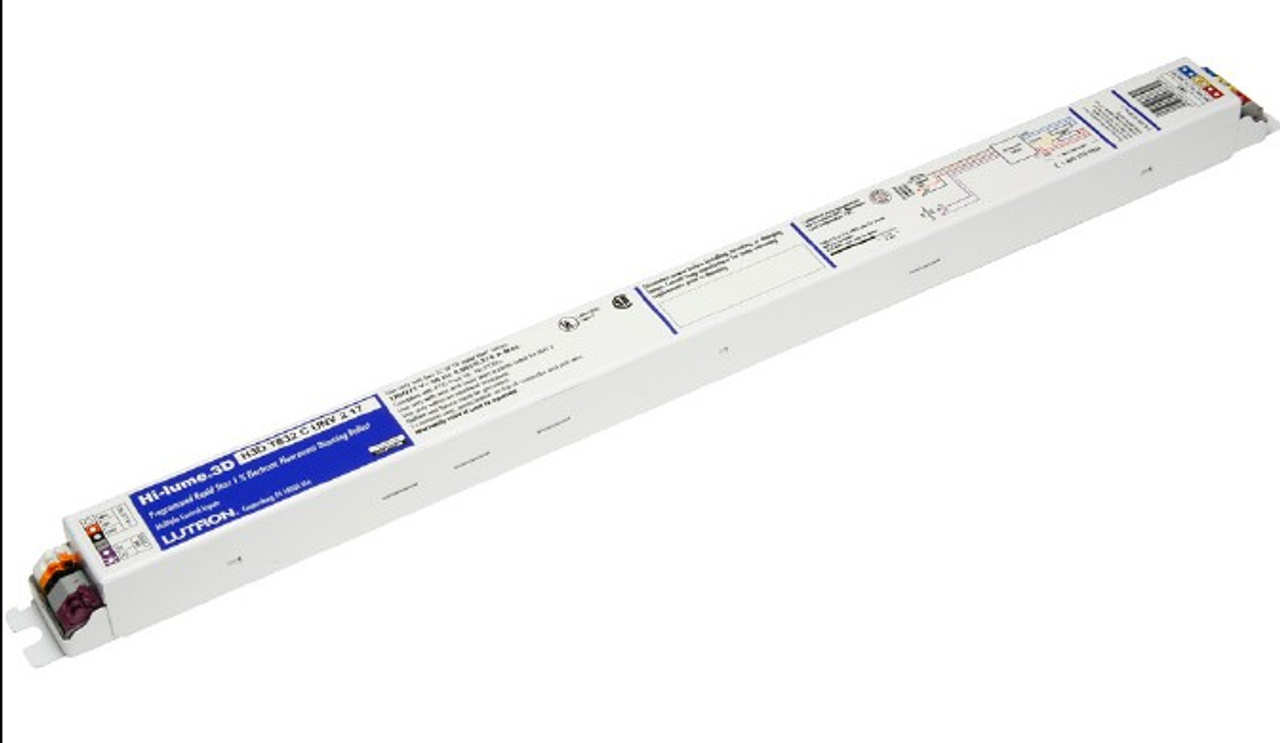

H3DT521CU110 | Lutron Hi-Lume 3D Fluorescent Dimming Ballast 120–277V 21W T5
- Regular price
- $435.00
- Sale price
- $435.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H3DT521CU110
Description
The Lutron H3DT521CU110 Hi-Lume 3D Fluorescent Dimming Ballast is a high-frequency electronic ballast designed for T5 linear fluorescent lamps. Operating on 120–277 VAC, it provides smooth, flicker-free continuous dimming from 100% to 1%, ensuring precise light control and energy efficiency in commercial and architectural lighting systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | H3DT521CU110 |
| Subcategory | Dimming Ballasts |
| Series | Hi-Lume 3D |
| Ballast Type | Electronic, High Frequency |
| Lamp Type | T5 Linear |
| Lamp Wattage | 21 W |
| Number of Lamps Supported | 1 |
| Starting Type | Programmed Rapid Start |
| Dimming Range | 100% to 1% Continuous |
| Dimming Type | Proprietary Flicker-Free Continuous |
| Input Voltage | 120/240/277 VAC, 50/60 Hz |
| Input Current | 0.22 A (120V), 0.11 A (240V), 0.10 A (277V) |
| Input Power | 26.3 W @ 120/240V, 26.6 W @ 277V |
| Power Factor | 0.95 |
| Total Harmonic Distortion (THD) | ≤10% |
| Ballast Factor | 1.0 |
| Wiring Type | Parallel |
| Operating Frequency | 42 kHz |
| Minimum Starting Temperature | 50°F (10°C) |
| Maximum Case Temperature | 75°C |
| Inrush Current | 7 A @ 120V / 3 A @ 277V |
| Sound Rating | Class A |
| Dimensions (L × W × H) | 18 in × 1.18 in × 1 in |
| Approvals | UL935, CSA, FCC Part 18, CEC, RoHS Compliant |
| Standards Compliance | ANSI C82.11, ANSI C62.41, ANSI/ESD S20.20, ISO 9001 |
| Country of Origin | Mexico |
| Application | Commercial and architectural fluorescent dimming |
| Weight | 1.2 lb (approx.) |
Information About H3DT521CU110
The H3DT521CU110 belongs to the Hi-Lume 3D series of Lutron electronic dimming ballasts, engineered for superior light quality and efficiency. Featuring proprietary full-range dimming technology, it supports one F21T5 lamp with a programmed rapid start for extended lamp life. The ballast operates at a high frequency of 42 kHz to eliminate flicker and audible noise, maintaining a Class A sound rating and power factor of 0.95. With UL, CSA, and FCC approvals, it is ideal for high-performance indoor lighting requiring precise, smooth dimming control.
Key Features:
- Continuous Dimming: Provides full-range flicker-free dimming from 100% down to 1%.
- Programmed Rapid Start: Ensures optimal lamp life and reliable starting at low temperatures.
- High Efficiency: Operates with a 0.95 power factor and 10% maximum THD for stable performance.
- Wide Input Voltage: Accepts 120, 240, or 277 VAC for universal installation flexibility.
- High-Frequency Operation: Runs at 42 kHz to reduce flicker and noise.
- Thermally Protected: Class P ballast with a maximum case temperature of 75°C for safety.
- Compact Form Factor: 18" length for easy integration in fixture housings.
- Certified Performance: Meets ANSI, UL, CSA, CEC, FCC, and RoHS standards for quality and compliance.
The H3DT521CU110 delivers the reliability and precision required for professional-grade dimming control in architectural and commercial fluorescent lighting applications.
