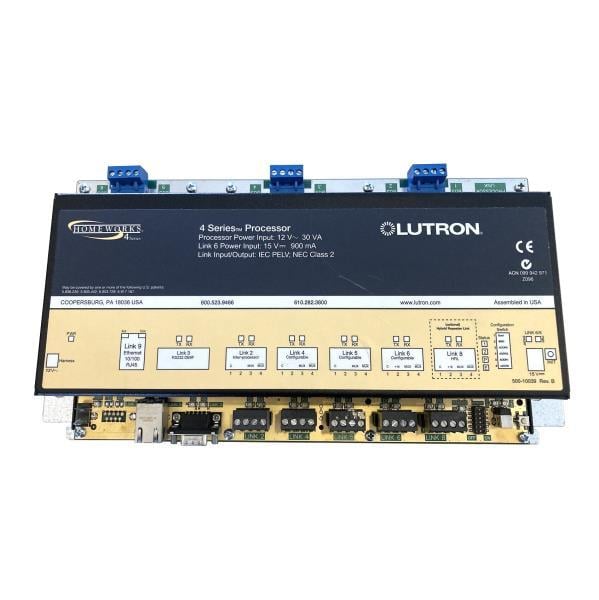

H4P5-HRL-120 | Lutron HomeWorks 4 Series Processor with Hybrid Repeater Link – 120 V Lighting Controller
- Regular price
- $8,999.00
- Sale price
- $8,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H4P5-HRL-120
Description
The H4P5-HRL-120 is a high-performance lighting processor engineered for advanced residential and commercial automation. It manages communication between wired controls and RF devices, enabling intelligent lighting presets and system logic. Designed for seamless integration, it ensures reliable performance in complex HomeWorks installations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting
|
| Part Number | H4P5-HRL-120 |
| Subcategory | Lighting Controller |
| Power Input | 120 V 60 Hz (processor), 15 V 900 mA (links) |
| Links Available | 2 configurable + 1 Hybrid Repeater Link |
| Communication Interfaces | RS-232 (DB9), Ethernet (RJ45) |
| Compatible Devices | Maestro dimmers, seeTouch keypads, WPM |
| Processor Power | 12 V 30 W |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Humidity Range | 0–90 % non-condensing |
| Enclosure Compatibility | HWI-LV24 enclosure |
| Memory Backup | Battery-powered |
| Installation | Indoor, wall-mounted |
| Weight | 5.00 lbs |
Information About H4P5-HRL-120
The H4P5-HRL-120 is a HomeWorks 4 Series processor designed by Lutron for smart lighting control applications. It includes two configurable communication links and a dedicated Hybrid Repeater Link for system expansion with RF devices. This processor handles timeclock functions, conditional logic, and system modes such as vacation and security. Compatible with Maestro dimmers, seeTouch keypads, and Wallbox Power Modules, it delivers flexible connectivity across luxury lighting environments.
Key Features:
- Hybrid Repeater Link: provides connection and power to RF repeaters for extended wireless coverage
- Configurable Links: supports keypads, dimmers, and interface modules via two programmable communication ports
- Advanced System Logic: enables astronomic timeclock scheduling, presets, conditional triggers, and security modes
- RS-232 Integration: onboard serial port ensures straightforward communication with third-party systems
- Ethernet Connectivity: Link 9 RJ45 connection supports programming and network-based integration
- Battery-Backed Memory: preserves system settings and schedules in case of power interruption
- Code-Compliant Build: NEC Class 2 / IEC PELV rated, designed for safe and reliable indoor installations
- Modular Expansion: integrates seamlessly with other HomeWorks components for scalable lighting control
The H4P5-HRL-120 delivers the reliability and precision required for premium smart lighting systems.
