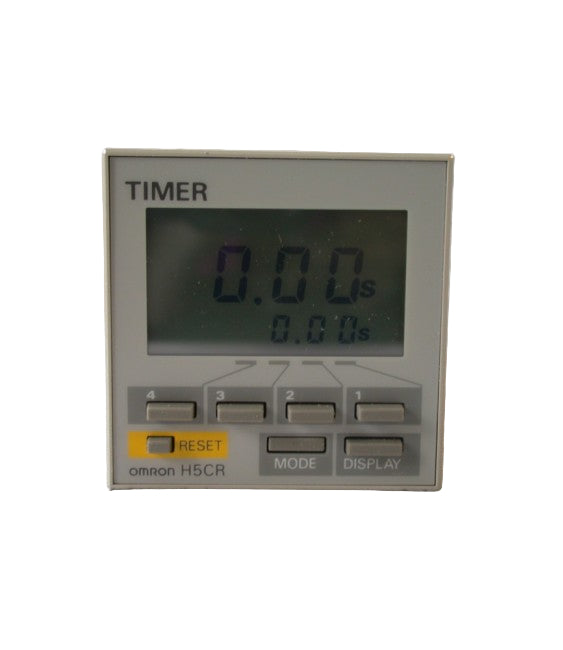

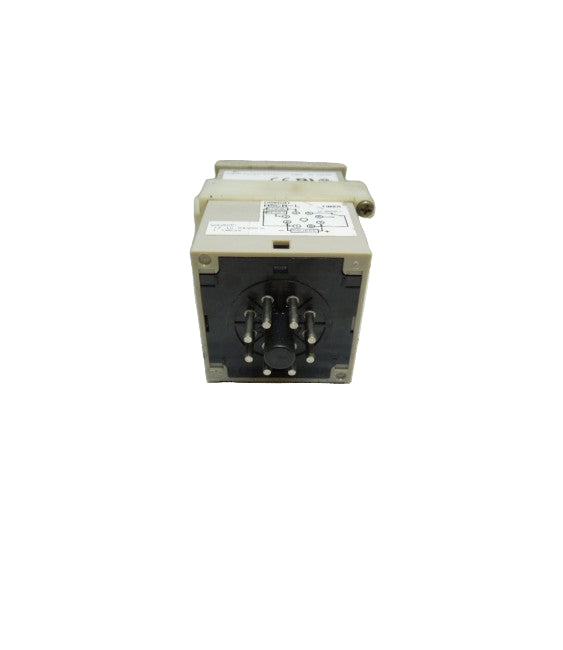

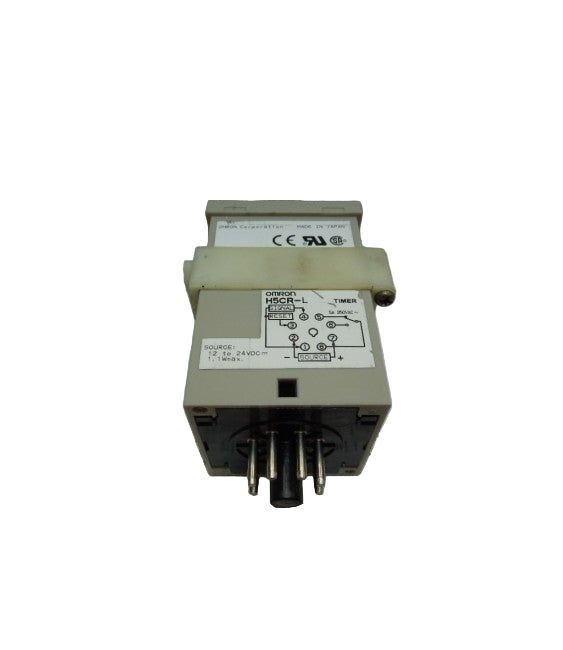

H5CR-L | Omron H5CR Series Digital Panel Timer 48×48 mm Multi-Function Up/Down Counter
- Regular price
- $755.00
- Sale price
- $755.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: H5CR-L
Description
The Omron H5CR-L is a digital panel meter timer designed for accurate time measurement and control in industrial automation and process systems. Featuring a compact design and versatile input options, it provides precise timing control in both up and down modes. With clear digital display and easy front-panel configuration, the H5CR-L offers dependable operation for a wide range of control panel applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | H5CR-L |
| Subcategory | Panel Meters / Digital Timers |
| Series | H5CR Series |
| Type | Digital Timer / Counter |
| Mounting Type | Panel Mount |
| Panel Cutout Dimensions | 45 × 45 mm (for 48 × 48 mm housing) |
| Display Type | Digital LED / LCD Display |
| Display Digits | 4 to 6 digits (depending on mode) |
| Operating Modes | Up / Down timing, Interval, Repeat, One-shot |
| Timing Range | Selectable (from 0.01 sec to 99 hrs, depending on configuration) |
| Reset Method | External / Manual |
| Input Signal Type | Voltage or contact input |
| Power Supply Voltage | 100–240 VAC or 24 VDC (model-dependent) |
| Output Type | Relay Output (SPDT or DPDT) |
| Contact Rating | 250 VAC, 3 A resistive load |
| Accuracy | ±0.3% or less (of full-scale) |
| Ambient Operating Temperature | -10°C to +55°C |
| Storage Temperature Range | -25°C to +65°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Insulation Resistance | ≥ 100 MΩ (at 500 VDC) |
| Dielectric Strength | 2,000 VAC for 1 min (between terminals) |
| Vibration Resistance | 10–55 Hz, 0.75 mm amplitude |
| Shock Resistance | 300 m/s² (3 times each direction) |
| Protection Rating | IP50 front panel (IP20 overall) |
| Standards Compliance | UL, CSA, CE, RoHS |
| Weight | Approx. 0.2 kg (0.44 lb) |
Information About H5CR-L
The H5CR-L belongs to Omron’s H5CR Series of multi-function digital timers and counters, widely used in machine control, automation, and process monitoring. This model integrates up/down timing, external reset, and start signal inputs, allowing flexible timing sequences in production and test systems. Designed for panel mounting, it features a bright digital display for easy visibility and offers multiple timing ranges for precise interval management. The H5CR-L’s robust build and high reliability make it suitable for OEM machinery, conveyor systems, and industrial instrumentation panels.
Key Features:
- Multi-Function Timer: Supports up and down timing modes with external control input.
- Compact Panel Design: Fits standard 48 × 48 mm DIN panel cutouts.
- High Accuracy: Stable and repeatable timing across multiple selectable ranges.
- Easy Configuration: Front-panel keypad for quick mode and time setting.
- Clear Digital Display: LED or LCD readout for real-time process visibility.
- Wide Input Voltage Range: Operates on standard AC or DC control power.
- Long Service Life: High-quality relay contacts for extended operational reliability.
- Omron Industrial Standard: Built for precise timing and control in automation systems.
The H5CR-L delivers the reliability and precision required for timing, counting, and sequencing tasks in industrial machinery and process control systems.
