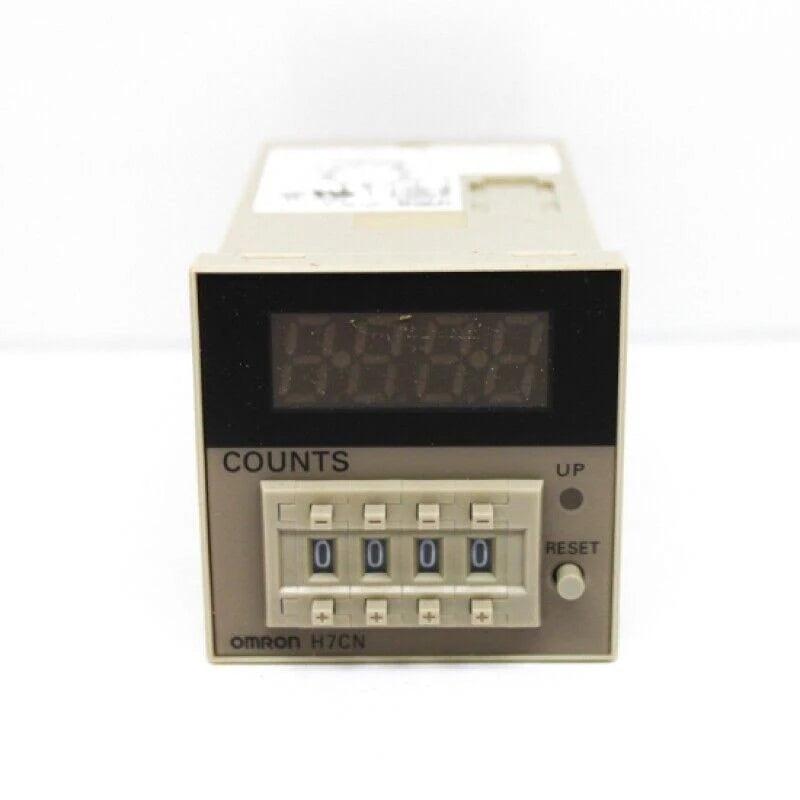

H7CN-XHNM AC100-240 | Omron 4-Digit LED Digital Counter 100–240VAC
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: H7CN-XHNM AC100-240
Description
The Omron H7CN-XHNM AC100-240 is a 4-digit digital preset counter featuring a bright red LED display and solid-state counting performance. Designed for operation on 100–240 VAC at 50/60 Hz, it provides reliable count-up functionality with relay contact output. This unit is suitable for industrial automation systems requiring accurate event counting and preset control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Controls |
| Part Number | H7CN-XHNM AC100-240 |
| Subcategory | Digital Counters |
| Series | H7CN Series |
| Display Type | 4-Digit 7-Segment Red LED |
| Counting Mode | Incrementing (Count-UP) |
| Maximum Counting Speed | 5 kHz |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Output Type | SPDT Relay Contact |
| Output Rating | 250 VAC, 3 A (Resistive Load) |
| Input Type | NPN Open Collector (CP1, CP2, RESET) |
| Mounting Type | Plug-In 11-Pin Socket / Panel Mount |
| Panel Cut-Out | 45 mm × 45 mm |
| Dimensions | 48 × 48 × 97.6 mm |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Standards Compliance | UL 508, CSA C22.2 No.14, EN/IEC61010-1, CE |
| Weight | Approx. 0.3 kg |
Information About H7CN-XHNM AC100-240
The H7CN-XHNM AC100-240 is part of Omron’s H7CN series of digital solid-state preset counters built in a compact 1/16 DIN (48 × 48 mm) format. It supports incrementing (count-UP) operation with a maximum counting speed of 5 kHz and includes memory backup with power-OFF reset capability. The unit features a 4-digit, 7-segment red LED display with 10 mm character height and UP indicator for clear visibility. Designed for plug-in mounting on an 11-pin round socket, it integrates easily into control panels and provides SPDT relay contact output rated for 250 VAC at 3 A resistive load.
Key Features:
- 4-Digit LED Display: Bright red 7-segment LEDs with 10 mm character height for clear readability.
- 100–240 VAC Supply Voltage: Wide AC input range for industrial power systems.
- 5 kHz Maximum Counting Speed: Supports high-speed counting applications.
- SPDT Relay Output (3 A at 250 VAC): Provides reliable load switching capability.
- Memory Backup Function: Retains count data during power interruptions.
- External and Manual Reset: Supports NPN open collector reset and manual reset operations.
- 1/16 DIN Compact Size: 48 × 48 mm panel cut-out for standardized installation.
- 11-Pin Plug-In Mounting: Simplifies wiring and maintenance via socket connection.
The H7CN-XHNM AC100-240 delivers the reliability and precision required for industrial counting, batching, and event monitoring applications.
