H7CX-A4D-N | Omron Counter 1/16DIN
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

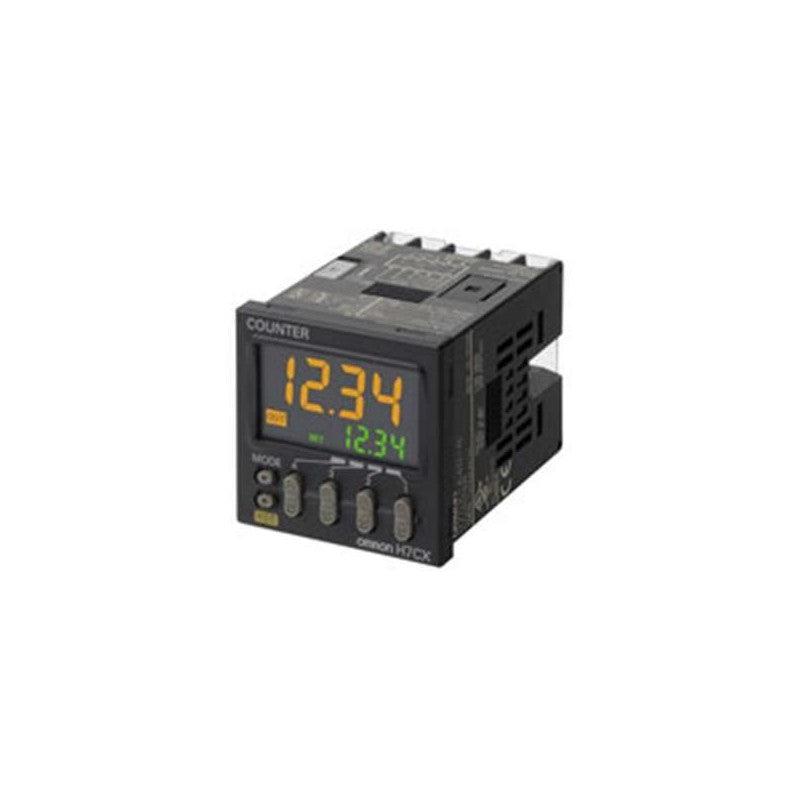

Product Description P/N: H7CX-A4D-N
Description
The H7CX-A4D-N is a compact 1/16 DIN counter from Omron with multifunction capabilities and a dual-color LCD display. Operating on 12–24 VDC, it supports relay output and versatile counting modes in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Controls & Indicators
|
| Part Number | H7CX-A4D-N |
| Subcategory | Timer/Counter |
| Series | H7CX Series |
| Counting Modes | Up, Down, Quadrature, Command, Individual |
| Number of Digits |
4 |
| Display Type | Dual-color LCD with backlight |
| Character Height | 12 mm (Main), 6 mm (Secondary) |
| Count Rate | 30 Hz / 5 kHz |
| Input Type | Voltage / No-voltage |
| Output Type | Relay (Contact + Transistor) |
| Supply Voltage | 12–24 VDC |
| Mounting Type | Panel Mount |
| Panel Cutout | 45 × 45 mm |
| Termination Style | Screw Terminal |
| Operating Temperature | –10°C to 55°C |
| Ingress Protection | IP66 (Front Panel) |
| Weight | 3.00 lbs |
Information About NH7CX-A4D-N
The H7CX-A4D-N belongs to Omron’s advanced series of multifunction counters, offering both preset and totalizing functions in a compact, panel-mountable form. It features a bright dual-color backlit LCD display with four large characters per row for enhanced visibility, even in dim environments. The unit supports a wide range of counting modes including up, down, quadrature, command, and individual, with selectable count rates of 30 Hz or 5 kHz for high-speed applications. Input types include both voltage and no-voltage signals, while output is handled through a reliable relay contact. Designed for durability and ease of integration, the H7CX-A4D-N uses screw terminals for secure connections and fits into standard 45 × 45 mm panel cutouts. With an IP66 rating, it’s dust-tight and water-resistant, making it ideal for demanding industrial environments.
Key Features:
- Multifunction Counter Modes: Supports up, down, command, quadrature, and individual modes for broad application use.
- Dual-Color LCD Display: Provides clear 4-digit readout with backlit characters for excellent visibility in all lighting conditions.
- Flexible Input Types: Accepts both voltage and no-voltage signal inputs, enabling compatibility with various sensors and devices.
- Relay Output: Built-in contact output ensures reliable actuation of downstream devices such as alarms or relays.
- High-Speed Count Rates: Offers selectable 30 Hz or 5 kHz response rates for both low-speed and high-speed operations.
- Programmable Reset Functions: Allows reset via front panel, external input, or preset programming for operational flexibility.
- 12–24 VDC Power Supply: Operates across standard control voltages, making it easy to integrate into existing systems.
- IP66 Panel Protection: Dust-tight and water-resistant enclosure supports installation in rugged industrial environments.
The H7CX-A4D-N delivers accurate counting, flexible input/output options, and robust environmental protection in a compact panel-mount format.
