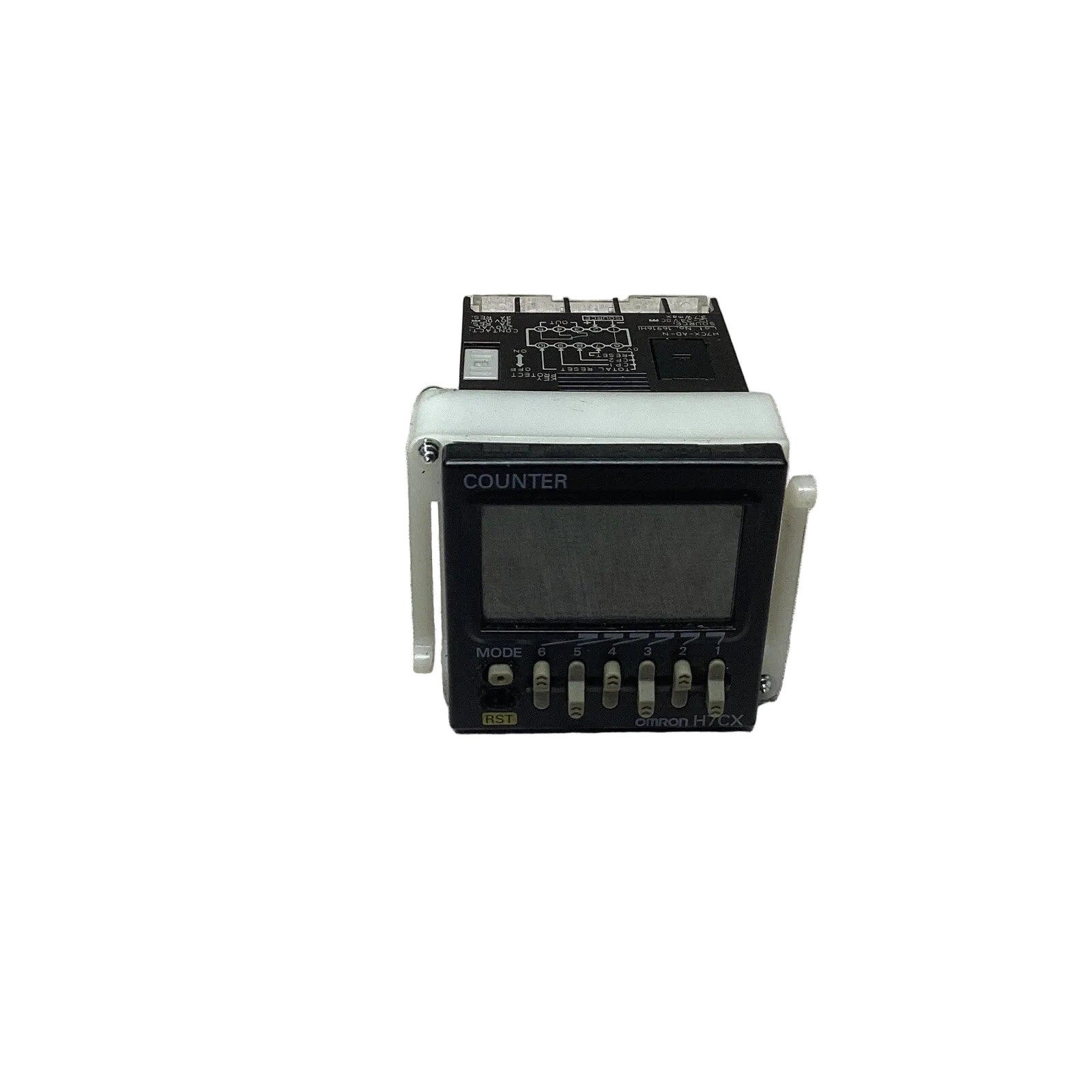

H7CX-AD-N | Omron H7CX Series Multifunction 6-Digit Digital Counter
- Regular price
- $244.00
- Sale price
- $244.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: H7CX-AD-N
Description
The Omron H7CX-AD-N is a multifunction digital counter designed for precise counting and totalizing in industrial automation systems. This unit supports multiple operating modes, including up, down, and quadrature counting, and features a dual-color LCD for clear status indication. It is suited for panel-mounted applications requiring reliable count monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Counters & Timers |
| Part Number | H7CX-AD-N |
| Subcategory | Digital Counters |
| Series | H7CX |
| Product Type | Multifunction Digital Counter |
| Operating Modes | Up, Down, Command, Individual, Quadrature |
| Count Rate | 30 Hz, 5 kHz |
| Display Type | LCD, Dual-Color Characters with Backlight |
| Number of Digits | 6 |
| Input Type | No Voltage, Voltage |
| Output Type | Relay |
| Supply Voltage | 12–24 VDC |
| Reset Methods | External, Front Panel, Programmable |
| Mounting Type | Panel Mount |
| Panel Cutout Dimensions | 45.0 mm x 45.0 mm |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 |
| Operating Temperature Range | -10°C to 55°C |
| Weight | 177.7 g |
Information About H7CX-AD-N
The H7CX-AD-N is part of Omron’s H7CX series, a line of compact digital counters engineered for versatility and durability in control panels. It is constructed with a robust, IP66-rated front face and screw terminal connections to ensure stable operation in demanding environments. The counter supports both no-voltage and voltage inputs and provides relay output for integration with control circuits. Designed for use with 12–24 VDC power supplies, it accommodates a wide range of industrial counting and totalizing tasks.
Key Features:
- Multifunction Counter Operation: Supports preset, totalizer, and combined counting functions.
- Multiple Operating Modes: Enables up, down, command, individual, and quadrature counting.
- Dual-Color LCD Display: Provides clear visual differentiation of operational states with backlighting.
- High Count Rate Capability: Handles input frequencies up to 5 kHz for fast-moving processes.
- Flexible Input Types: Accepts both no-voltage and voltage signal inputs.
- Relay Output Configuration: Allows direct control of external devices and alarms.
- IP66 Front Protection: Ensures resistance to dust and water in panel-mounted installations.
The H7CX-AD-N delivers the reliability and precision required for industrial counting, monitoring, and control applications.
