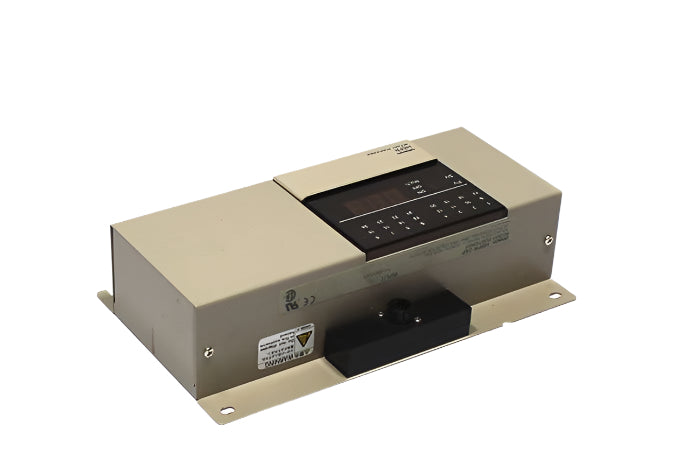

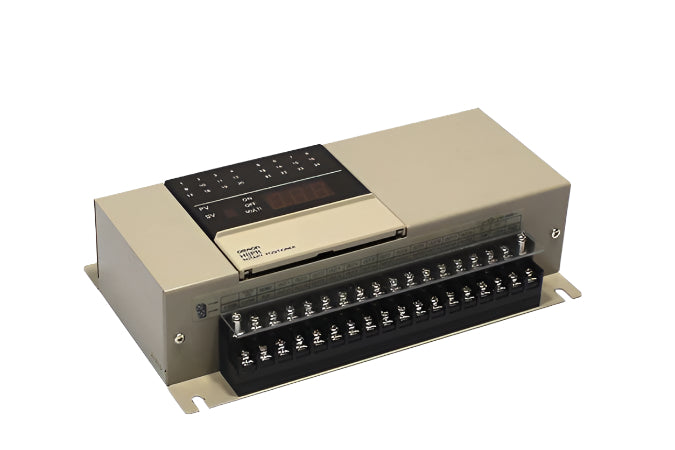

H8PR-24P | Omron Rotary Cam Positioner Module
- Regular price
- $1,704.00
- Sale price
- $1,704.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: H8PR-24P
Description
The Omron H8PR-24P is a rotary cam positioner module that delivers accurate angular control in automation systems. Designed for 100–240 VAC input, it offers flexible output options and dependable operation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Controls & Indicators
|
| Part Number | H8PR-24P |
| Subcategory | Control Accessory |
| Input Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 14 VA |
| Output Type | PNP Open Collector |
| Output Voltage | Up to 30 VDC |
| Mounting Type | Panel Mounting |
| Control Method | Angular Positioning |
| Weight | 3.20 lbs |
Information About H8PR-24P
The H8PR-24P is a rotary cam positioner module from Omron, built to provide high-precision switching based on shaft rotation angle. It supports an input voltage range of 100 to 240 VAC at 50/60 Hz and features a low power consumption of 14 VA, making it efficient for continuous operation in control panels. The unit offers PNP open collector outputs rated for up to 30 VDC, ensuring compatibility with a variety of sensors and PLCs. Its robust functionality allows for controlling multiple cams and setting output signals at specific angular positions. With its easy-to-read interface and straightforward configuration, it helps reduce commissioning time. This makes it well-suited for industrial applications like packaging, indexing, or material handling systems.
Key Features:
- Wide Input Voltage Range – 100 to 240 VAC: Accepts standard AC supply across global power systems at both 50 Hz and 60 Hz.
- Low Power Consumption – 14 VA: Operates efficiently with minimal energy demand for continuous use in automation environments.
- Output Type – PNP Open Collector 30 VDC: Provides reliable, noise-resistant output signals suitable for modern PLC input stages.
- Angular Control Functionality: Enables precise control over multiple output points based on shaft rotation.
- User-Friendly Configuration: Offers a clear interface and simplified setup for reduced installation time and easy maintenance.
- Compact Industrial Design: Engineered for panel-mounted systems where reliability and long-term durability are key.
The H8PR-24P ensures precise position-based output control in rotating machinery and motion automation. It provides durable performance, energy efficiency, and easy integration in complex systems.
