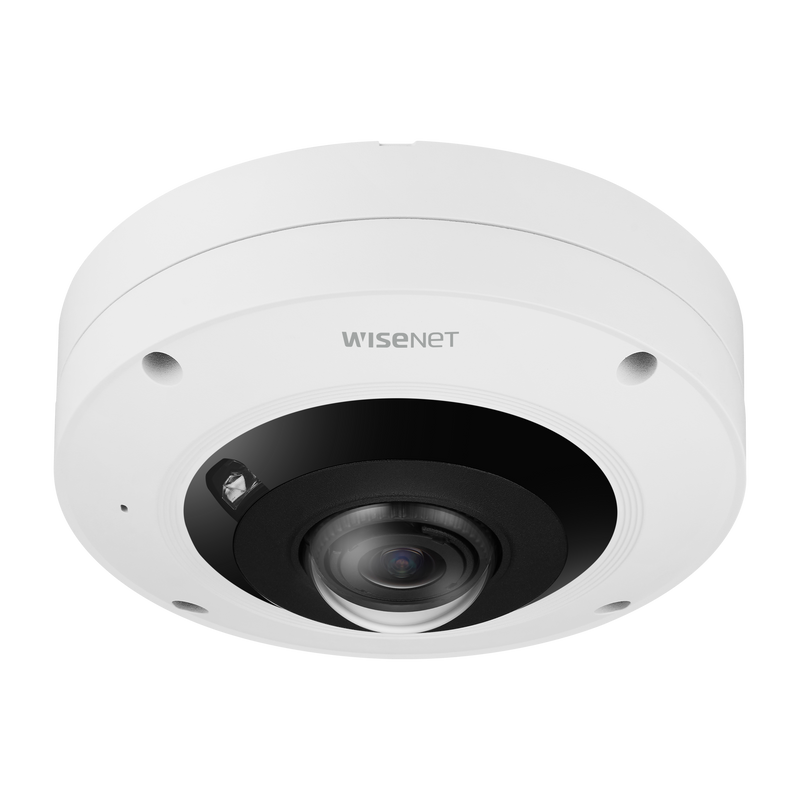

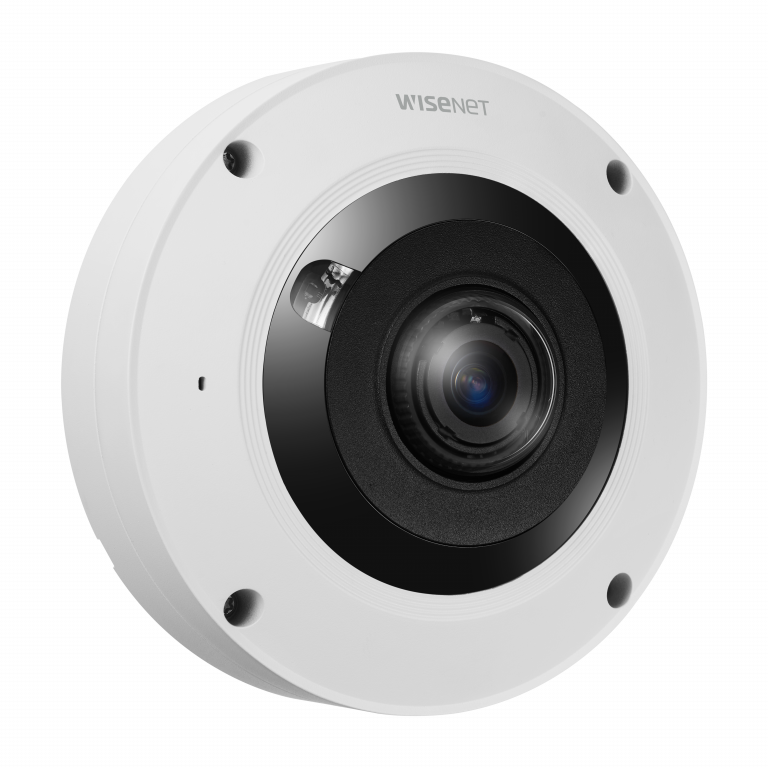

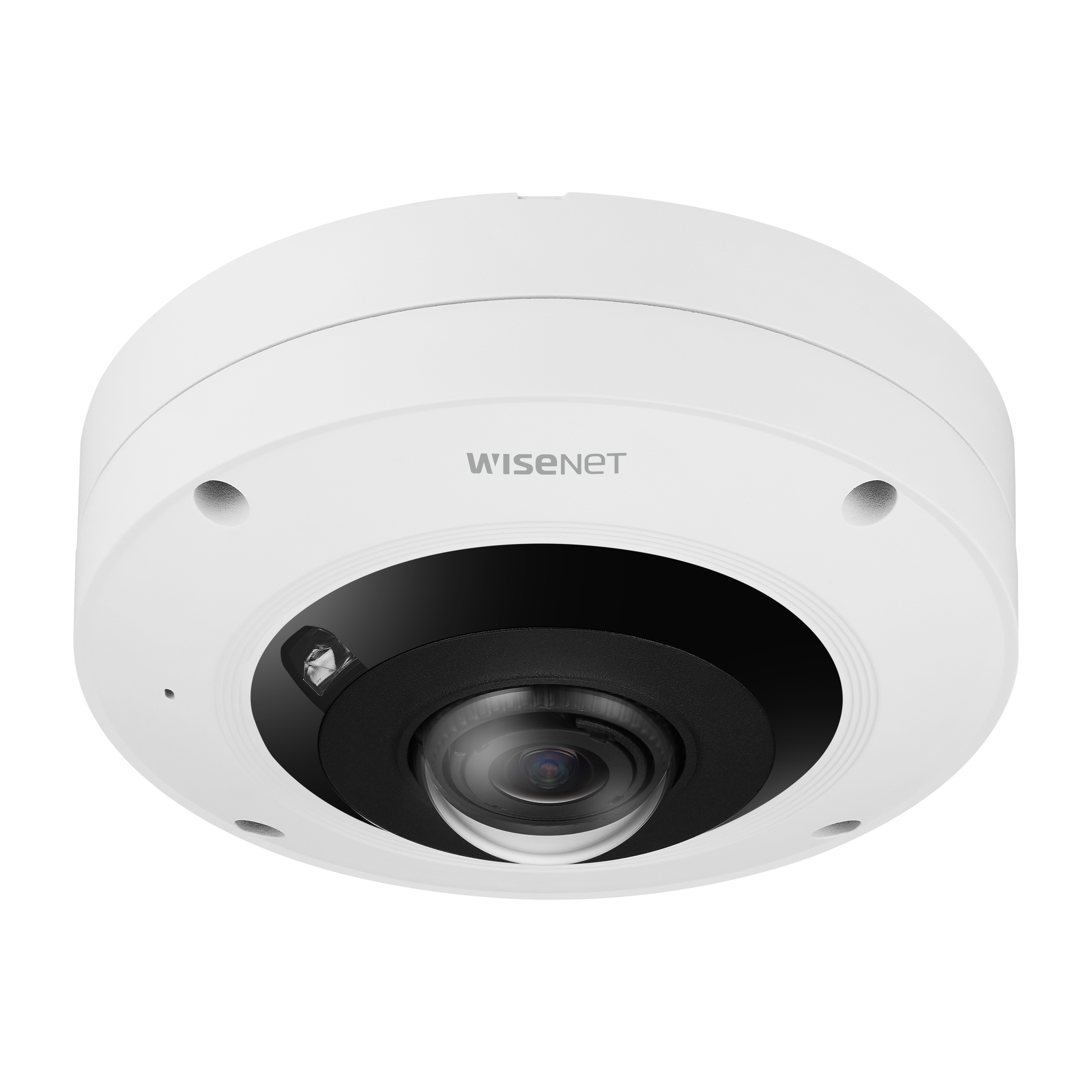

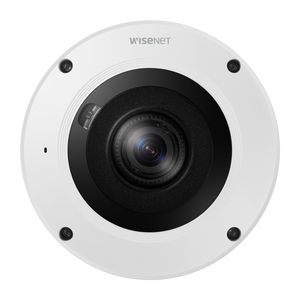

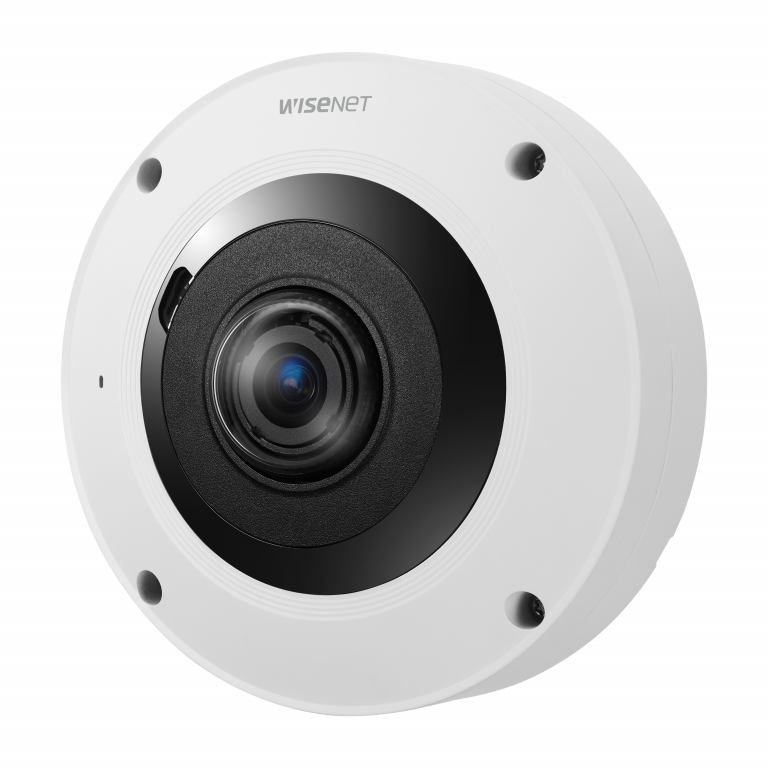

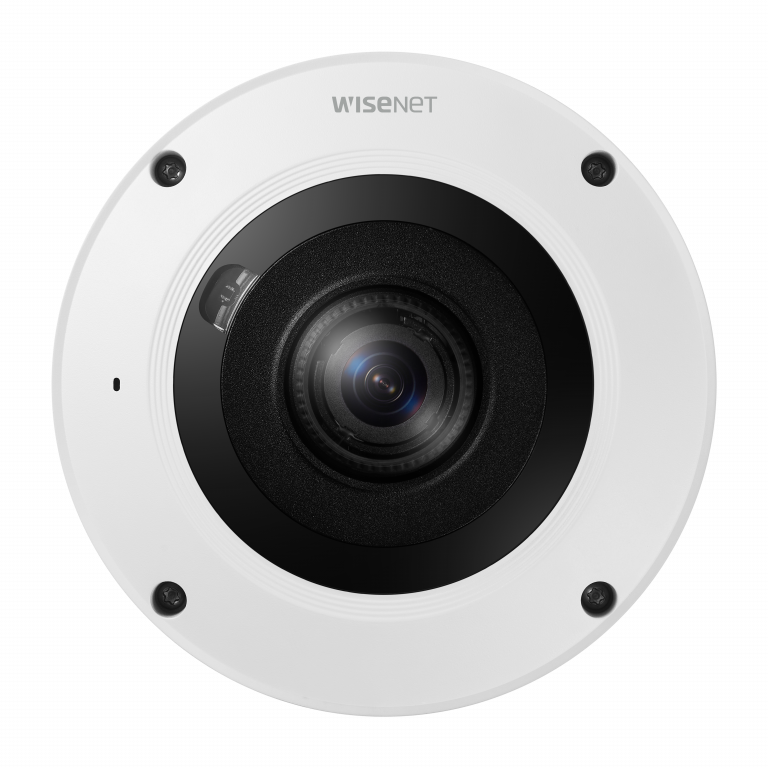

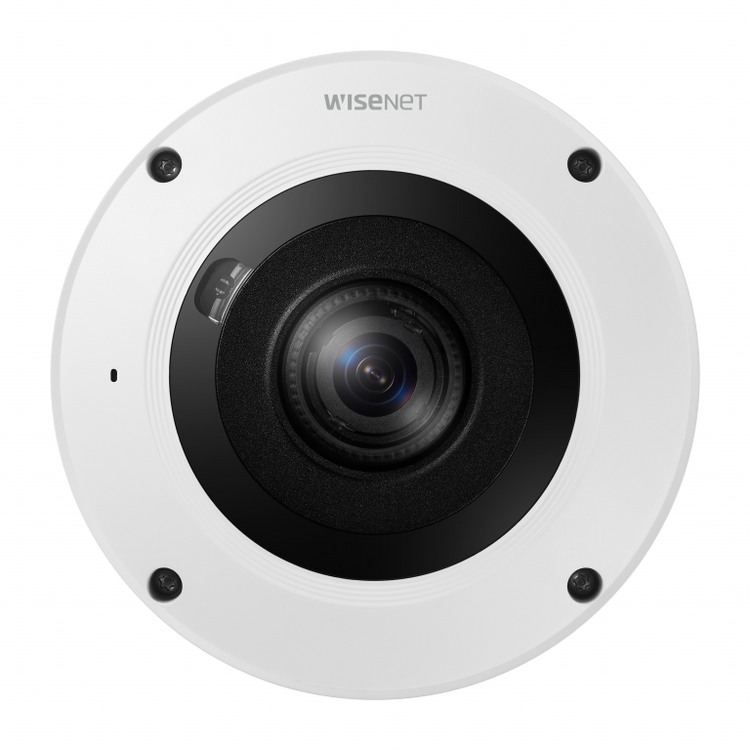

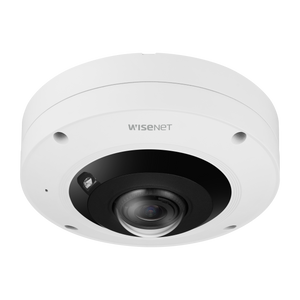

XNF-9013RV | Hanwha Vision 12MP AI IR Fisheye Network Camera
- Regular price
- $1,242.00
- Sale price
- $1,242.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XNF-9013RV
Description
The Hanwha Vision XNF-9013RV is a 12MP AI-powered IR fisheye network camera designed for complete 360° situational awareness without blind spots. Featuring a 1/2.3" CMOS sensor and 3008 × 3008 resolution at up to 30 fps, it delivers high-definition panoramic monitoring with on-board dewarping and digital PTZ. The XNF-9013RV integrates AI-based analytics, WiseStream III compression, and built-in IR illumination for reliable surveillance in large indoor and outdoor areas.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hanwha Vision (Wisenet) |
| Category | Video Surveillance |
| Part Number | XNF-9013RV |
| Subcategory | Fisheye Network Camera |
| Imaging Sensor | 1/2.3" 12MP CMOS |
| Maximum Resolution | 3008 × 3008 |
| Maximum Frame Rate | 30 fps (H.265/H.264) |
| Lens Type | 1.08 mm fixed stereographic |
| Field of View | 187° (H/V/D) |
| Minimum Illumination | 0.39 Lux (Color), 0 Lux (IR On) |
| Wide Dynamic Range | 120 dB (extremeWDR) |
| Video Compression | H.265 / H.264 / MJPEG |
| IR Range | Up to 13 m (PoE+), 8 m (PoE) |
| Edge Storage | Dual Micro SD (Up to 1TB total) |
| Network Interface | RJ-45 (10/100BASE-T) |
| Ingress Protection | IP66, IK10, NEMA 4X |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Input | PoE (IEEE 802.3af), PoE+, 12VDC |
| Power Consumption | Max 23W (PoE+) |
| Dimensions | Ø160 × 72 mm |
| Weight | 2.58 lb |
Information About XNF-9013RV
The XNF-9013RV is part of the Wisenet AI fisheye series, engineered for wide-area coverage in commercial, retail, transportation, and industrial environments. It utilizes a 1.08 mm stereographic lens providing a 187° field of view in all directions and supports multiple viewing modes including fisheye, single panorama, double panorama, and quad view. Built-in Wise IR II technology delivers adjustable infrared coverage up to 13 m (PoE+) with multi-zone management. The camera incorporates TPM 2.0 hardware security, secure boot, encrypted storage, and firmware verification to meet enterprise cybersecurity requirements.
Key Features:
- 12MP 360° Fisheye Imaging: 3008 × 3008 resolution with 187° panoramic coverage.
- AI-Based Object Detection: Detects person, face, vehicle, and license plate with forensic search support.
- Built-in IR Illumination: Wise IR II with adjustable range up to 13 m (PoE+ mode).
- On-Board Dewarping: Supports fisheye, single/double panorama, quad view, and virtual channels.
- Extreme WDR (120 dB): Enhances image clarity in high-contrast lighting conditions.
- WiseStream III Compression: Optimizes bandwidth and storage efficiency.
- Dual SD Card Slots: Supports up to 1TB (512GB × 2) edge storage.
- Rugged Construction: IP66, IK10, and NEMA 4X rated aluminum housing with hard-coated dome.
- Advanced Cybersecurity: TPM 2.0 (FIPS 140-2 Level 2), secure OS, verified firmware.
The XNF-9013RV delivers the reliability and precision required for enterprise-grade panoramic video surveillance and AI-driven analytics.
