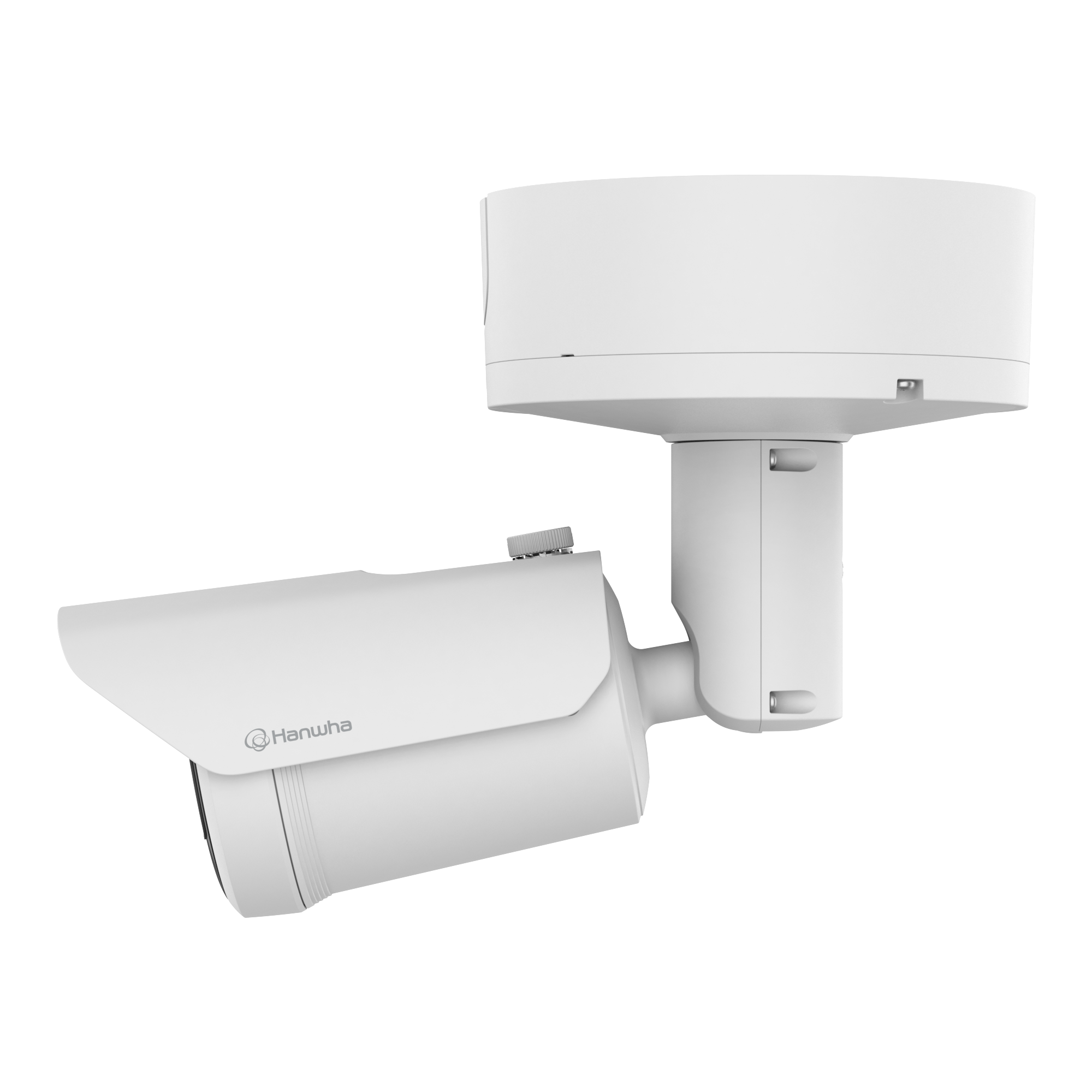

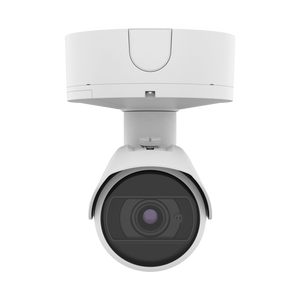

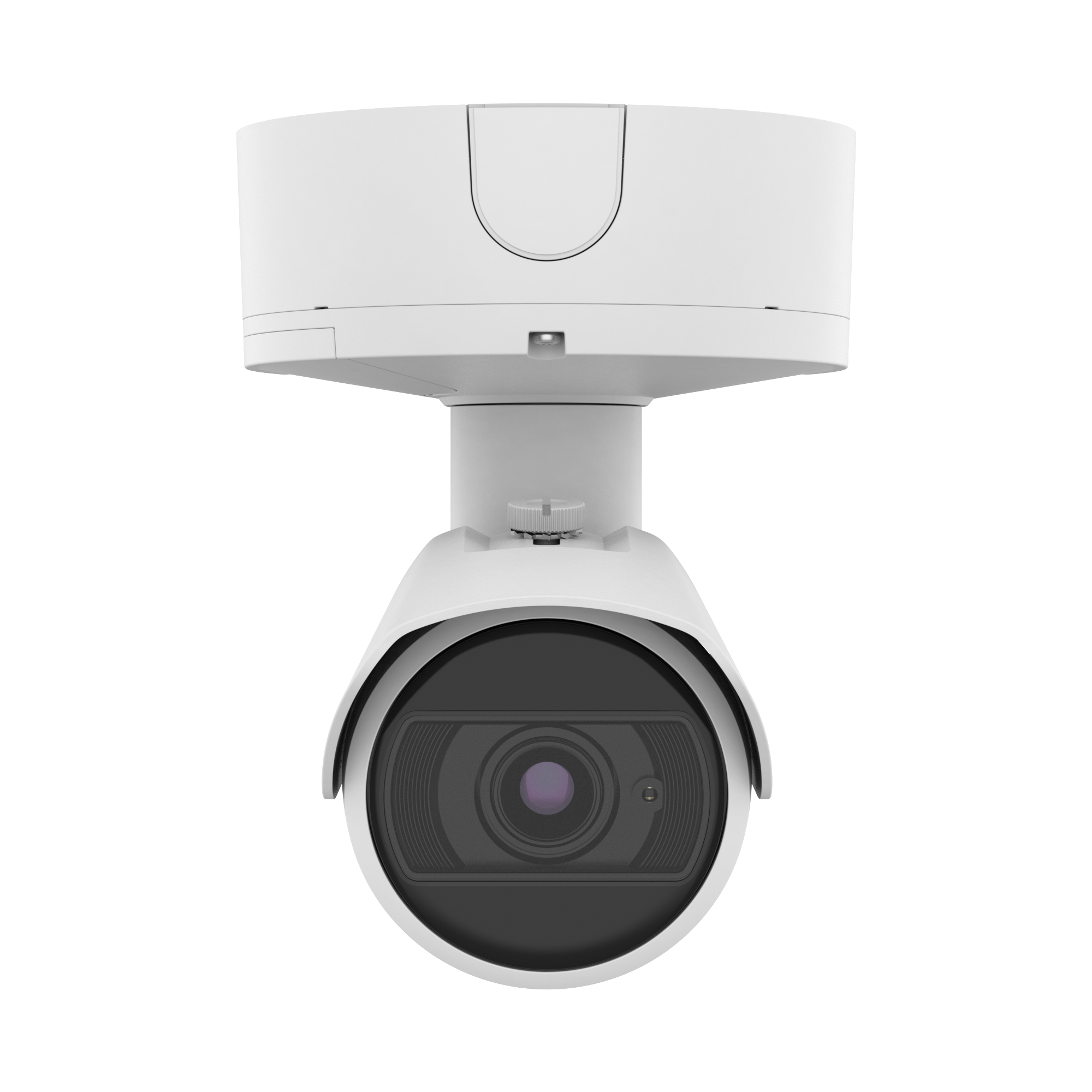

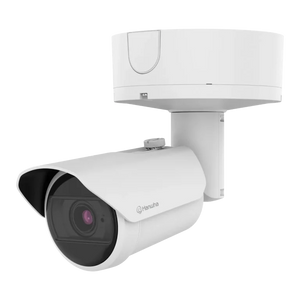

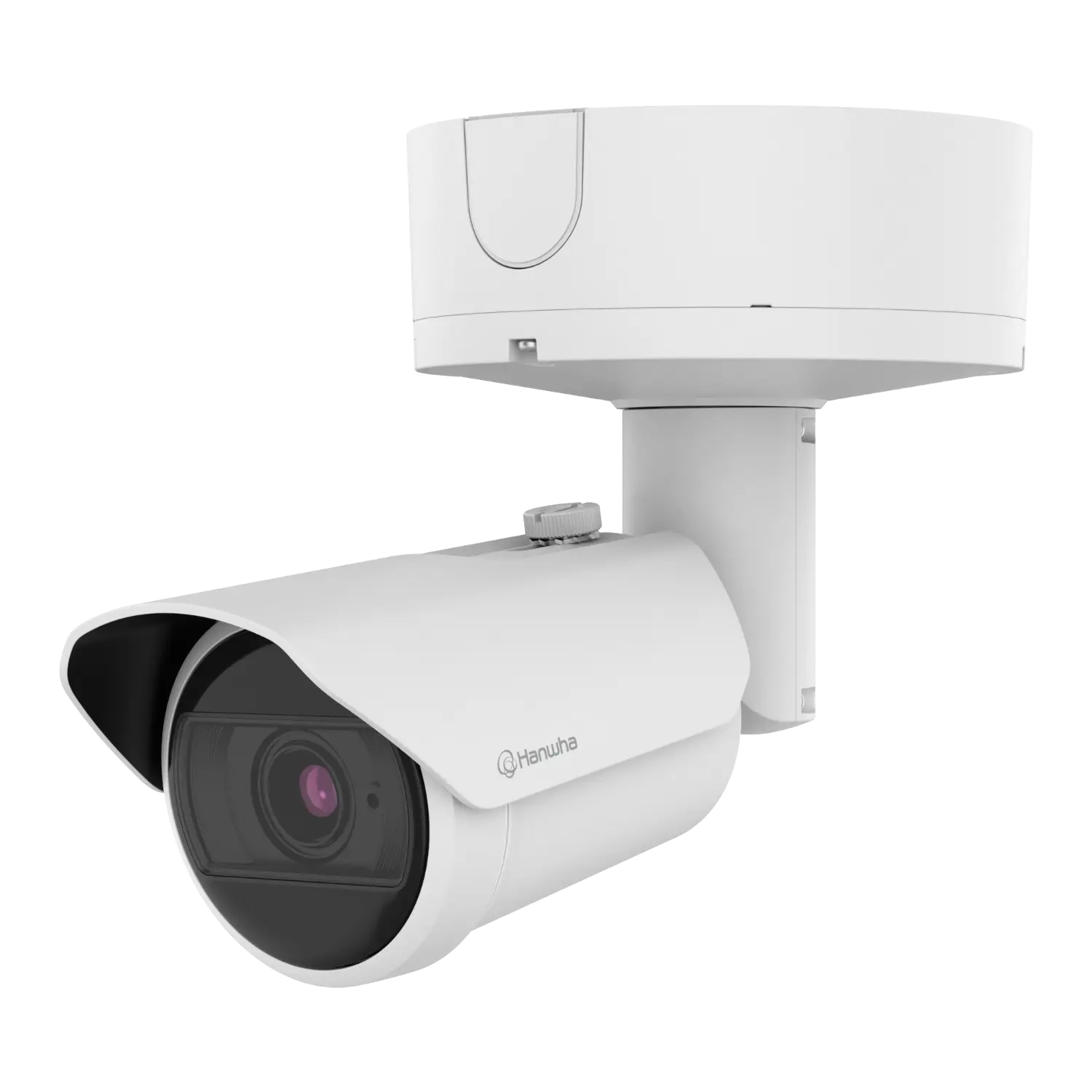

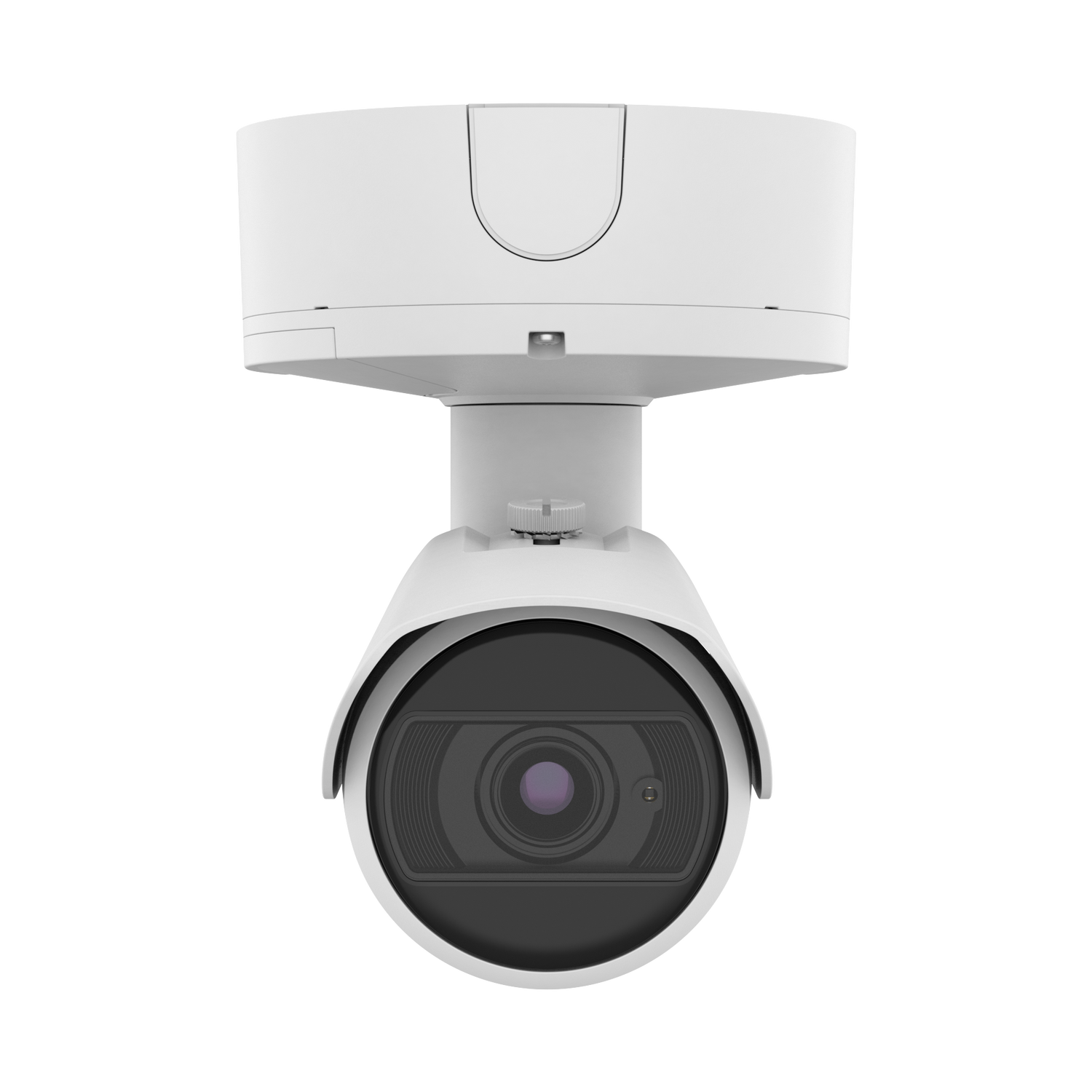

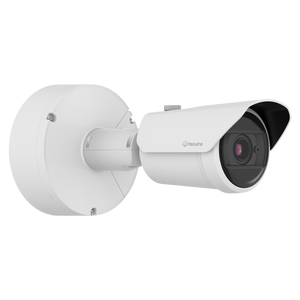

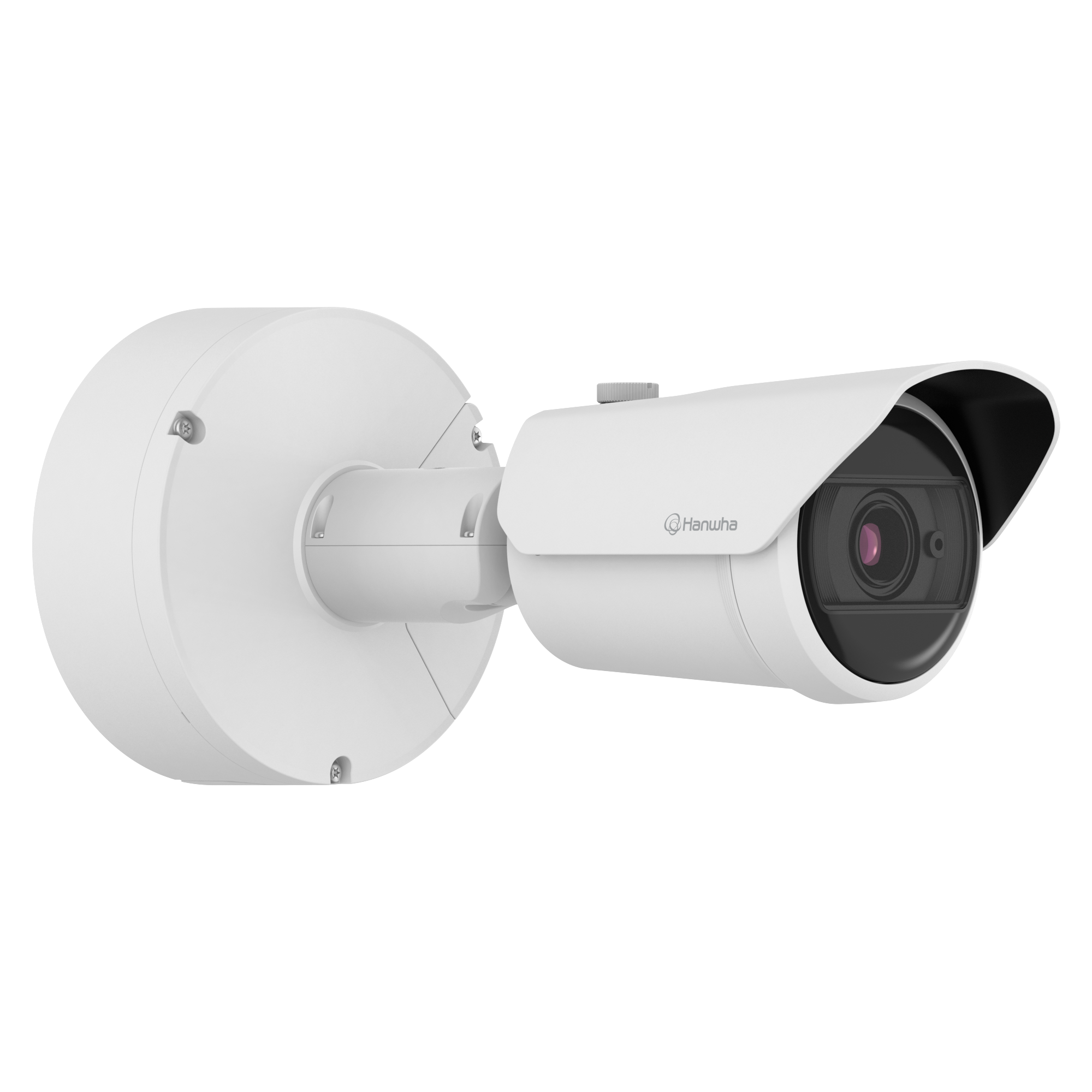

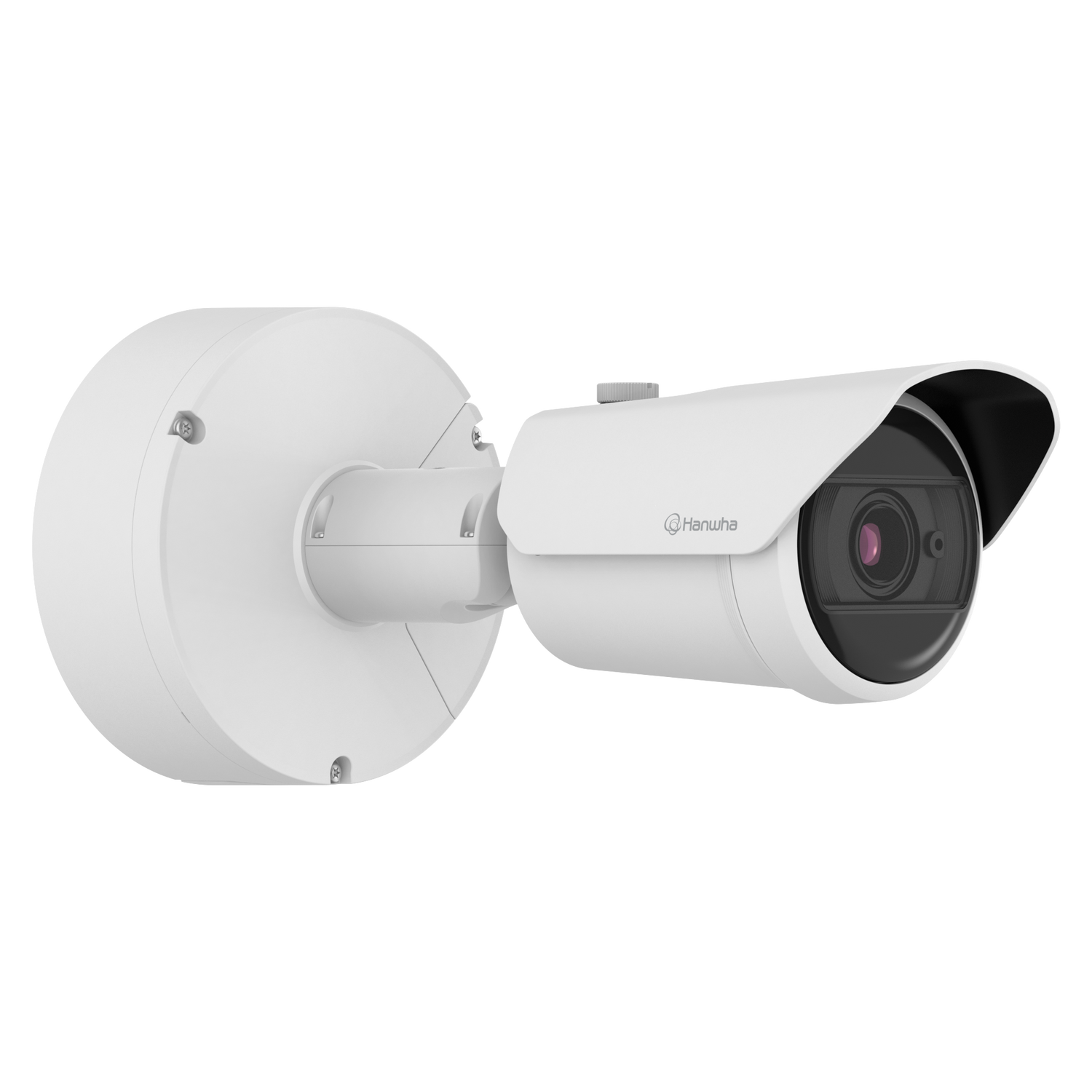

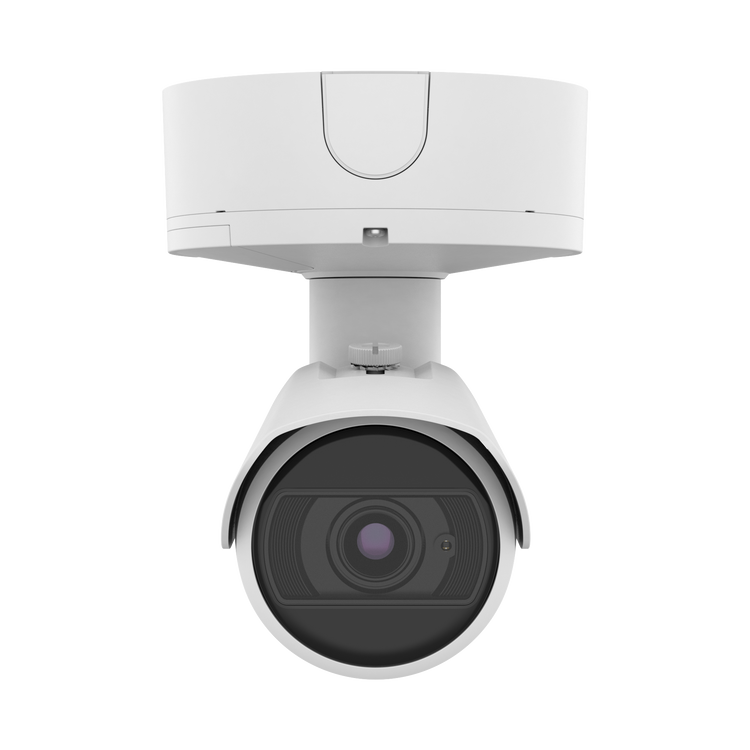

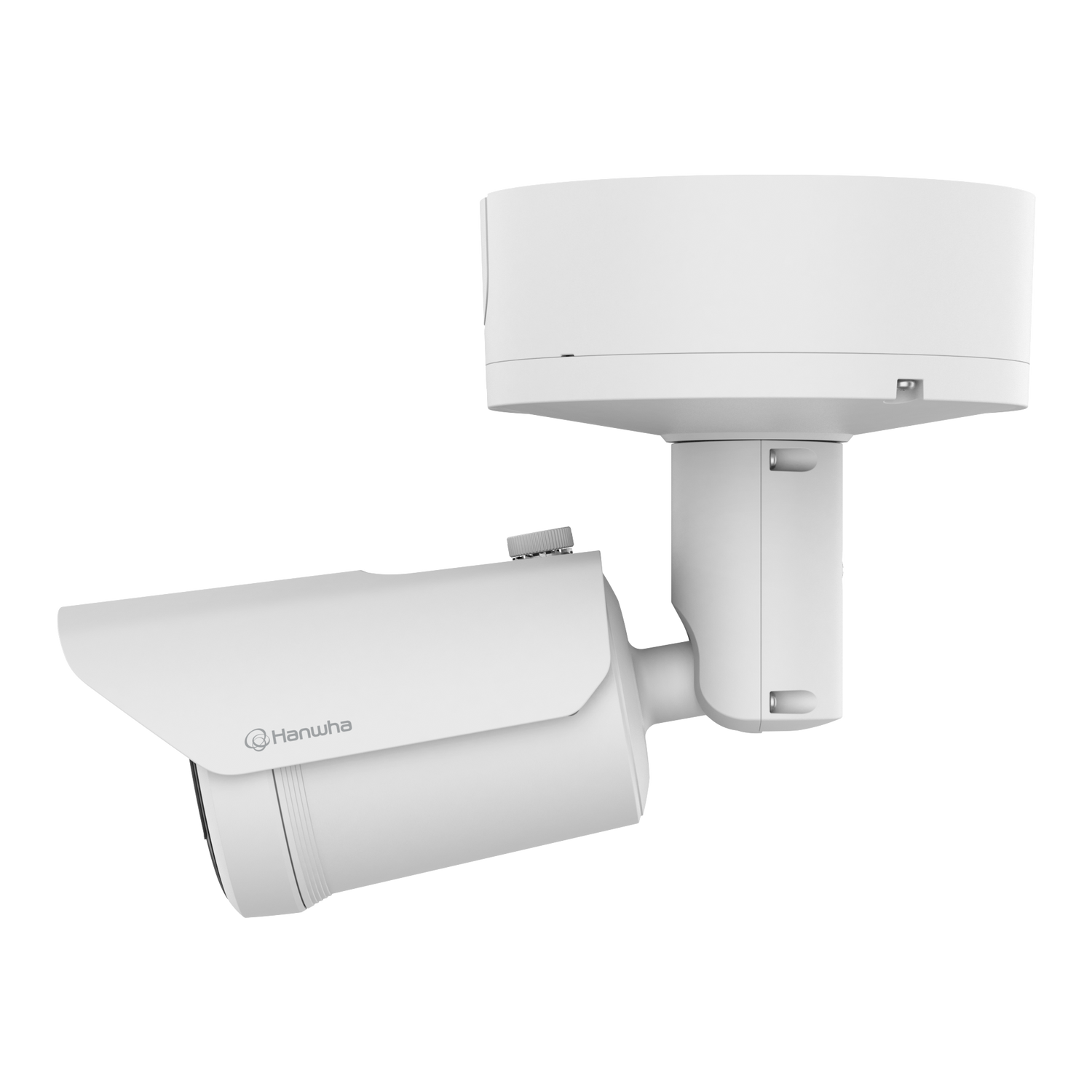

XNO-9083R | Hanwha Vision 4K AI IR Bullet Camera 50m IR, 120dB WDR
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XNO-9083R
Description
The Hanwha Vision XNO-9083R is a 4K AI IR bullet network camera designed for high-resolution surveillance with advanced object analytics. It delivers up to 3840 × 2160 resolution at 30 fps and features AI-based detection for people, vehicles, faces, and license plates. The XNO-9083R integrates WiseIR illumination up to 50 meters and extremeWDR (120 dB) for reliable performance in challenging lighting conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hanwha Vision |
| Category | Video Surveillance |
| Part Number | XNO-9083R |
| Subcategory | 4K AI Bullet Cameras |
| Imaging Sensor | 1/1.8" CMOS |
| Maximum Resolution | 3840 × 2160 (4K) |
| Maximum Frame Rate | 30 fps (H.265/H.264) |
| Minimum Illumination | 0.04 Lux (Color), 0 Lux (IR on) |
| Lens | 4.4–9.3 mm, 2.1x optical zoom, P-iris (IR corrected) |
| Field of View (Horizontal) | 113°–47° |
| Wide Dynamic Range | 120 dB |
| IR Distance | Up to 50 m (164 ft), 850 nm |
| Video Compression | H.265, H.264, MJPEG |
| Network Interface | RJ-45 (10/100/1000BASE-T) |
| Edge Storage | Dual microSD/SDHC/SDXC (up to 1 TB total, up to 2 TB OnCloud configuration) |
| Ingress Protection | IP66/IP67, NEMA 4X |
| Impact Protection | IK10 |
| Operating Temperature | -50°C to +60°C (-58°F to +140°F) |
| Power Input | PoE+ (IEEE 802.3at, Class 4) or 12VDC |
| Power Consumption | Max 22.5 W (PoE), 20 W (12VDC) |
| Dimensions | Ø93.4 × 298.4 mm (3.68 × 11.75 in) |
| Weight | 4.85 lb |
Information About XNO-9083R
The XNO-9083R is part of Hanwha Vision’s X Series AI cameras, engineered for intelligent video analytics and high-performance outdoor monitoring. It utilizes a 1/1.8" CMOS sensor with a 4.4–9.3 mm motorized lens and P-iris control for optimized image clarity across varying scenes. The camera supports H.265, H.264, and MJPEG compression, multiple streaming profiles, and advanced AI-driven analytics including virtual line crossing, intrusion detection, and loitering analysis. Built for harsh environments, it is rated IP66/IP67, NEMA 4X, and IK10, ensuring resistance to dust, water, and impact.
Key Features:
- 4K Ultra HD Resolution: Supports up to 3840 × 2160 video at 30 fps for detailed scene capture.
- AI Object Classification: Detects and classifies person, face, vehicle types, and license plates using onboard NPU analytics.
- WiseIR Illumination (50 m): Integrated 850 nm IR LEDs provide night visibility up to 50 meters (164 ft).
- ExtremeWDR (120 dB): Maintains image clarity in high-contrast lighting conditions.
- Digital Image Stabilization: Built-in gyro sensor reduces image distortion caused by vibration.
- Advanced Event Analytics: Supports intrusion, line crossing, loitering, fog detection, sound classification, shock detection, and appear/disappear events.
- Enhanced Cybersecurity: Secure boot, encrypted firmware, TPM 2.0 (FIPS 140-2 Level 2), and IEEE 802.1X authentication.
- Dual Edge Storage Slots: Supports dual microSD cards for local event recording and redundancy.
The XNO-9083R delivers the reliability and precision required for AI-powered perimeter monitoring and high-resolution outdoor surveillance systems.
