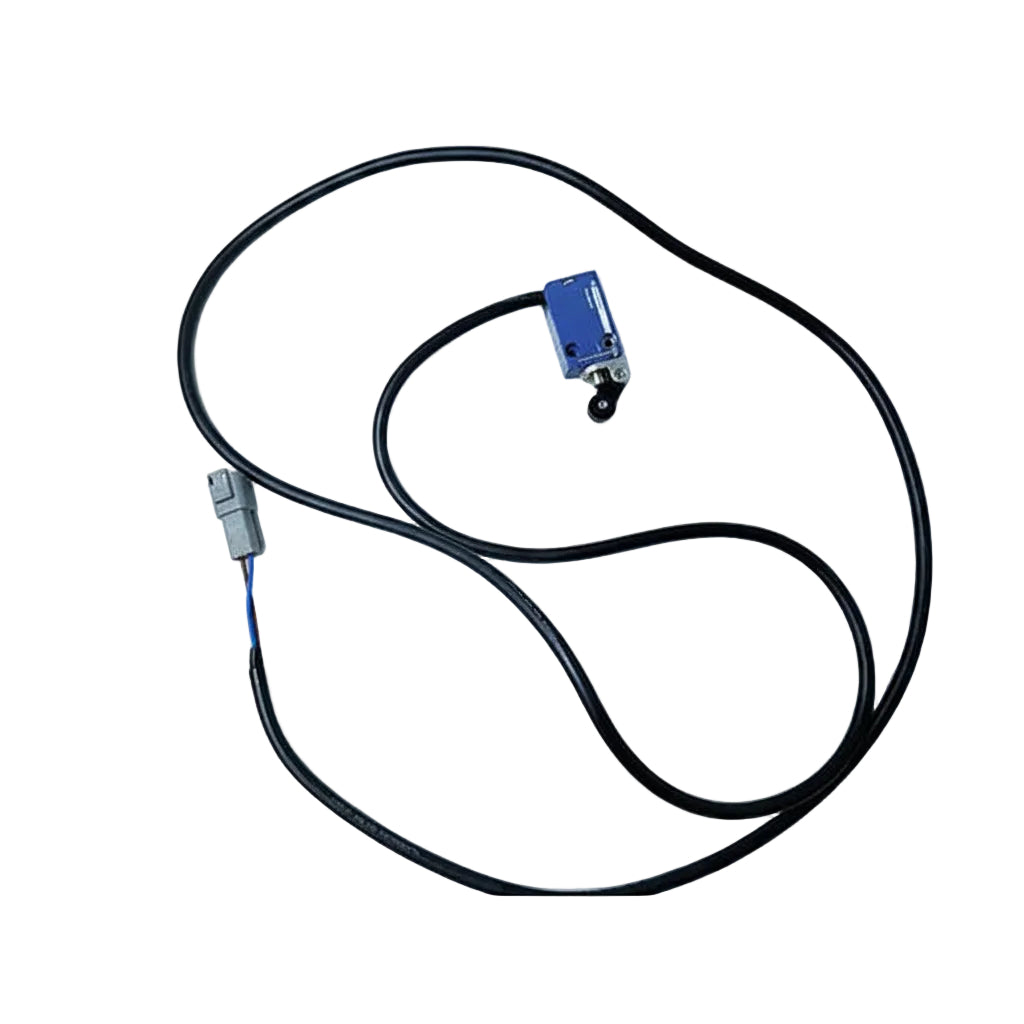

Haulotte 4000109520 OEM Outrigger Switch Assembly for 4527A 45XA 55XA Boom Lifts
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4000109520
Description
The Haulotte 4000109520 is an OEM outrigger switch assembly designed for the stabilizer system on compatible Haulotte aerial work platforms. It provides electrical position or status input from the outrigger assembly to the machine control system, supporting proper stabilizer monitoring during equipment operation. Haulotte parts documentation identifies it specifically as a normally open (NO) outrigger switch assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Haulotte |
| Category | Lift Replacement Parts |
| Part Number | 4000109520 |
| Subcategory | Outrigger Switch Assemblies |
| Part Classification | OEM Replacement Component |
| Switch Configuration | Normally Open (NO) |
| Primary Function | Outrigger Status / Position Switching |
| Application | Stabilizer / Outrigger System |
| Equipment Type | Aerial Work Platform / Boom Lift |
| Published Compatibility | Haulotte 4527A, 45XA/HLA16PX, 55XA/HLA19PX |
| Switch Body | A-03631 |
| Switch Head | A-03632 |
| Wire Harness | 4000109510 |
| Electrical Interface | Male Contacts and Plug Connections |
| Weight | 0.1 lb |
Information About 4000109520
The 4000109520 is an outrigger switch assembly manufactured for integration into Haulotte lift stabilization systems. The assembly incorporates a switch body, switch head, wire harness, electrical contacts, and plug connections as part of its OEM configuration. Haulotte documentation specifies the assembly as NO (normally open), and published applications include the 45XA/HLA16PX and 55XA/HLA19PX, while supplier listings also identify compatibility with the 4527A. It functions as part of the outrigger electrical circuit, providing switching input associated with stabilizer positioning and machine control logic.
Key Features:
- Outrigger Switching: Provides electrical switching input associated with the lift's stabilizer system.
- Normally Open Configuration: Haulotte documentation identifies the switch assembly as an NO (normally open) configuration.
- OEM Assembly: Manufactured as a genuine Haulotte replacement component for compatible aerial lift equipment.
- Integrated Switch Body: Incorporates the dedicated switch body required for mechanical-to-electrical switching operation.
- Switch Head: Includes a separate switch head designed to interface with the outrigger mechanism.
- Wiring Integration: Uses an integrated wire harness and electrical contacts for connection to the equipment control circuit.
- Multi-Model Compatibility: Published applications include Haulotte 4527A, 45XA/HLA16PX, and 55XA/HLA19PX equipment.
- Stabilizer System Application: Installed as part of the machine's outrigger assembly for stabilizer status detection.
The 4000109520 delivers the reliability and precision required for outrigger position switching and stabilizer monitoring on compatible aerial work platforms.
