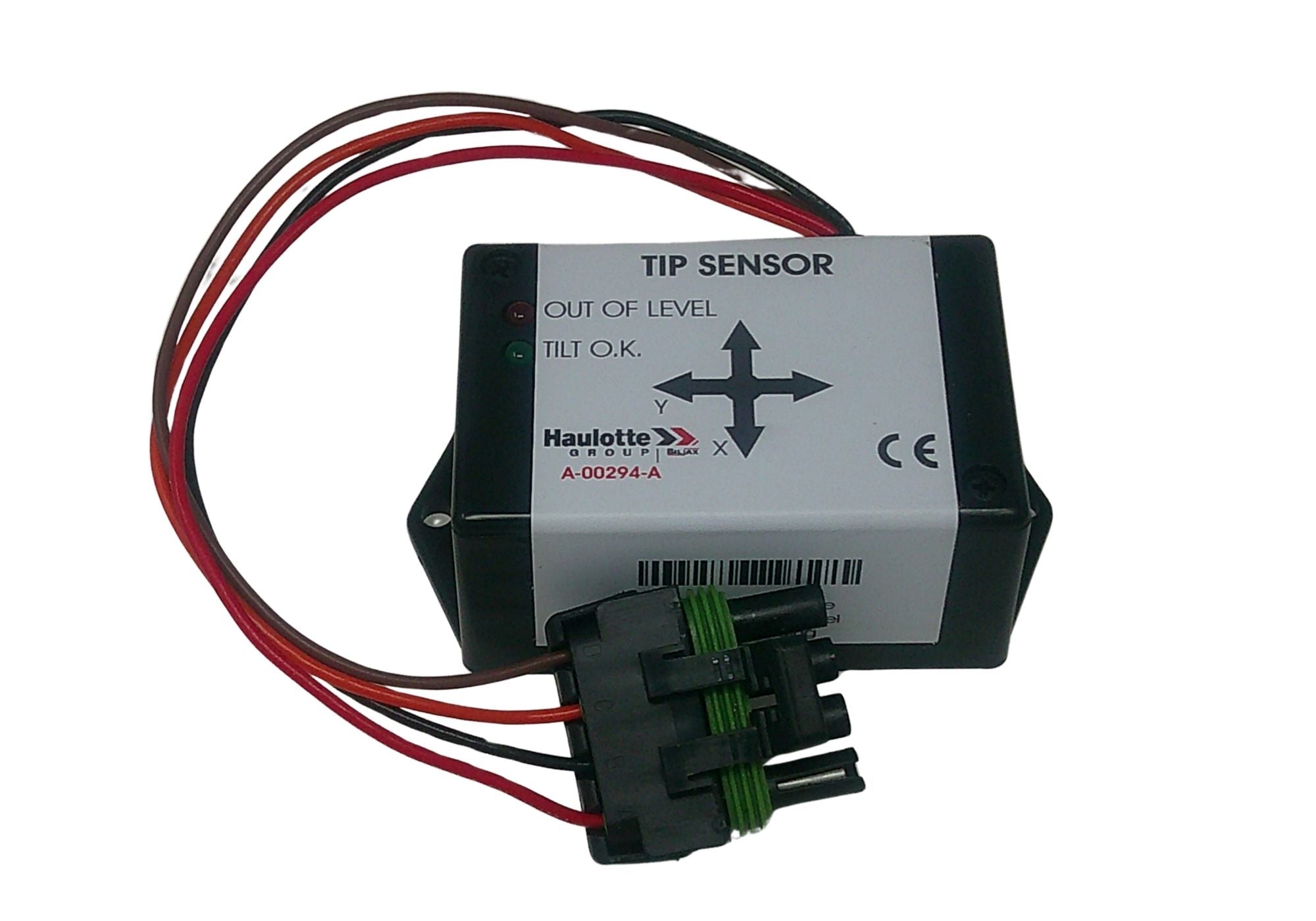

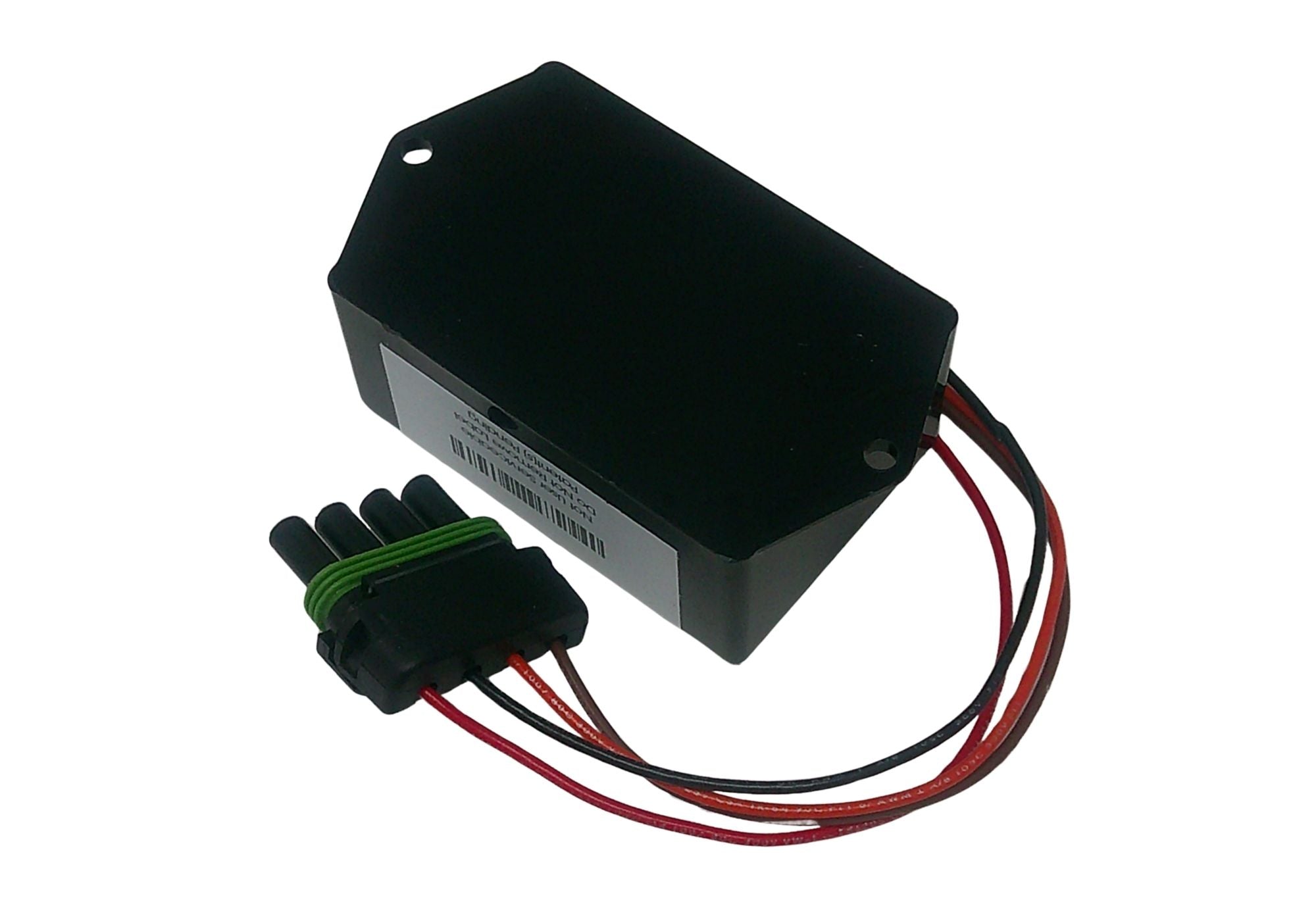

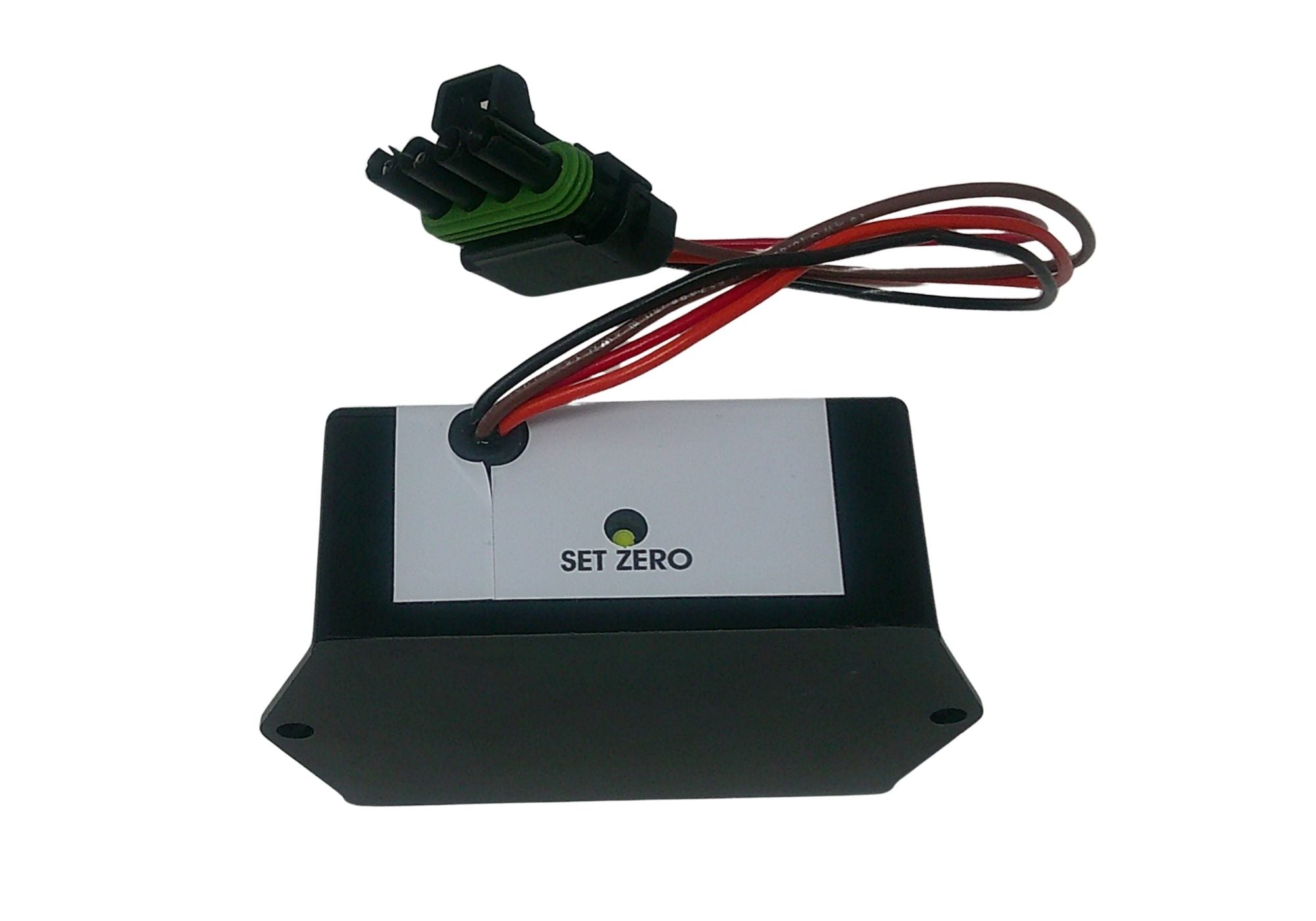

Haulotte A-00294 Dual-Axis 0–5V Level Sensor for Bil-Jax Towable Boom Lifts
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A-00294
Description
The Haulotte A-00294 is a dual-axis level sensor designed to monitor chassis inclination on compatible Haulotte and Bil-Jax aerial lifts. It measures X-axis and Y-axis positioning and provides a 0–5V output signal to the machine control system for level and safety monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Haulotte |
| Category | Sensors & Controls |
| Part Number | A-00294 |
| Subcategory | Level & Tilt Sensors |
| Component Type | Dual-Axis Level Sensor |
| Sensor Type | Electronic Tilt / Level Sensor |
| Measurement Axes | X and Y |
| Output Signal | 0–5V |
| Monitored Parameters | Pitch and Roll |
| Equipment Type | Towable Aerial Boom Lift |
| Compatible Equipment Make | Haulotte / Bil-Jax |
| Compatible Models | 3522A, 4527A, 5533A, 6543A, 3632T |
| Primary Function | Chassis Inclination Monitoring |
| System Application | Level and Safety Control System |
| Weight | 1 lb |
Information About A-00294
The A-00294 is a solid-state level and tilt sensor used in selected Haulotte and Bil-Jax towable boom lift platforms. Its dual-axis design monitors both pitch and roll while providing variable 0–5V output signals to the equipment control system. The sensor is associated with Summit Series machines including the 3522A, 4527A, 5533A, 6543A, and 3632T. During operation, level information from the sensor supports the machine's inclination monitoring and safety-control functions.
Key Features:
- Dual-Axis Monitoring: Measures chassis inclination across both X and Y axes.
- 0–5V Output: Provides variable voltage signals for electronic level monitoring.
- Solid-State Design: Uses electronic sensing rather than a mechanical level-switch mechanism.
- Pitch Detection: Monitors front-to-rear chassis inclination during equipment operation.
- Roll Detection: Measures side-to-side inclination for level verification.
- Safety System Integration: Supplies inclination data used by the lift's control and safety circuits.
- Boom Lift Application: Designed for selected Haulotte and Bil-Jax aerial work platforms.
- Model Compatibility: Associated with 3522A, 4527A, 5533A, 6543A, and 3632T equipment.
The A-00294 delivers the reliability and precision required for electronic level monitoring in compatible aerial work platforms.
