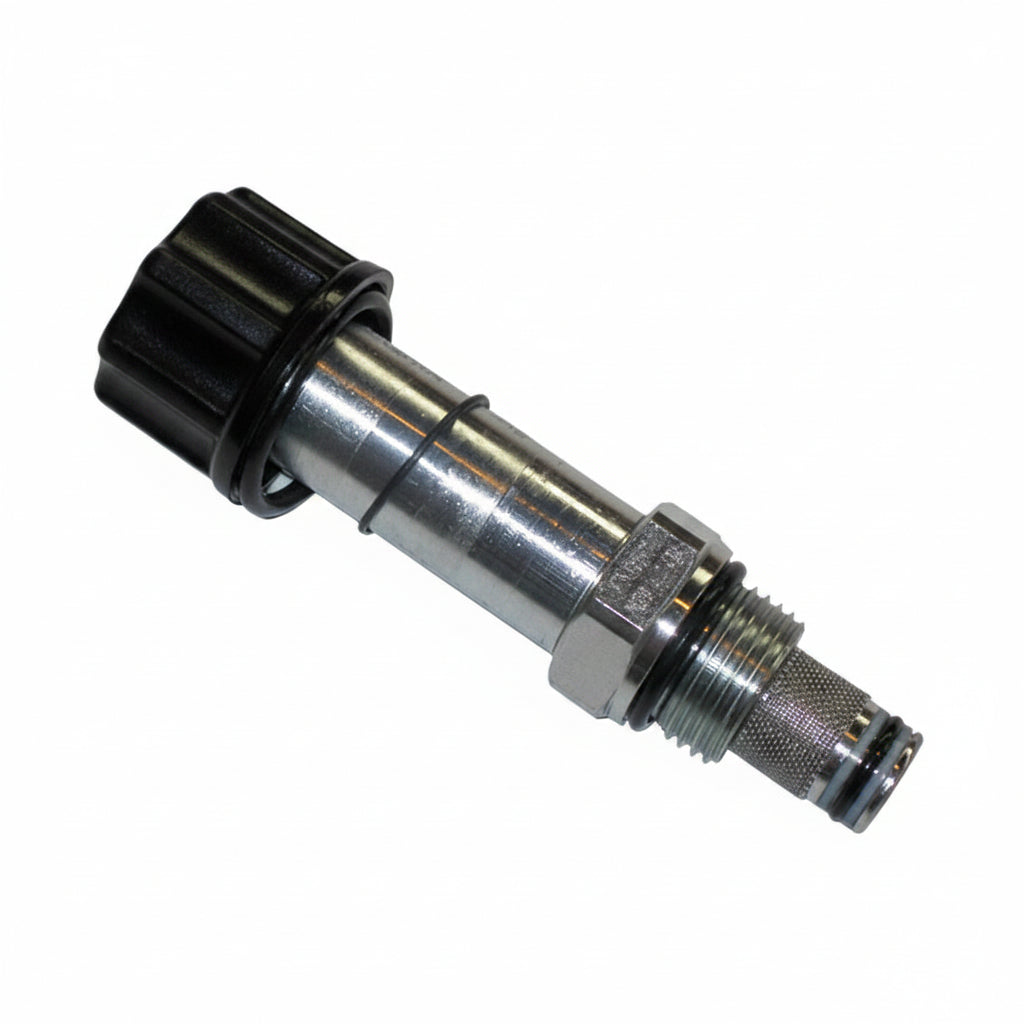

Haulotte B02-04-0118 WS08W-30-C-N-O Hydraulic Cartridge Valve for Outrigger Systems
- Regular price
- $695.00
- Sale price
- $695.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B02-04-0118
Description
The Haulotte B02-04-0118 is a hydraulic cartridge valve identified by the WS08W-30-C-N-O configuration and designed for compatible Haulotte aerial lift hydraulic systems. It is used in the outrigger cylinder circuit, where it supports hydraulic fluid control associated with stabilizer operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Haulotte |
| Category | Hydraulics |
| Part Number | B02-04-0118 |
| Subcategory | Hydraulic Cartridge Valves |
| Product Type | Cartridge Valve |
| Valve Model | WS08W-30-C-N-O |
| Primary Application | Outrigger Hydraulic System |
| Installation Area | Outrigger Cylinder |
| Equipment Type | Aerial Work Platforms |
| Compatible Coil | B01-08-0022 |
| Replaces | B02-04-0102 |
| Published Compatibility | 3522A, 3632T, 4527A, 5533A, 6543A, 45XA, 55XA |
| Length | 4 in |
| Width | 1 in |
| Height | 1 in |
| Weight | 0.363 lbs |
Information About B02-04-0118
The B02-04-0118 is a hydraulic cartridge valve used as part of the outrigger assembly on selected Haulotte and Bil-Jax aerial work platforms. Haulotte service documentation identifies the valve as an outrigger cylinder component and notes that it replaced B02-04-0102 effective in 2007. The valve operates with the B01-08-0022 coil in applicable configurations and integrates directly into the hydraulic cylinder circuit. Published compatibility includes 3632T, 3522A, 4527A, 5533A, 6543A, 45XA, and 55XA equipment.
Key Features:
- Hydraulic Cartridge Design: Compact valve configuration designed for integration into a hydraulic circuit.
- WS08W-30-C-N-O Configuration: Identified by the specified hydraulic valve configuration for equipment-specific replacement.
- Outrigger Application: Used within the hydraulic outrigger system of compatible Haulotte equipment.
- Cylinder Integration: Haulotte documentation identifies the component as a valve installed with the outrigger hydraulic cylinder.
- Coil Compatibility: Designed to operate with the B01-08-0022 coil in applicable assemblies.
- Replacement Reference: Replaces the earlier B02-04-0102 valve according to Haulotte service documentation.
- Multi-Model Compatibility: Used on multiple Haulotte/Bil-Jax towable and articulated aerial platforms.
- Compact Construction: Published dimensions are approximately 4 × 1 × 1 inches.
The B02-04-0118 delivers the reliability and precision required for hydraulic fluid control in compatible aerial lift outrigger systems.
