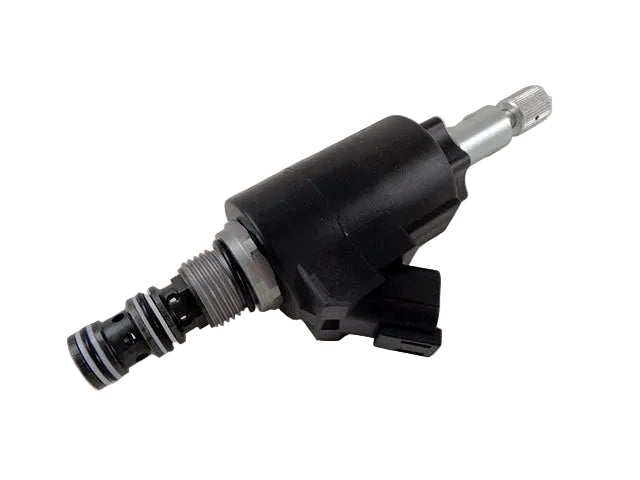

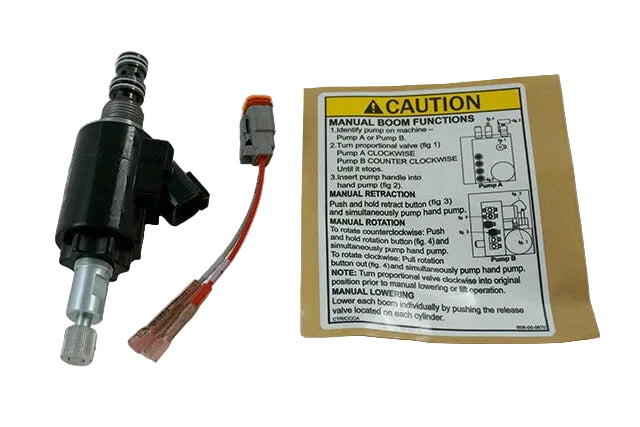

Haulotte B02-14-0094L JP02P 2150NL Proportional Hydraulic Cartridge Valve
- Regular price
- $755.00
- Sale price
- $755.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B02-14-0094L
Description
The Haulotte B02-14-0094L is a proportional hydraulic cartridge valve designed to regulate fluid flow in compatible Haulotte and Bil-Jax aerial work platforms. It provides controlled hydraulic response for variable-speed boom functions, including lifting, swing, and telescoping operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Haulotte |
| Category | Hydraulics |
| Part Number | B02-14-0094L |
| Subcategory | Proportional Valves |
| Component Type | Proportional Hydraulic Cartridge Valve |
| Valve Type | Flow Control |
| Valve Designation | JP02P 2150NL |
| Original Valve Manufacturer | Hydac |
| Hydac Part Number | 02582850 |
| Actuation Type | Electromagnetic Proportional |
| Installation Type | Hydraulic Manifold Cartridge |
| Associated Coil | B02-14-0095 |
| Primary Function | Variable Hydraulic Flow Regulation |
| Compatible Equipment Make | Haulotte / Bil-Jax |
| Compatible Towable Models | 3522A, 4527A, 5533A, 6543A |
| Compatible Self-Propelled Models | 45XA, 55XA, 36XT |
| Application | Aerial Work Platform Hydraulic System |
| Weight | 0.55 lbs |
Information About B02-14-0094L
The B02-14-0094L is a Hydac-based proportional valve cartridge used in hydraulic control systems on selected Haulotte and Bil-Jax boom lifts. Its cartridge construction is designed for installation within the machine's hydraulic manifold, where it meters fluid according to the electrical command supplied through the associated proportional solenoid coil. The valve is associated with towable boom models such as the 3522A, 4527A, 5533A, and 6543A, as well as selected 45XA, 55XA, and 36XT applications. It is identified with the JP02P 2150NL configuration and Hydac reference 02582850 for component identification and service matching.
Key Features:
- Proportional Flow Control: Meters hydraulic fluid to provide variable rather than fixed-speed hydraulic movement.
- Cartridge Configuration: Designed for installation directly into the applicable hydraulic manifold assembly.
- Hydac Reference: Cross-referenced with Hydac component number 02582850.
- Valve Designation: Identified as the JP02P 2150NL proportional valve configuration.
- Solenoid Operation: Functions with the corresponding proportional solenoid coil to convert electrical commands into hydraulic flow adjustment.
- Boom Function Control: Supports controlled movement of hydraulic lift, swing, telescope, and related functions depending on machine configuration.
- Multi-Model Application: Used on selected Haulotte/Bil-Jax towable and self-propelled aerial work platforms.
- Service Identification: B02-14-0094L provides the primary Haulotte/Bil-Jax reference for matching the original valve configuration.
The B02-14-0094L delivers the reliability and precision required for proportional hydraulic flow regulation in compatible aerial work platforms.
