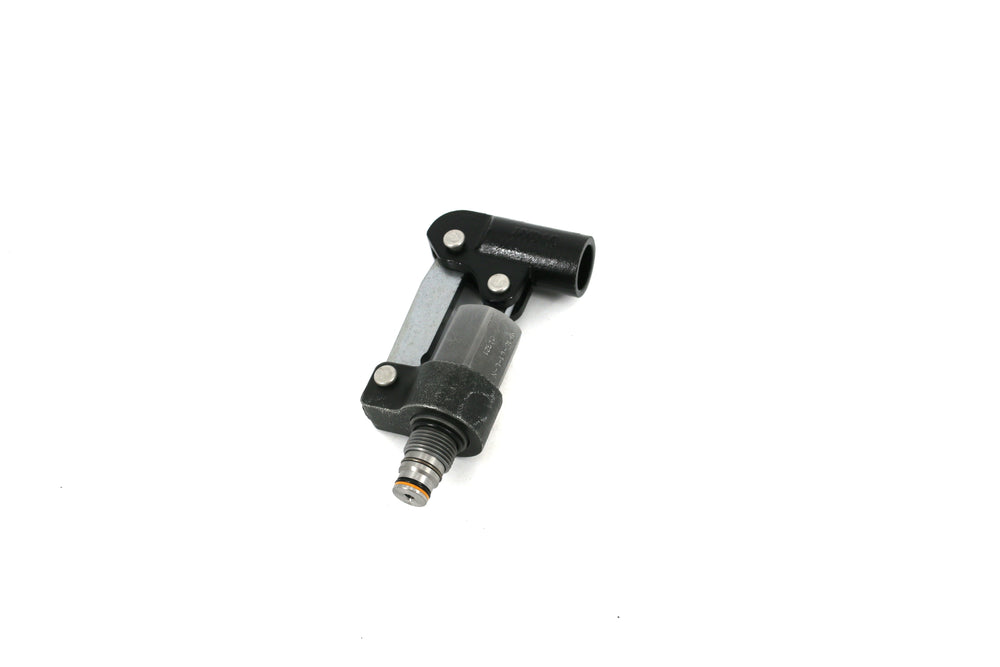

Haulotte B02-15-0472 Manual Hydraulic Pump for Boom Extension Retraction and Rotation
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B02-15-0472
Description

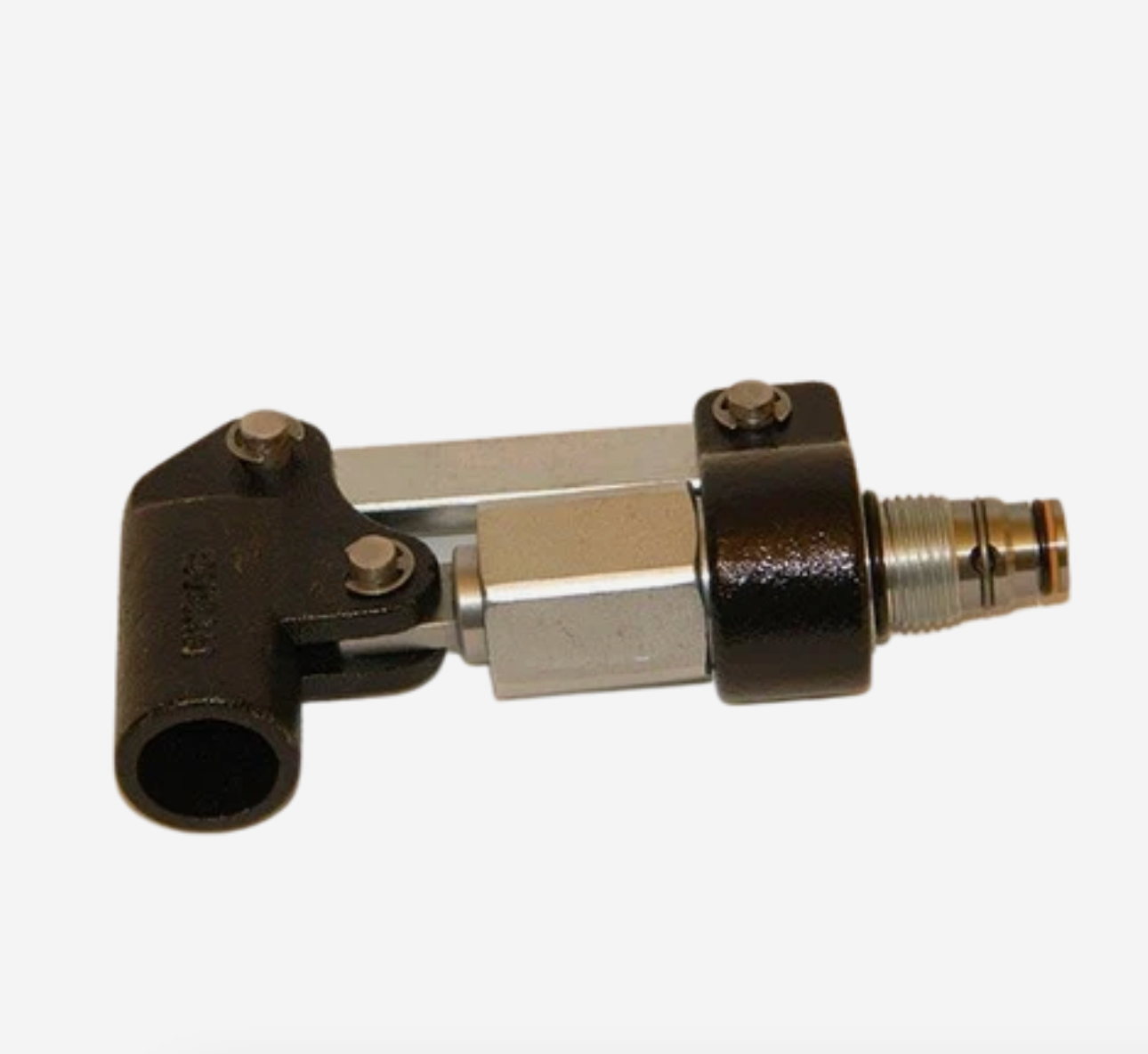

The Haulotte B02-15-0472 is a manual hydraulic pump used within the hydraulic power system of compatible Haulotte and Bil-Jax aerial work platforms. It provides manual hydraulic pressure for boom extension, retraction, and rotation functions, allowing these movements to be operated without relying on the electrically driven pump. Haulotte parts documentation identifies B02-15-0472 as the manual pump within the main pump and valve manifold assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Haulotte |
| Category | Hydraulic Components |
| Part Number | B02-15-0472 |
| Subcategory | Manual Hydraulic Pump |
| Product Type | Manual Pump |
| Operation | Manually Operated Hydraulic |
| Primary Functions | Boom Extension, Retraction, Rotation |
| Hydraulic Design | Two-Way Cartridge Hand Pump |
| Cross-Reference | MP10-01-C-N, MP1001CN |
| Seal Material | Nitrile |
| Hydraulic Cavity | FC10-2 |
| Compatible Equipment | Haulotte and Bil-Jax Aerial Work Platforms |
| Documented Models | 3522A, 3632T, 4527A, 5533A, 55XA, HLA19PX and Selected HTA and HS Series |
| Installation Area | Hydraulic Pump and Valve Manifold Assembly |
| Weight | 1.30 lbs |
Information About B02-15-0472
The B02-15-0472 is a manually operated hydraulic pump specified for the extend, retract, and rotate circuits of compatible Haulotte and Bil-Jax lift equipment. It installs as part of the hydraulic pump assembly alongside the valve housing, cartridge valves, check valves, counterbalance valves, and other hydraulic control components. Haulotte parts documentation confirms its use in equipment including the 3522A and 55XA, while replacement-parts data lists additional compatibility with models such as the 3632T, 4527A, 5533A, HLA19PX, and several HTA and HS series machines. Cross-reference information identifies MP10-01-C-N and MP1001CN as corresponding replacement numbers, with the underlying manual pump using a two-way hydraulic cartridge design and nitrile seals.
Key Features:
- Manual Hydraulic Operation: Generates hydraulic pressure manually without requiring electrical pump operation.
- Boom Function Support: Used for hydraulic boom extension, retraction, and rotation functions.
- Pump Assembly Integration: Installs within the machine hydraulic pump and valve manifold assembly.
- Hydraulic Cartridge Design: Cross-referenced to the MP10-01-C-N two-way manual hydraulic pump configuration.
- Nitrile Sealing: The corresponding MP10-01-C-N pump specification uses nitrile sealing material for hydraulic service.
- Multiple Model Compatibility: Listed for Haulotte models including 3522A, 3632T, 4527A, 5533A, 55XA, HLA19PX, and selected HTA and HS series lifts.
- Genuine Replacement Application: Genuine Haulotte B02-15-0472 is supplied specifically as a replacement manual boom pump.
- Service and Emergency Function: Provides a manually powered means of operating designated hydraulic circuits during equipment servicing or when normal powered operation is unavailable.
The B02-15-0472 delivers the reliability and precision required for manual hydraulic operation of boom extension, retraction, and rotation functions in compatible aerial work platforms.
