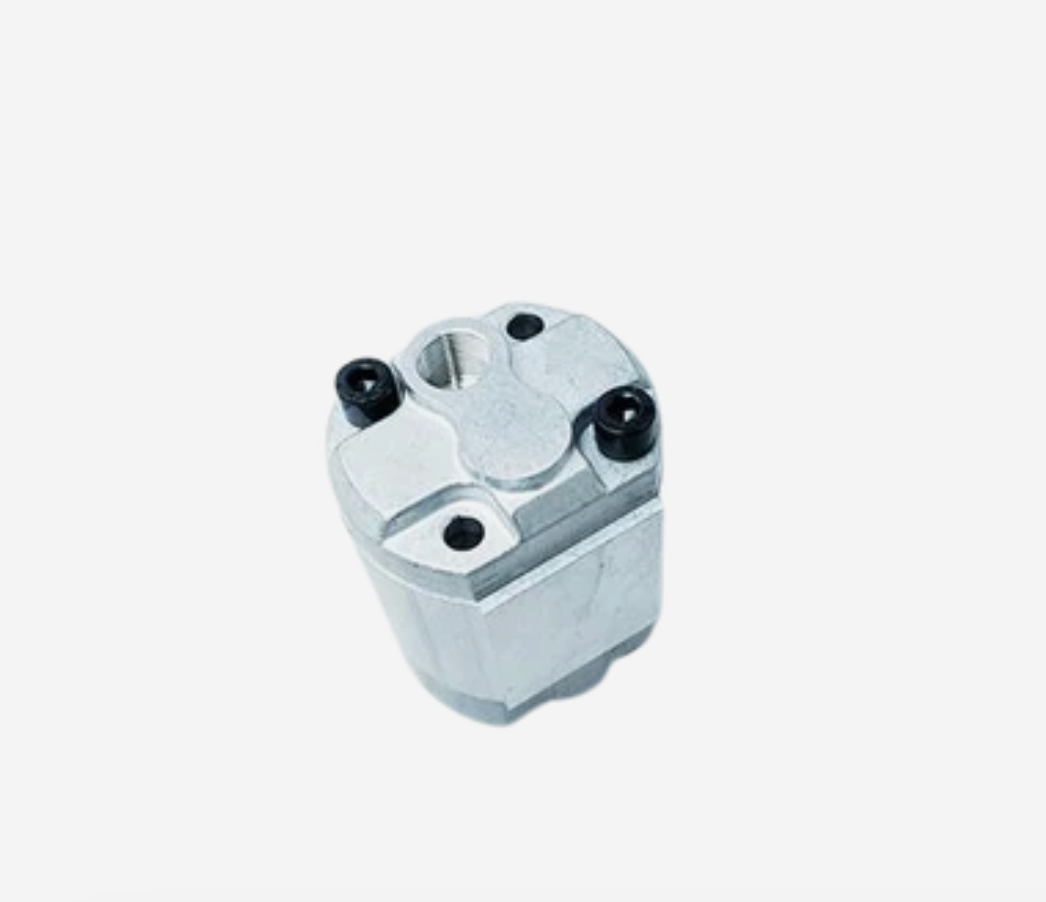

Haulotte B02-15-0689 3.15 Cubic Centimeter Hydraulic Gear Pump for Aerial Work Platforms

Description

The Haulotte B02-15-0689 is a genuine hydraulic gear pump with a displacement of 3.15 cubic centimeters, designed for hydraulic power units used on compatible Haulotte and Bil-Jax aerial work platforms. It converts mechanical input from the pump motor into hydraulic fluid flow for operation of the machine’s hydraulic functions and is documented as a component of the Haulotte pump assembly.

Technical Specifications

Information About B02-15-0689

The B02-15-0689 is a hydraulic gear pump specified by Haulotte as a 3.15 cubic centimeter pump within the hydraulic power unit assembly. It operates alongside the B02-15-0471 24-volt direct current, 3.0-kilowatt pump motor, hydraulic filter, reservoir, coupling, and associated manifold components. Haulotte documentation confirms its installation in the 55XA and HLA19PX pump assembly, while United States replacement listings also identify compatibility with models including 5533A, 4527A, X45A, and 6543A. As a genuine Haulotte replacement component, it is intended to maintain the specified hydraulic flow characteristics of the original equipment system; equipment model and serial number should be checked before installation.

Key Features:

• Gear Pump Design: Uses a positive-displacement gear mechanism to supply hydraulic fluid flow to the equipment hydraulic system.
• 3.15 Cubic Centimeter Displacement: Haulotte identifies the pump specification as 3.15 cubic centimeters.
• Genuine Haulotte Component: B02-15-0689 is sold and documented as an original Haulotte replacement part.
• Hydraulic Power Unit Integration: Installs within the main pump assembly together with the electric pump motor, filter, reservoir, and hydraulic connections.
• Electric Motor Interface: The documented pump assembly pairs the gear pump with a 24-volt direct current, 3.0-kilowatt pump motor.
• Multiple Equipment Applications: United States listings identify use with Haulotte and Bil-Jax 5533A, 55XA, 4527A, X45A, and 6543A equipment.
• Boom Lift Application: Replacement listings classify B02-15-0689 as a hydraulic pump for Haulotte and Bil-Jax boom lift equipment.
• Original Equipment Replacement: Designed to replace the corresponding gear pump without changing the intended configuration of the compatible hydraulic power unit.

The B02-15-0689 delivers the reliability and precision required for hydraulic fluid delivery in compatible Haulotte and Bil-Jax aerial work platforms.
