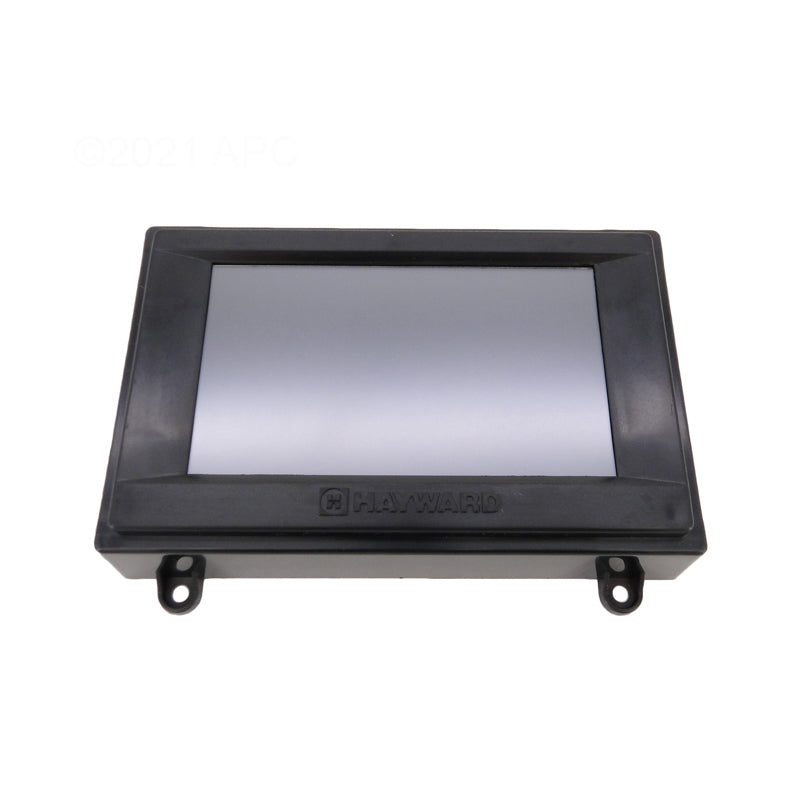

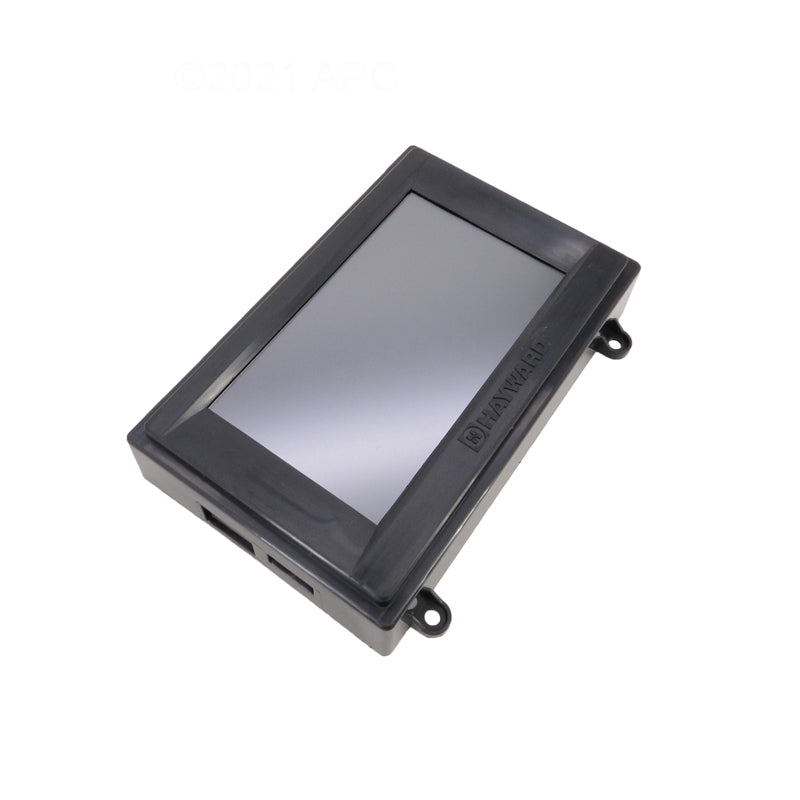

Hayward HLX-LOC-DSP OmniLogic Original Equipment Manufacturer Local Touchscreen Display Module
- Regular price
- $839.00
- Sale price
- $839.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HLX-LOC-DSP
Description
The Hayward HLX-LOC-DSP is a genuine OEM replacement local touchscreen display designed for Hayward OmniLogic pool and spa automation systems. The Hayward HLX-LOC-DSP restores full local system control, allowing users to configure equipment, monitor operating status, and manage automation functions through a responsive full-color touchscreen interface.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hayward |
| Category | HVAC Control |
| Part Number | HLX-LOC-DSP |
| Subcategory | Display Module |
| Product Type | Local Touchscreen Display |
| Compatibility | Hayward OmniLogic Automation Systems |
| Compatible Models | HLBASE, HLBASE-X288 |
| Display Type | Full-Color Touchscreen |
| Connection Type | Ribbon Cable to Main Control Board |
| Installation | Surface-Mounted Local Access Panel |

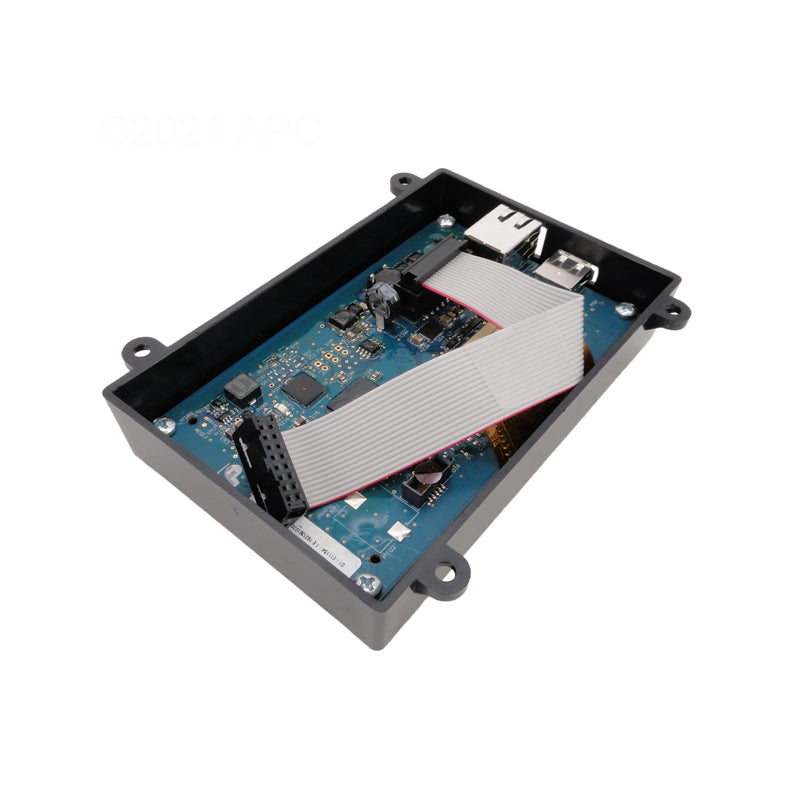

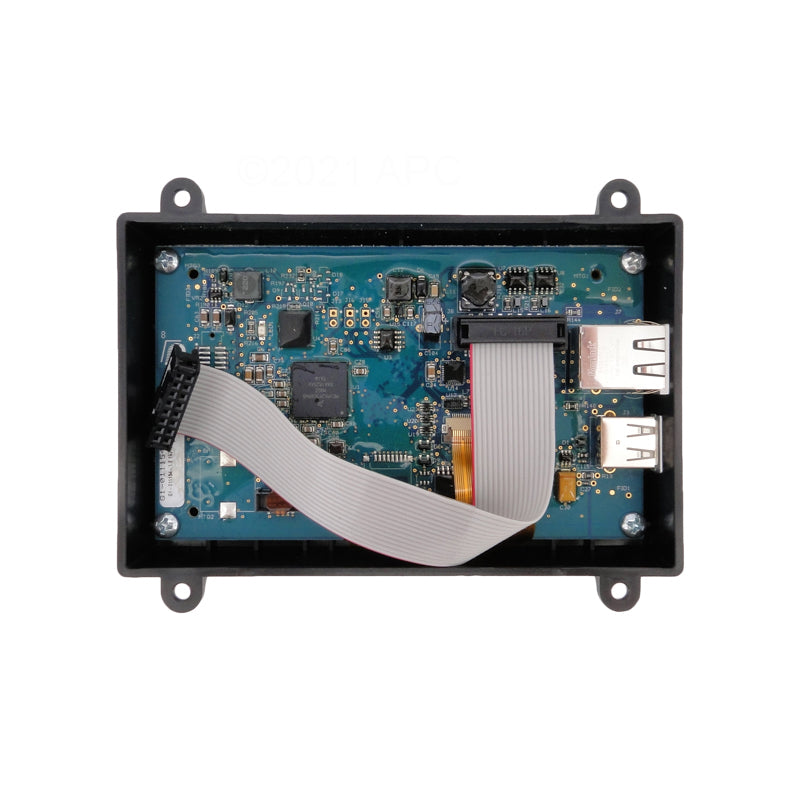

| Included Components | Display Module, Ribbon Cable, Liquid Crystal Display Board |
| Application | Pool and Spa Automation |
| Primary Functions | Equipment Control, Scheduling, Diagnostics, System Configuration |
| Construction | Weather-Resistant for Outdoor Equipment Pads |
| Replacement Type | Genuine Original Equipment Manufacturer Replacement |
| Shipping Dimensions | 10.9 × 6.7 × 4.2 in. |
| Weight | 3.0 lb (1.36 kg) |
Information About HLX-LOC-DSP
The HLX-LOC-DSP is a replacement local display module developed for the Hayward OmniLogic automation platform and compatible HLBASE and HLBASE-X288 control systems. It connects directly to the OmniLogic main control board through a ribbon cable, providing reliable local access to pumps, heaters, lighting, sanitization equipment, schedules, and system diagnostics. The display is designed as a direct OEM replacement for damaged, unresponsive, or malfunctioning touchscreen interfaces without requiring changes to the automation controller. Its weather-resistant construction makes it suitable for equipment pad installations while maintaining seamless integration with the OmniLogic automation ecosystem.
Key Features:
- Genuine Original Equipment Manufacturer Replacement: Manufactured by Hayward for direct compatibility with OmniLogic automation systems.
- Full-Color Touchscreen Display: Provides intuitive navigation for programming, scheduling, and equipment control.
- Direct Replacement Design: Installs using the existing ribbon cable connection without system reconfiguration.
- OmniLogic Compatibility: Designed for HLBASE, HLBASE-X288, and compatible OmniLogic control panels.
- Complete Display Assembly: Includes the local display module, ribbon cable, and liquid crystal display board.
- Weather-Resistant Construction: Engineered for dependable operation in outdoor pool equipment environments.
- Local Equipment Management: Controls pumps, heaters, lighting, valves, sanitization systems, and automation schedules.
- Diagnostic Access: Provides convenient access to system status, configuration menus, and operational information.
The HLX-LOC-DSP delivers the reliability and precision required for dependable local control of Hayward OmniLogic pool and spa automation systems.
