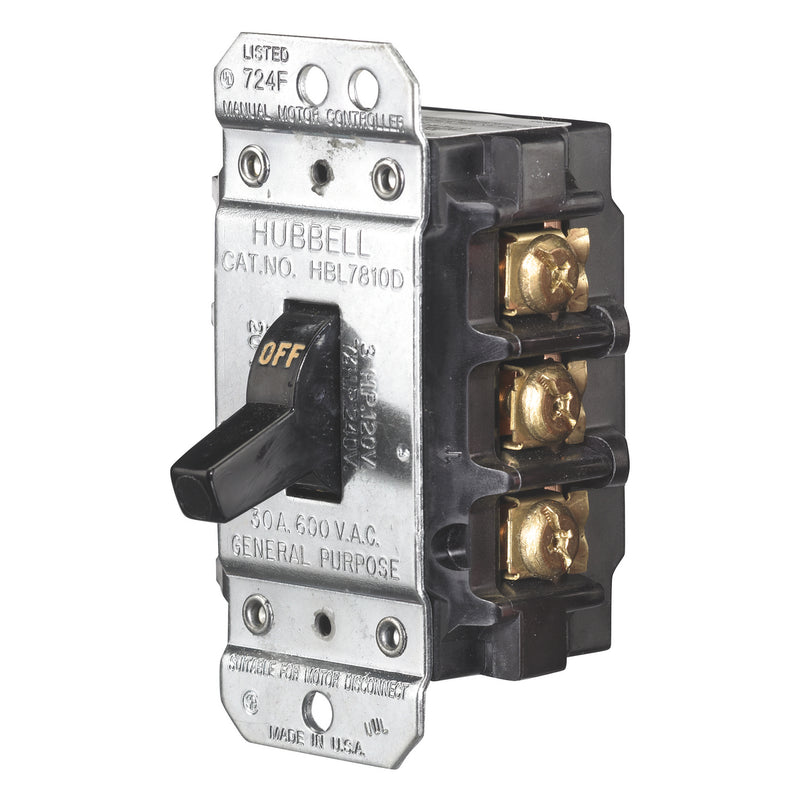

HBL7810D | Hubbell Manual Motor Controller
- Regular price
- $142.00
- Sale price
- $142.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HBL7810D
Description
The Hubbell HBL7810D is a Circuit-Lock® manual motor controller designed for industrial applications requiring reliable motor control and disconnect functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand |
Hubbell |
| Category | General Purpose Switches |
| Part Number | HBL7810D |
| Subcategory | Residential Wall Switches |
| Amperage | 30 Amp |
| Connection Type | Pressure Screw Terminal |
| Material | Stainless Steel |
| Number of Phases | 3 |
| Operating Temperature | -40°C |
| Type | Standard, Open, Toggle |
| Wattage | 18000 Watt |
| Applications | For Motor Starting Without Overload Protection |
| Current | 30 Amp |
| Horsepower | 20 HP |
| Mounting Type | Screw |
| Number of Poles | 3 |
| Voltage | 600 Volt |
| Color | Black |
| Product Series | Standard Toggle |
| Height | 2.418 in |
| Width | 2.418 in |
| Length | 3.978 in |
| Weight | 0.55 lbs |
Information About HBL7810D
The Hubbell HBL7810D is a Circuit-Lock® manual motor controller designed for industrial applications requiring reliable motor control and disconnect functionality.
Key Features:
-
Amperage Rating: 30A
-
Voltage Rating: 600V AC
-
Poles: Three
-
Horsepower Ratings:
- 3 HP at 120V AC (1-phase)
- 7.5 HP at 240V AC
- 15 HP at 480V AC
- 20 HP at 600V AC
-
Construction:
- Thermoset body offering high resistance to electrical arc tracking
- Four large silver alloy contacts per pole for excellent conductivity and longevity
-
Wiring: Back and side wired with pressure screw terminals accommodating up to #10 AWG solid or stranded copper wire
-
Operation: Quick-make, slow-break mechanism ensuring strong ON/OFF action
-
Certifications:
- UL 508 listed
- CSA-C22.2 No.14 certified
- Suitable as a motor disconnect
-
Environmental Ratings:
- Operating temperature range: -40°C to 75°C
- Flammability rating: UL94HB/VO
This controller is designed for durability, with a mechanical life of at least 10,000 cycles and an electrical life of at least 6,000 cycles at rated load. Optional side finger guards are available for close wall applications and finger-safe environments.
