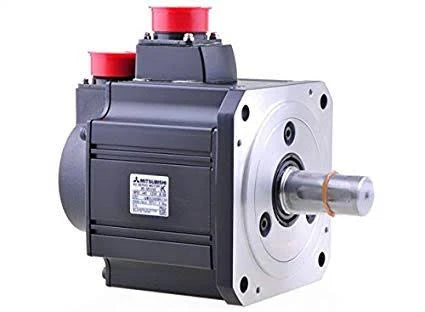

HC-SFS102 | Mitsubishi Servo Motor

Description

The Mitsubishi HC-SFS102 servo motor belongs to the MELSERVO series and operates at 200V. It is classified as a servo motor with moderate inertia and capacity. With a rated output power of 1 kW, it maintains a rated speed of 2000 rpm. The motor can achieve a maximum speed of 3000 rpm, with an instantaneous permissible speed reaching up to 3450 rpm. It operates with a rated current of 6A and can handle a maximum current of 18A. The motor is designed with a totally enclosed, self-cooled structure, providing it with an IP65 protection rating.

Technical Specifications

Information About HC-SFS102

The Mitsubishi HC-SFS102 servo motor is part of the MELSERVO series, designed for general-purpose applications and compatible with 200V power systems. It falls into the category of middle-inertia and middle-capacity servo motors, suitable for diverse industrial uses. Featuring a power rating of 1 kW, it operates at a rated speed of 2000 rpm, with a capability to reach up to 3000 rpm under demanding conditions. Its instantaneous permissible speed reaches 3450 rpm, ensuring stability during rapid changes in operation. With a rated torque of 4.78 Nm and a maximum torque of 14.4 Nm, it handles varying load conditions effectively.

To maintain consistent performance, the HC-SFS102 motor is designed to deliver 16.7 kW/s of power at its continuous rated torque. It interfaces with a servo amplifier equipped with a built-in regenerative resistor capable of handling 54 times per minute. Operating at a rated current of 6A and a maximum current of 18A, it ensures precise speed and position control through an encoder that supports both absolute and incremental position detection, offering a resolution of 131072 pulses per revolution for accuracy.

The HC-SFS102 servo motor includes protective features such as an oil seal and class F insulation, ensuring reliable operation in challenging environments. Its structure is fully enclosed and self-cooled, providing an IP65 ingress protection rating. Weighing 7 kg (15.4 lbs), it is robustly built for industrial applications requiring dependable servo performance.
