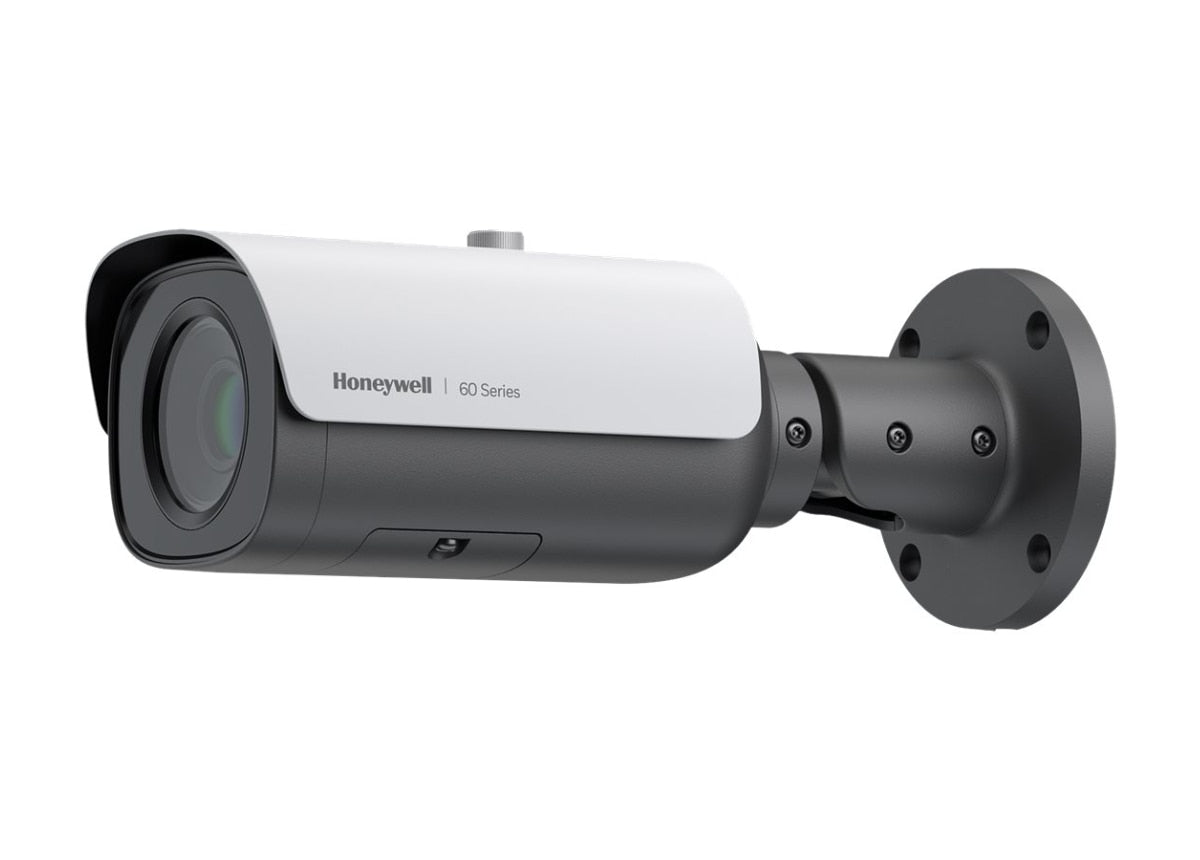

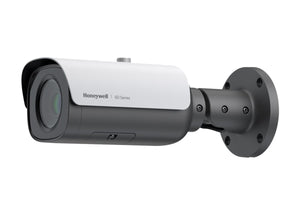

HC60WB5R2 | Honeywell 60 Series 5 MP Bullet Network Camera with Smart IR and FIPS Encryption
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: HC60WB5R2
Description
The Honeywell HC60WB5R2 is a 5 MP network bullet camera designed for professional video surveillance in industrial, commercial, and outdoor environments. Featuring advanced analytics, wide dynamic range, and infrared night vision up to 60 m (197 ft), it delivers superior performance and reliability in both day and night conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Security & Surveillance |
| Part Number | HC60WB5R2 |
| Subcategory | Network Camera |
| Video Standard | NTSC / PAL |
| Image Sensor | 1/2.8″ CMOS (5.18 × 3.89 mm) |
| Resolution | 5 MP (2560 × 1920) |
| Scanning System | Progressive |
| Minimum Illumination | 0.04 Lux (Color) / 0 Lux (IR on @ F1.4) |
| Signal-to-Noise Ratio | 60 dB |
| Electronic Shutter | 1/32,000 – 1/30 s |
| IR Distance | Up to 60 m (197 ft) |
| IR Control | Smart IR Auto / Manual / Off |
| IR LEDs | 4 high-power IR LEDs |
| Lens Type | Remote Focus MFZ (P-IRIS 2.7 – 13.5 mm or DC-IRIS 5 – 50 mm) |
| Angle of View | H: 100° – 30° / V: 72° – 23° |
| Wide Dynamic Range | > 120 dB |
| Noise Reduction | 3D DNR |
| Backlight Compensation | WDR / HLC |
| Local Storage | MicroSD/SDHC/SDXC (up to 256 GB) |
| Network Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, SMTP, NTP, SNMP, FTP, TLS |
| Compatibility | ONVIF Profile G/S |
| Alarm I/O | 2 inputs / 1 relay output |
| Power Supply | 12 V DC or PoE (IEEE 802.3 at Class 3) |
| Power Consumption | ≤ 25.5 W |
| Ingress Protection | IP66 / IK10 |
| Operating Temperature | –40 °F to +140 °F (–40 °C to +60 °C) |
| Relative Humidity | < 90 % non-condensing |
| Dimensions (W × H × L) | 105.5 × 110.6 × 288.6 mm (4.2″ × 4.4″ × 11.4″) |
| Weight | 5.58 lb (2.53 kg) |
| Color | Lyric White (RAL 120-1) |
| Country of Origin | Taiwan |
Information About HC60WB5R2
The HC60WB5R2 belongs to Honeywell’s 60 Series network camera line, offering enhanced cybersecurity, high-definition imaging, and ONVIF Profile G/S compatibility. It is equipped with a 1/2.8″ CMOS sensor that provides full 2560 × 1920 resolution and progressive-scan video for sharp, low-noise footage. The camera includes a remote-focus MFZ lens with P-IRIS control, enabling precise optical adjustment and consistent exposure. With built-in FIPS-certified encryption, edge storage, and multiple event-triggered alarm inputs and outputs, the HC60WB5R2 ensures secure and flexible integration into modern IP-based surveillance systems.
Key Features:
- High-Definition 5 MP Imaging: Captures 2560 × 1920 resolution for detailed monitoring and recording.
- Infrared Night Vision: Four IR LEDs provide visibility up to 60 m (197 ft) with Smart IR auto/manual control.
- Wide Dynamic Range (> 120 dB): Maintains clarity in scenes with extreme backlight or glare.
- Advanced Video Analytics: Supports intrusion, loitering, unattended object, missing object, and face detection.
- Remote-Focus MFZ Lens: 2.7 – 13.5 mm P-IRIS (F1.4 – F2.8) or 5 – 50 mm DC-IRIS (F1.9 – F2.1) for flexible coverage.
- Built-In FIPS Encryption Chipset: Ensures end-to-end data security and tamper resistance.
- Dual Power Options: Operates on 12 V DC or PoE (IEEE 802.3 at Class 3).
- Weather-Resistant IP66 / IK10 Housing: Rated for outdoor operation from –40 °C to +60 °C (–40 °F to +140 °F).
- Edge Recording Support: MicroSD/SDHC/SDXC card slot (up to 256 GB) with SD encryption.
- ONVIF Profile G/S Compliance: Ensures interoperability with major VMS platforms and NVRs.
The HC60WB5R2 delivers the durability, security, and image clarity required for modern surveillance networks.
