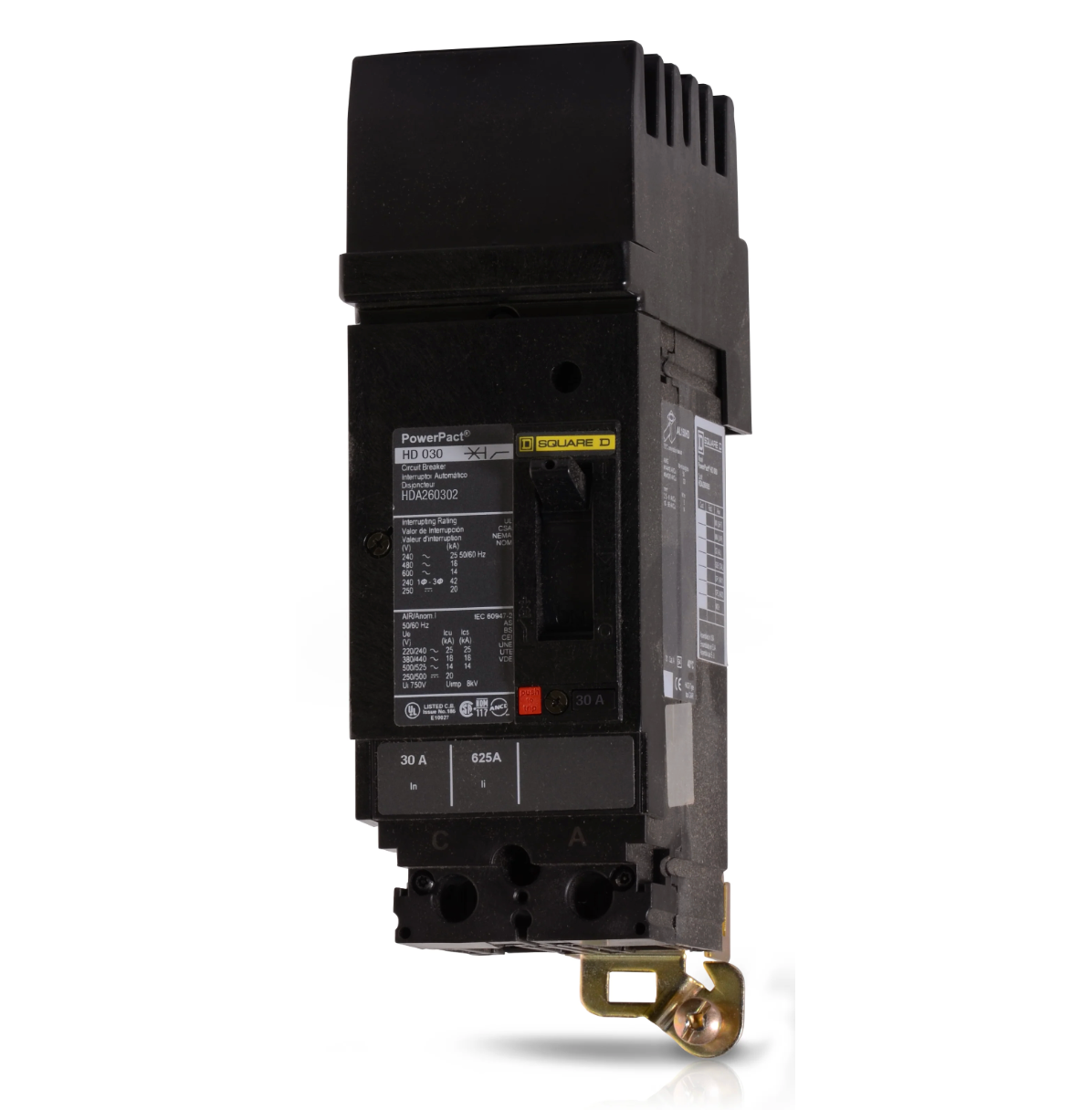

HDA260302 | Square D 30A 2-Pole 600V Thermal Magnetic PowerPact H I-Line Circuit Breaker
- Regular price
- $922.00
- Sale price
- $922.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDA260302
Description
The Square D HDA260302 is a 2-pole thermal magnetic molded case circuit breaker designed to protect electrical systems rated up to 600VAC. With a 30A current rating and interrupting capacities of 25kA at 240VAC and 18kA at 480VAC, it ensures dependable overload and short-circuit protection. This breaker features an I-Line plug-in connection for quick installation and compatibility with PowerPact H series distribution panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | HDA260302 |
| Subcategory | Molded Case Circuit Breakers |
| Series | PowerPact H |
| Frame Type | H-Frame |
| Amperage Rating | 30A |
| Voltage Rating | 600VAC |
| Interrupting Rating | 25kA @ 240VAC / 18kA @ 480VAC |
| Poles | 2 |
| Phase | 1 |
| Trip Unit Type | Thermal Magnetic (LI – Long-Time and Instantaneous) |
| Connection Type | I-Line Style Plug-In |
| Terminal Type | I-Line Line Side / Lugs Load Side |
| Wire Size Range | AWG 14 to AWG 3/0 (Cu/Al) |
| Continuous Current Rating | 80% |
| Temperature Range | 28°F to 158°F (-2°C to 70°C) |
| Magnetic Hold Current | 350A |
| Breaking Capacity Code | D |
| Certifications | UL, CSA, NEMA, NOM, CE |
| Country of Origin | Mexico |
| Dimensions (HxWxD) | 9.73" x 2.94" x 4.8" (247 x 75 x 122 mm) |
| Manufacturer | Schneider Electric |
| Weight | 1.86 lb (0.84 kg) |
Information About HDA260302
The HDA260302 is part of the Square D PowerPact H Series from Schneider Electric, engineered for precision circuit protection in industrial and commercial environments. It utilizes a thermal-magnetic trip unit offering both long-time and instantaneous trip functions for superior fault management. Designed with an H-frame structure, it provides mechanical strength and compact installation in I-Line panelboards. The breaker is UL, CSA, and IEC certified, ensuring compliance and reliability across global electrical standards.
Key Features:
- 30A Current Rating: Suitable for moderate load protection in 600VAC systems.
- Dual Interrupting Capacity: Rated 25kA at 240VAC and 18kA at 480VAC for enhanced safety performance.
- Thermal Magnetic Trip Unit: Combines long-time overload and instantaneous short-circuit protection.
- I-Line Plug-In Mounting: Simplifies installation and enables secure, quick connection.
- Compact H-Frame Design: Ensures durability and efficient space utilization in panelboards.
- Wide Wire Compatibility: Accepts aluminum or copper conductors from AWG 14 to 3/0.
- Global Certifications: Complies with UL, CSA, NEMA, NOM, and CE standards for universal use.
- Temperature Resilience: Operates reliably between 28°F and 158°F (-2°C to 70°C).
The HDA260302 delivers the reliability and precision required for industrial and commercial circuit protection applications.
Description
The Square D HDA260302 is a 2-pole thermal magnetic molded case circuit breaker designed to protect electrical systems rated up to 600VAC. With a 30A current rating and interrupting capacities of 25kA at 240VAC and 18kA at 480VAC, it ensures dependable overload and short-circuit protection. This breaker features an I-Line plug-in connection for quick installation and compatibility with PowerPact H series distribution panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | HDA260302 |
| Subcategory | Molded Case Circuit Breakers |
| Series | PowerPact H |
| Frame Type | H-Frame |
| Amperage Rating | 30A |
| Voltage Rating | 600VAC |
| Interrupting Rating | 25kA @ 240VAC / 18kA @ 480VAC |
| Poles | 2 |
| Phase | 1 |
| Trip Unit Type | Thermal Magnetic (LI – Long-Time and Instantaneous) |
| Connection Type | I-Line Style Plug-In |
| Terminal Type | I-Line Line Side / Lugs Load Side |
| Wire Size Range | AWG 14 to AWG 3/0 (Cu/Al) |
| Continuous Current Rating | 80% |
| Temperature Range | 28°F to 158°F (-2°C to 70°C) |
| Magnetic Hold Current | 350A |
| Breaking Capacity Code | D |
| Certifications | UL, CSA, NEMA, NOM, CE |
| Country of Origin | Mexico |
| Dimensions (HxWxD) | 9.73" x 2.94" x 4.8" (247 x 75 x 122 mm) |
| Manufacturer | Schneider Electric |
| Weight | 1.86 lb (0.84 kg) |
Information About HDA260302
The HDA260302 is part of the Square D PowerPact H Series from Schneider Electric, engineered for precision circuit protection in industrial and commercial environments. It utilizes a thermal-magnetic trip unit offering both long-time and instantaneous trip functions for superior fault management. Designed with an H-frame structure, it provides mechanical strength and compact installation in I-Line panelboards. The breaker is UL, CSA, and IEC certified, ensuring compliance and reliability across global electrical standards.
Key Features:
- 30A Current Rating: Suitable for moderate load protection in 600VAC systems.
- Dual Interrupting Capacity: Rated 25kA at 240VAC and 18kA at 480VAC for enhanced safety performance.
- Thermal Magnetic Trip Unit: Combines long-time overload and instantaneous short-circuit protection.
- I-Line Plug-In Mounting: Simplifies installation and enables secure, quick connection.
- Compact H-Frame Design: Ensures durability and efficient space utilization in panelboards.
- Wide Wire Compatibility: Accepts aluminum or copper conductors from AWG 14 to 3/0.
- Global Certifications: Complies with UL, CSA, NEMA, NOM, and CE standards for universal use.
- Temperature Resilience: Operates reliably between 28°F and 158°F (-2°C to 70°C).
The HDA260302 delivers the reliability and precision required for industrial and commercial circuit protection applications.
