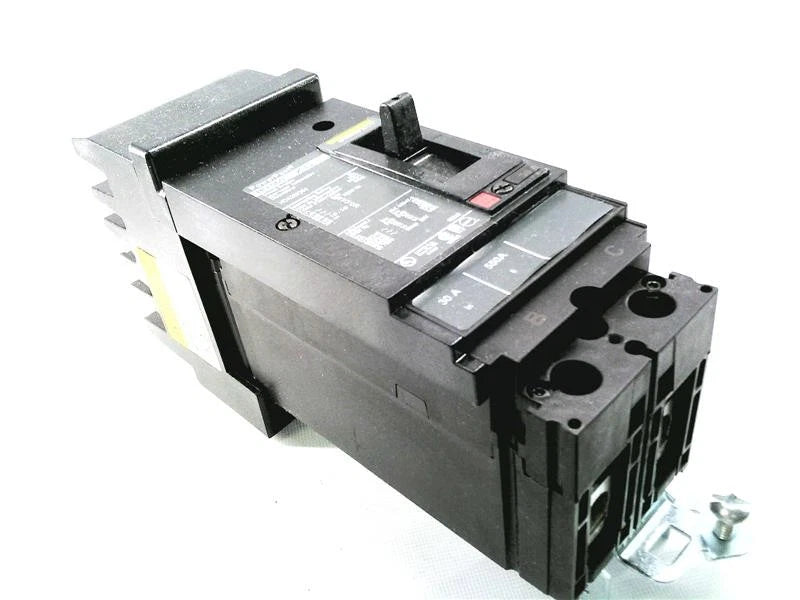

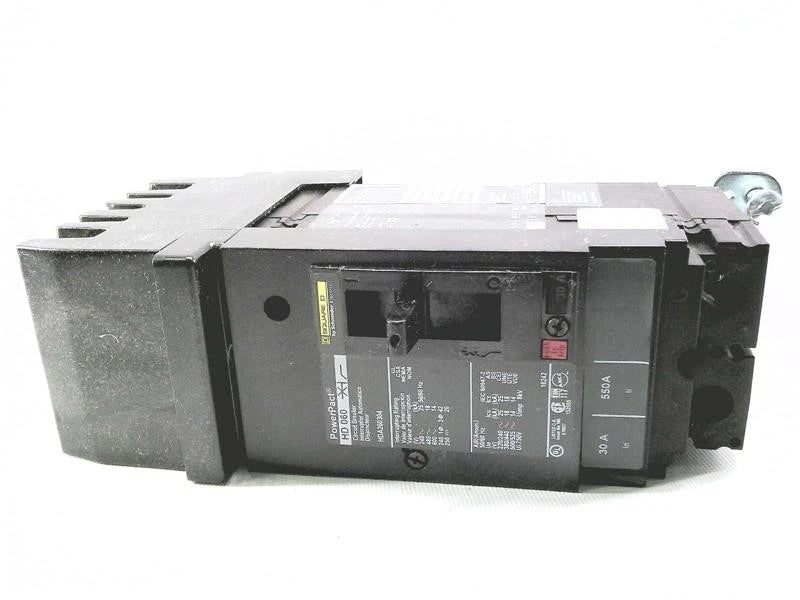

HDA260304 | Square D 30A 2-Pole Molded Case Circuit Breaker 600VAC I-Line Thermal Magnetic
- Regular price
- $1,322.00
- Sale price
- $1,322.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HDA260304
Description
The Schneider Electric Square D HDA260304 is a 2-pole molded case circuit breaker designed for reliable protection of electrical distribution systems. This unit provides thermal-magnetic protection with a 30 A current rating and supports applications up to 600 VAC. It is commonly used in commercial and industrial power distribution panels requiring I-Line plug-in mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D (Schneider Electric) |
| Category | Circuit Breakers |
| Part Number | HDA260304 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPacT H |
| Current Rating | 30 A |
| Number of Poles | 2 |
| Voltage Rating | 600 VAC |
| Trip Type | Thermal Magnetic |
| Interrupting Rating | 18 kA @ 480 VAC |
| Mounting Type | I-Line Plug-In |
| Connection Type | Lugs |
| Phase | Single Phase |
| Frame Type | H-Frame |
| Operating Temperature Range | -25°C to 70°C |
| Weight | 1.36 lbs |
Information About HDA260304
The HDA260304 is part of the Square D PowerPacT H Series, engineered for compact, high-performance circuit protection. It features a robust molded case construction with an I-Line plug-in connection for fast installation and secure electrical contact. The breaker is compatible with PowerPacT H-frame systems and supports both AC and DC voltage applications. Thermal-magnetic trip technology ensures dependable long-time and instantaneous fault protection in demanding electrical environments.
Key Features:
-
Thermal-Magnetic Trip Unit: Provides long-time and instantaneous protection against overloads and short circuits.
-
2-Pole Configuration: Designed for single-phase power distribution applications.
-
600 VAC Voltage Rating: Supports high-voltage commercial and industrial systems.
-
I-Line Plug-In Mounting: Enables quick installation and replacement without extensive wiring.
-
High Interrupting Capacity: Rated up to 18 kA at 480 VAC for fault protection reliability.
-
Compact H-Frame Design: Optimized for space-efficient panel layouts.
-
Lug Terminal Connections: Accepts a wide conductor range for flexible wiring.
The HDA260304 delivers the reliability and precision required for molded case circuit breaker protection in industrial and commercial power distribution systems.
