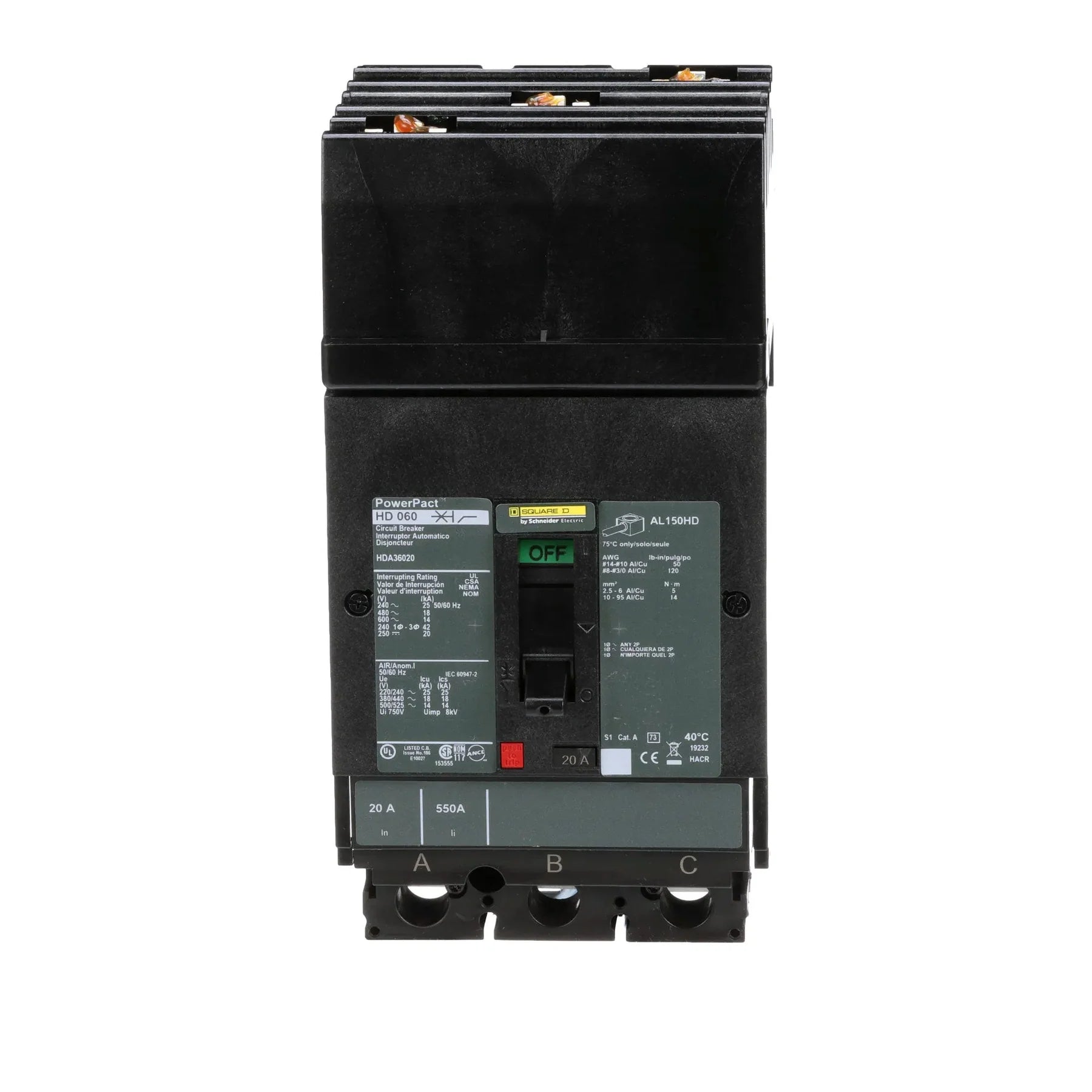

HDA36020 | Schneider Electric Molded Case Circuit Breaker
- Regular price
- $467.00
- Sale price
- $467.00
- Regular price
-
Do you need help?
Product Description P/N: HDA36020
Description
This product is a molded case circuit breaker 3 pole 20 ampere built in trip setting 350 to 750 ampere thermal magnetic tripping method high interrupting rating of 25 kiloampere at 240vac Used On Class 612 I-Line[r] Panelboard/switchboard application power distribution.
Technical Specifications
Brand | Schneider Electric |
Part Number | HDA36020 |
Category | Circuit Breaker |
Subcategory | Molded Case Circuit Breaker |
Family | Powerpact |
Type | HDA |
Voltage | 600 |
Amperage | 20 |
Phase | 3 |
Poles | 3 |
AIC Rating | 18kA@480V |
Protection | Thermal Magnetic |
Connection | I-Line Style Plug-In |
Functions | LI - Long-Time and Instantaneous |
Frame Type | H Frame |
Information About HDA36020
The Schneider Electric HDA36020 is a high-quality molded case circuit breaker belonging to the Powerpact family. Engineered for robust performance, this breaker operates at a voltage of 600V and is rated for 20 amperes, making it ideal for three-phase applications in industrial settings.
With a three-pole configuration, the HDA36020 ensures comprehensive protection across all phases of the electrical system. It features thermal magnetic protection, offering both long-time and instantaneous trip functions for effective protection against overloads and short circuits.
The HDA36020 boasts an interrupting capacity (AIC) of 18kA at 480V, enabling it to safely interrupt high fault currents without compromising system safety. Its I-Line Style Plug-In connection facilitates easy and secure installation, while the H frame design ensures durability and reliability in demanding environments.
Equipped with long-time and instantaneous (LI) protection functions, this breaker delivers sustained and immediate response to electrical faults, enhancing overall system safety. In summary, the Schneider Electric HDA36020 molded case circuit breaker is a reliable solution for protecting three-phase electrical systems in industrial applications, offering superior performance and ease of installation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
