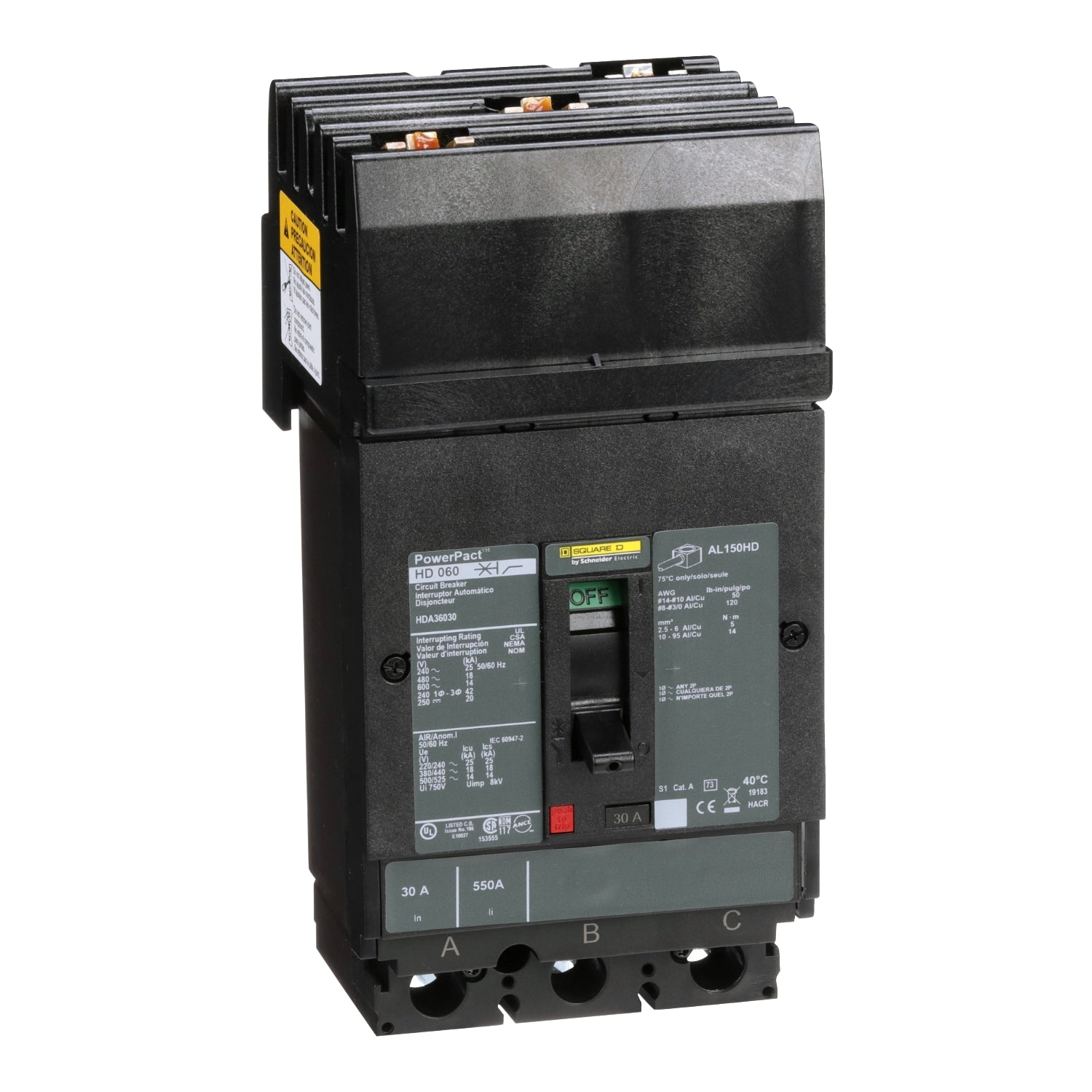

HDA36030 | Schneider Electric Circuit Breaker
- Regular price
- $517.00
- Sale price
- $517.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDA36030
Description
PowerPacT H-Frame circuit breakers are engineered to safeguard electrical systems against overloads and short circuits. These circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. The HDA36030 PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers feature dual-break rotating contacts that minimize peak current during a short circuit event.
Technical Specifications
|
Part # |
HDA36030 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
30 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
D |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
750 A |
|
Magnetic hold current |
350 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green |
|
Mounting mode |
I-Line bracket |
|
Mounting Support |
Bracket |
Information About HDA36030
The HDA36030 is a PowerPacT H-Frame circuit breaker. It is rated at 30A and designed with 3 poles for electrical system protection against overloads and short circuits. The unit operates at 600VAC with a breaking capacity of 14kA. PowerPacT H-Frame circuit breakers are offered with thermal magnetic or Micrologic electronic trip protection units. This specific model utilizes thermal magnetic trip technology. All PowerPacT H-Frame circuit breakers are designed with dual-break rotating contacts that effectively minimize peak current during a short circuit fault.
This circuit breaker includes an integral push-to-trip button on the cover, which allows manual tripping of the breaker. PowerPacT H-Frame circuit breakers are available in both 2-pole and 3-pole configurations, with options for unit mount and I-Line constructions. The HDA36030 is built for I-Line construction, which simplifies installation and removal in I-Line applications. The circuit breaker is equipped with I-Line terminations on the line side and mechanical lugs on the load side.
