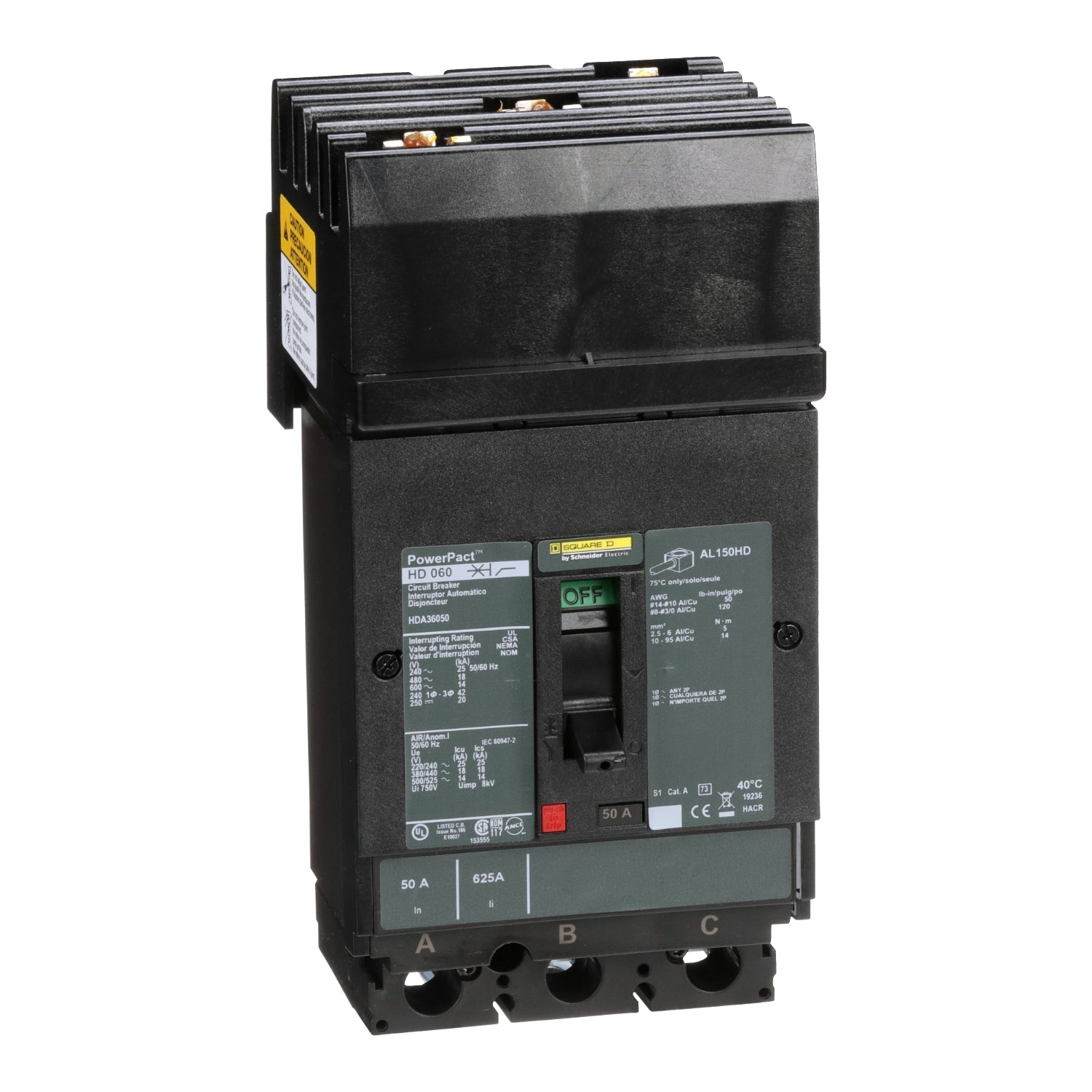

HDA36050 | Schneider Electric Circuit Breaker
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDA36050
Description
HDA36050, Square D, Powerpact, type HDA, 3PH, 3P, ABC phase connection, 50A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | HDA36050 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HDA |
| Voltage | 600 |
| Amperage | 50 |
| Frame Type | H Frame |
| Connection | I-Line Style Plug-In |
| AIC Rating | 18kA@480V |
| Functions | LI - Long-Time and Instantaneous |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Phase | 3 |
Information About HDA36050
The HDA36050 Schneider Electric Circuit Breaker is a robust and high-performance electrical protection device designed for industrial and commercial applications. As part of the Powerpact family, this breaker ensures superior reliability and efficiency.
Operating at a voltage of 600V and an amperage of 50A, the HDA36050 is ideal for managing power distribution in three-phase systems. It features a three-pole configuration, providing balanced and efficient power management across all phases.
The circuit breaker employs a Thermal Magnetic protection mechanism, combining thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This dual protection ensures comprehensive safeguarding of electrical circuits. With an interrupting capacity (AIC) of 18kA at 480V, it can handle significant fault currents, providing robust protection against electrical faults.
Designed for ease of installation and maintenance, the HDA36050 utilizes an I-Line Style Plug-In connection, simplifying integration into existing electrical systems and allowing for quick and secure attachment to I-Line panelboards and busway systems. The H Frame type enhances its durability and reliability, making it suitable for harsh and demanding environments.
The primary functions of the HDA36050 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the HDA36050 Schneider Electric Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits, ensuring safety and operational integrity in industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
