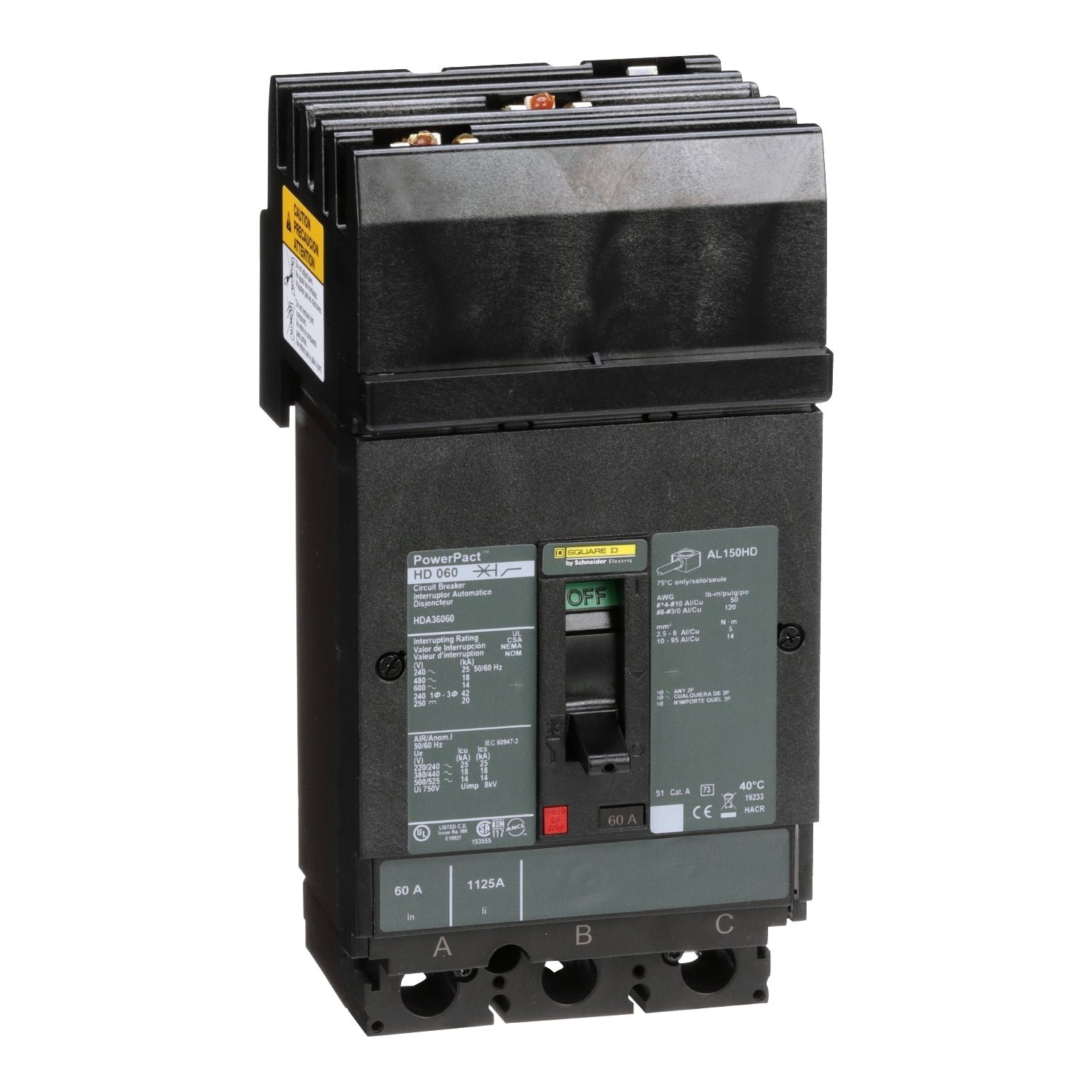

Product Description P/N: HDA36060
Description
|
Part # |
HDA36060 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
60 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
D |
|
Rated Operational Voltage ([Ue]) |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage ([Uimp]) |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1450 A |
|
Magnetic Hold Current |
800 A |
|
Continuous Current Rating |
80% |
|
Rated Insulation Voltage ([Ui]) |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminum/copper terminal |
|
Local Signaling |
Switched off (OFF) 1 trip indicator (green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line Lugs, load |
|
Terminal Identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Power Wire Stripping Length |
0.63 in (16 mm) |
|
Color |
Black |
|
Height |
6.42 in (163 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
4.85 lb(US) (2.2 kg) |
|
Quantity per Set |
1 |
|
Phase Connection |
ABC |
Information About HDA36060
The HDA36060 is a PowerPacT H-Frame circuit breaker designed by Schneider Electric to safeguard electrical systems against overloads and short circuits. Available with either thermal magnetic or Micrologic electronic trip protection units, this circuit breaker offers thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, it efficiently reduces peak current during a short circuit fault. Featuring an integral push-to-trip button, all PowerPacT circuit breakers can be manually tripped for added convenience.
The PowerPacT H series is available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions. Specifically, the I-Line variant facilitates easy installation and removal in I-Line applications. With I-Line terminations on the line side and mechanical lugs on the load side, installation is simplified.
This specific PowerPacT H circuit breaker is a 3-pole unit rated at 60A and operates at 600VAC. With a breaking capacity of 14kA at 600VAC, it ensures reliable protection against electrical faults. Its continuous current rating of 80% with an ABC phase connection enhances its versatility and performance in various applications.
