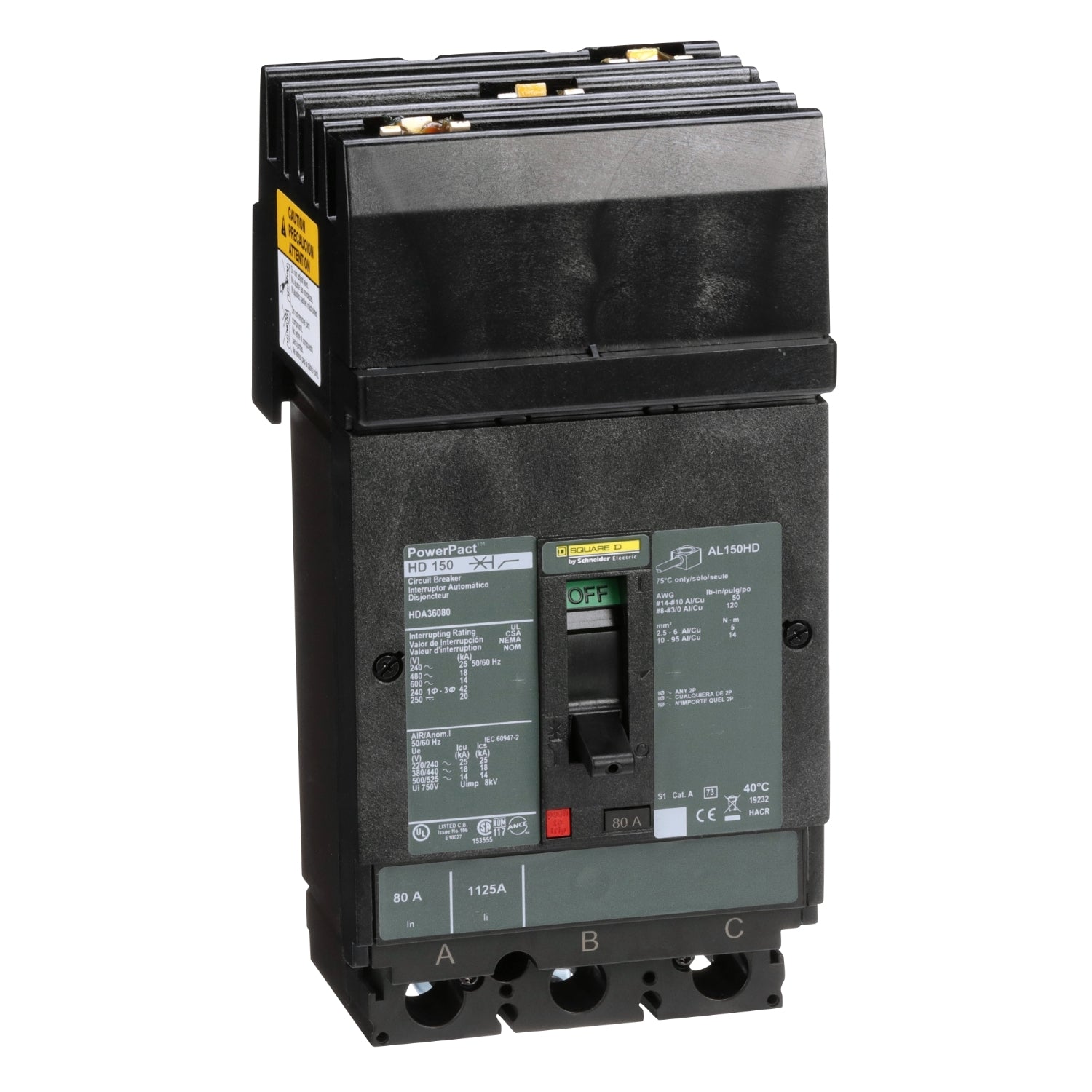

HDA36080 | Schneider Electric Circuit Breaker
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDA36080
Description
HDA36080, Schneider Electric circuit breaker molded case Powerpact, type HDA, H Frame, 3PH, 3P, 600V, 80A, 18kA@480V, I-Line Style Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | HDA36080 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HDA |
| Voltage | 600 |
| Amperage | 80 |
| AIC Rating | 18kA@480V |
| Frame Type | H Frame |
| Phase | 3 |
| Poles | 3 |
| Connection | I-Line Style Plug-In |
| Functions | LI - Long-Time and Instantaneous |
| Protection | Thermal Magnetic |
Information About HDA36080
The HDA36080 by Schneider Electric is a high-performance circuit breaker from the PowerPact family, specifically designed for reliable and efficient electrical protection. This model belongs to the HDA type and operates at a voltage of 600V with an amperage rating of 80A, making it suitable for a wide range of industrial and commercial applications.
The circuit breaker features a high Ampere Interrupting Capacity (AIC) of 18kA at 480V, demonstrating its ability to safely interrupt high fault currents, thus providing robust protection to electrical systems. Built on the H Frame platform, the HDA36080 ensures structural integrity and durability, catering to demanding operational environments.
It supports a 3-phase configuration with 3 poles, which is standard for many electrical installations, allowing balanced power distribution and enhanced system stability. The connection style is I-Line, facilitating a plug-in installation that simplifies mounting and maintenance, ensuring ease of use and operational efficiency.
Equipped with LI (Long-Time and Instantaneous) functions, the HDA36080 provides advanced protection features. The Long-Time protection ensures overload protection by monitoring sustained overcurrent conditions, while the Instantaneous protection responds to short-circuit events. The thermal magnetic protection mechanism combines thermal overload protection with magnetic short-circuit protection, offering comprehensive safeguarding of electrical circuits.
This circuit breaker is engineered for high reliability and superior protection, making it an essential component for ensuring the safety and efficiency of electrical systems in industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
