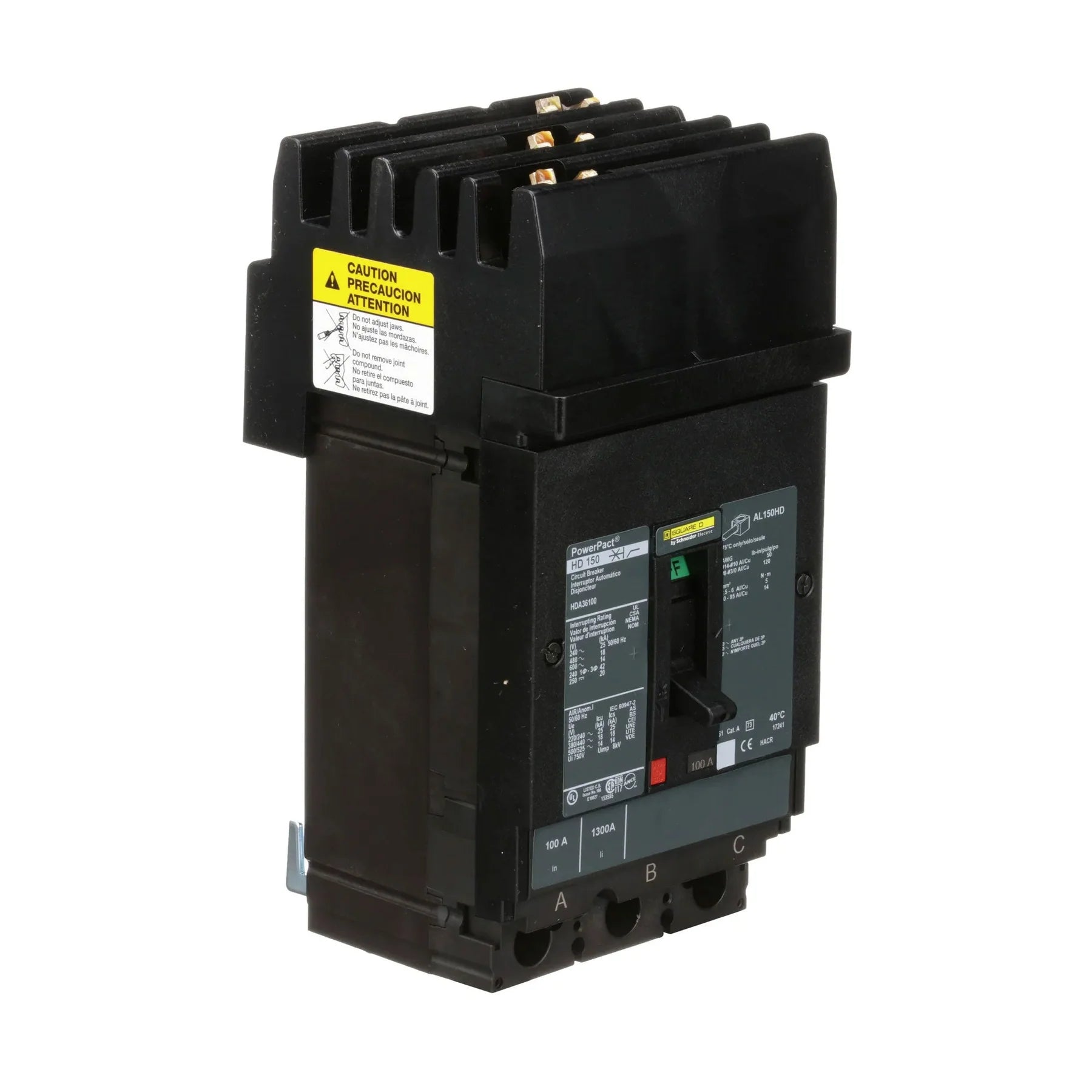

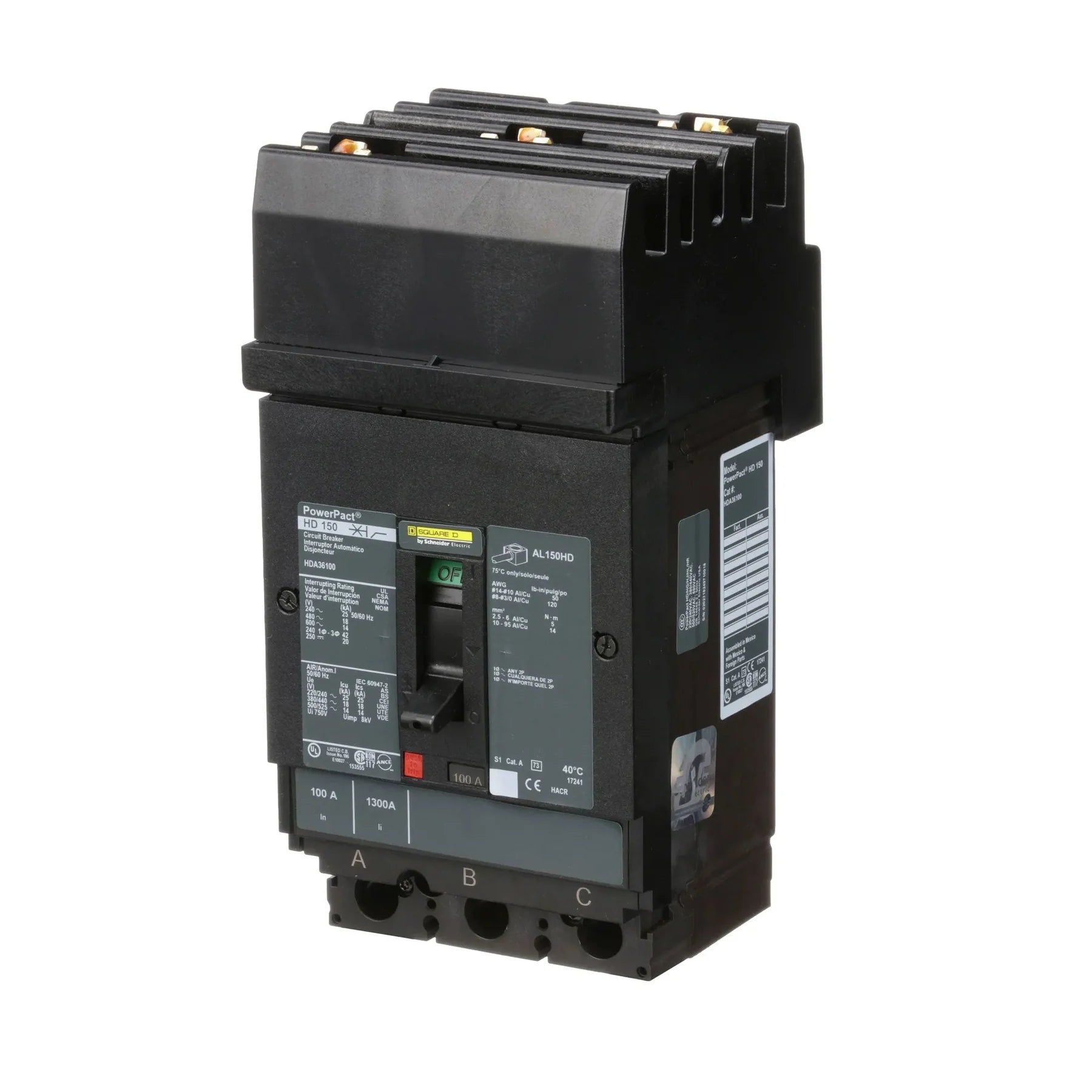

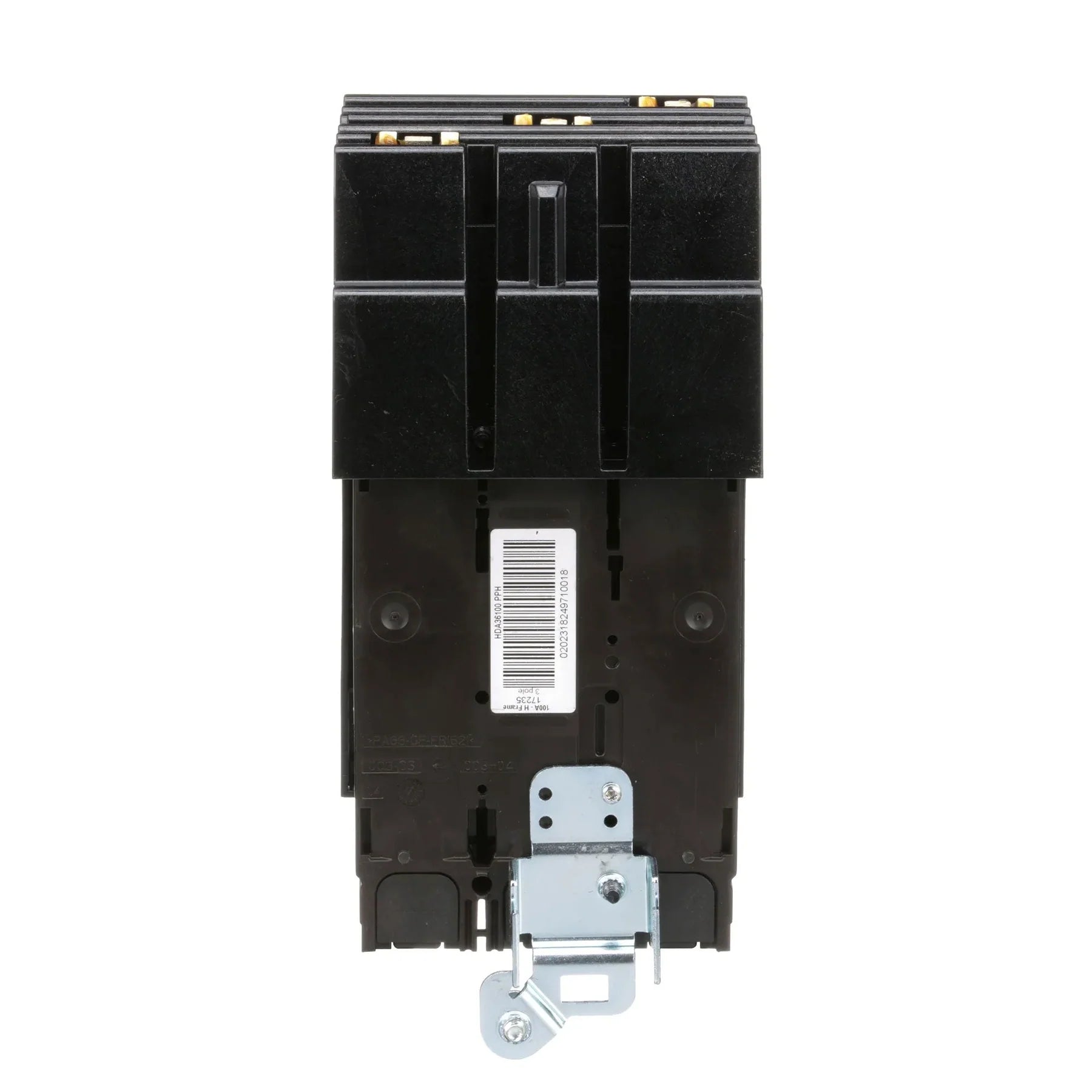

HDA36100 | Schneider Electric Circuit Breaker
- Regular price
- $570.00
- Sale price
- $570.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDA36100
Description
The HDA36100 is a molded case circuit breaker manufactured by Square D under the Powerpact series. It belongs to the type HDA category and is designed for use in three-phase electrical systems. Operating at a voltage of 600V, it has a current rating of 100A, capable of handling substantial electrical loads.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | HDA36100 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HDA |
| Voltage | 600 |
| Amperage | 100 |
| AIC Rating | 18kA@480V |
| Protection | Thermal Magnetic |
| Connection | I-Line Style Plug-In |
| Functions | LI - Long-Time and Instantaneous |
| Phase | 3 |
| Frame Type | H Frame |
| Poles | 3 |
Information About HDA36100
The HDA36100 is a Schneider Electric circuit breaker from the Powerpact series, featuring a sturdy H frame design. It operates at a voltage of 600 volts and has a current rating of 100 amps, making it suitable for protecting three-phase electrical systems.
This circuit breaker utilizes thermal magnetic protection, incorporating both long-time and instantaneous trip functions (LI). These features enable it to effectively safeguard against prolonged overloads and swiftly respond to short-circuit conditions, ensuring reliable operation in industrial and commercial applications.
With an interrupting capacity (AIC) of 18kA at 480 volts, the HDA36100 can safely interrupt fault currents, protecting equipment and personnel from potential damage. It is designed for I-Line Style Plug-In connections, facilitating straightforward installation and maintenance in electrical panels or enclosures.
Configured with three poles, the HDA36100 provides comprehensive protection across all phases of the electrical system. Its robust construction and adherence to safety standards make it a dependable choice for critical power distribution scenarios where reliability and performance are paramount.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
