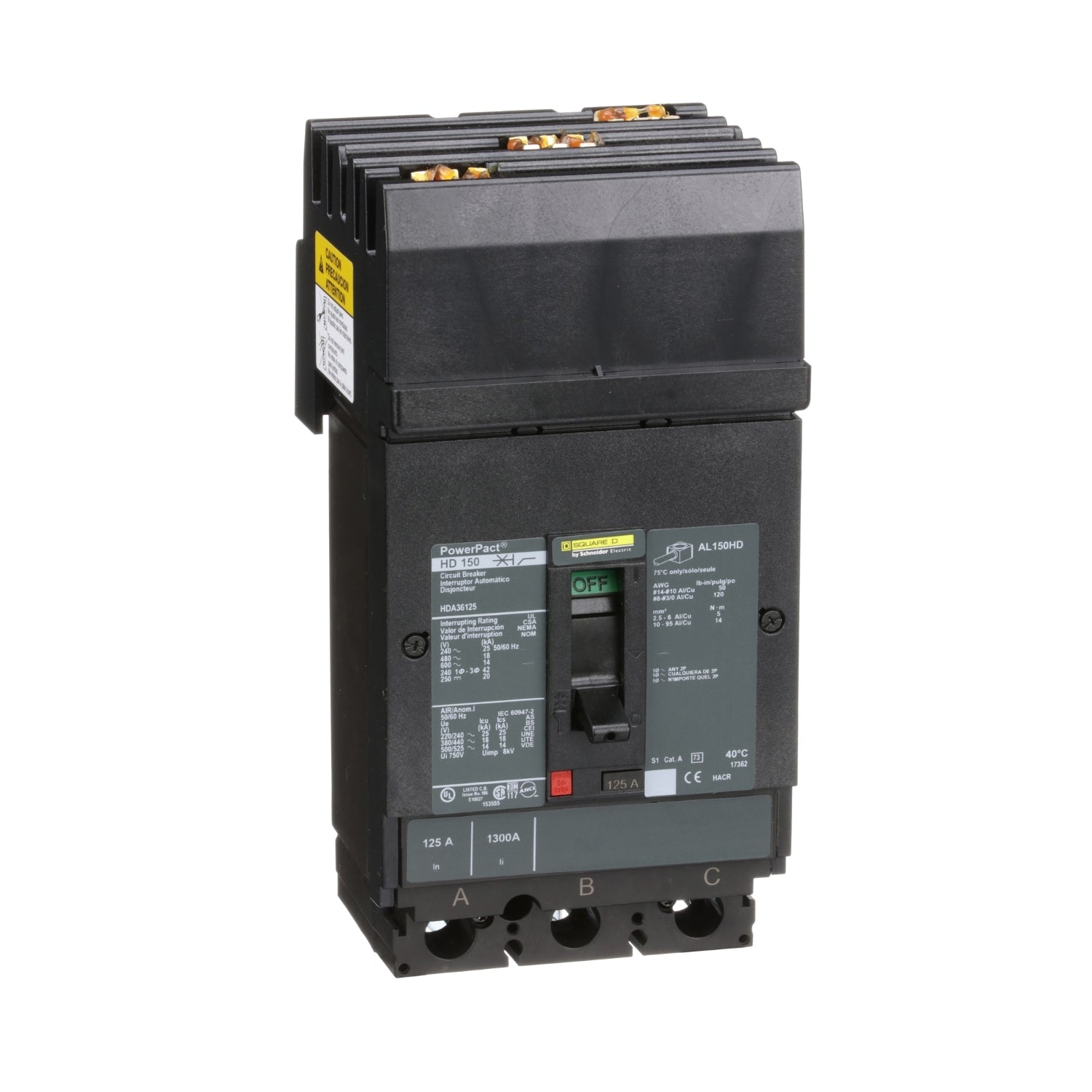

HDA36125 | Schneider Electric Circuit Breaker
- Regular price
- $937.00
- Sale price
- $937.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDA36125
Description
The HDA36125 is a PowerPacT H-Frame circuit breaker engineered to safeguard electrical systems against overloads and short circuits. Featuring thermal magnetic circuit protection, it offers a substantial breaking capacity of 14kA at 600VAC, ensuring reliable performance in demanding environments.
Technical Specifications
|
Part # |
HDA36125 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
125 A |
|
Number of Poles |
3P |
|
Protected poles description |
3t |
|
Control Type |
Toggle |
|
Breaking capacity code |
D |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1700 A |
|
Magnetic hold current |
900 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
I-Line bracket) |
|
Mounting Support |
Bracket |
|
Electrical connection |
I-Line connection, line <br> Lugs, load |
|
Terminal identifier |
AL150HD |
|
Mounting Height |
4.5 in (114.30 mm) |
Information About HDA36125
The HDA36125 is a Circuit Breaker from the PowerPacT H series, designed to safeguard electrical systems against overloads and short circuits. Available with either thermal magnetic or Micrologic electronic trip protection units, this PowerPacT H-Frame circuit breaker delivers thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit faults.
Featuring an integral push-to-trip button in the cover, all PowerPacT H circuit breakers offer manual tripping capability. They come in 2 and 3-pole unit mount configurations, with I-Line constructions available for easy installation and removal in I-Line applications. This specific breaker, the HDA36125, is a 3-pole unit with a rated current of 125A. It has I-Line terminations on the line side and mechanical lugs on the load side.
With a breaking capacity of 14kA at 600VAC, this circuit breaker maintains a continuous current rating of 80% with an ABC phase connection. It complies with UL, CSA, NOM, and IEC standards, and bears the CE mark, ensuring adherence to quality and safety regulations.
