Product Description P/N: HDA36150

Description / Specifications

Description

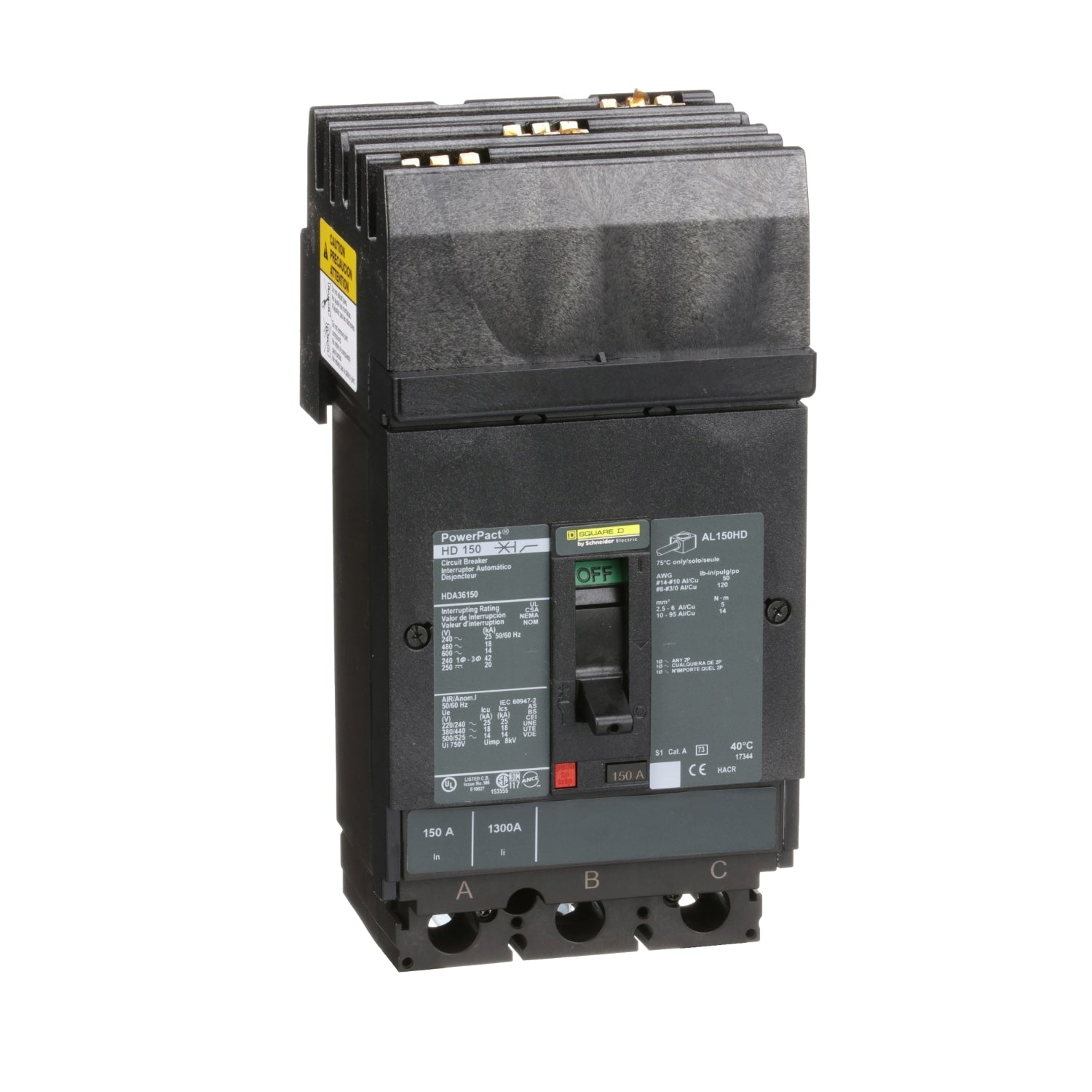

The HDA36150 from Eaton's PowerPacT H-Frame series is a robust circuit breaker designed to safeguard electrical systems against overloads and short circuits. It features a three-pole configuration with a current rating of 150A, suitable for industrial applications requiring high-performance protection. The breaker utilizes thermal magnetic trip technology, ensuring effective circuit protection with a maximum breaking capacity of 14kA at 600VAC.

Equipped with dual-break rotating contacts, the PowerPacT H-Frame breaker minimizes peak current during short circuit faults, enhancing system reliability. It includes an integral push-to-trip button on the cover for manual tripping when necessary. Available in both unit mount and I-Line constructions, the PowerPacT H series offers versatility in installation options. The I-Line configuration facilitates easy installation and removal specifically for I-Line applications.




Technical Specifications



Part #

HDA36150

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker Range

Product Name

PowerPact H

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

150 A

Number of Poles

3P

Protected Poles Description

3t

Control Type

Toggle

Breaking Capacity Code

D

Rated Operational Voltage [Ue]

690 V AC 50/60 Hz IEC 60947-3

Network Frequency

50/60 Hz

Rated Impulse Withstand Voltage [Uimp]

8 kV IEC 60947-2

Trip Unit Technology

Thermal-magnetic

Magnetic Tripping Current

1700 A

Magnetic Hold Current

900 A

Continuous Current Rating

80 %

Rated Insulation Voltage [Ui]

750 V IEC 60947-2

Suitability for Isolation

Yes IEC 60947-2

Utilisation Category

Category A

AWG Gauge

AWG 14...AWG 3/0 aluminium/copper terminal

Local Signalling

Switched off (OFF) 1 trip indicator green

Mounting Mode

I-Line bracket

Mounting Support

Bracket Terminal identifier AL150HD

Mounting Height

4.5 in (114.30 mm)

Power Wire Stripping Length

0.63 in (16 mm)

Color

Black

Height

6.42 in (163 mm)

Width

4.09 in (104 mm)

Depth

3.39 in (86 mm)

Net Weight

4.85 lb (2.2 kg) (US)

Quantity per Set

1

Phase Connection

ABC


Information About HDA36150

The HDA36150 circuit breaker from Eaton's PowerPacT H series is designed for robust electrical system protection against overloads and short circuits. Available with both thermal magnetic and Micrologic electronic trip units, this H-Frame circuit breaker ensures reliable operation in various applications.

Specifically, the HDA36150 model offers thermal magnetic circuit protection with a notable breaking capacity of 14kA at 600VAC, suitable for handling high-energy faults without compromising system integrity. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit events, enhancing operational safety and longevity.

Featuring an integral push-to-trip button integrated into the cover, the HDA36150 allows manual tripping when necessary, facilitating swift response to faults for maintenance and safety procedures.

Eaton's PowerPacT H circuit breakers are available in 2-pole and 3-pole configurations, including unit mount and I-Line constructions. The I-Line variant offers simplified installation and removal in I-Line applications, supported by I-Line terminations on the line side and mechanical lugs on the load side.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The HDA36150 from Eaton's PowerPacT H-Frame series is a robust circuit breaker designed to safeguard electrical systems against overloads and short circuits. It features a three-pole configuration with a current rating of 150A, suitable for industrial applications requiring high-performance protection. The breaker utilizes thermal magnetic trip technology, ensuring effective circuit protection with a maximum breaking capacity of 14kA at 600VAC.

Equipped with dual-break rotating contacts, the PowerPacT H-Frame breaker minimizes peak current during short circuit faults, enhancing system reliability. It includes an integral push-to-trip button on the cover for manual tripping when necessary. Available in both unit mount and I-Line constructions, the PowerPacT H series offers versatility in installation options. The I-Line configuration facilitates easy installation and removal specifically for I-Line applications.




Technical Specifications



Part #

HDA36150

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker Range

Product Name

PowerPact H

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

150 A

Number of Poles

3P

Protected Poles Description

3t

Control Type

Toggle

Breaking Capacity Code

D

Rated Operational Voltage [Ue]

690 V AC 50/60 Hz IEC 60947-3

Network Frequency

50/60 Hz

Rated Impulse Withstand Voltage [Uimp]

8 kV IEC 60947-2

Trip Unit Technology

Thermal-magnetic

Magnetic Tripping Current

1700 A

Magnetic Hold Current

900 A

Continuous Current Rating

80 %

Rated Insulation Voltage [Ui]

750 V IEC 60947-2

Suitability for Isolation

Yes IEC 60947-2

Utilisation Category

Category A

AWG Gauge

AWG 14...AWG 3/0 aluminium/copper terminal

Local Signalling

Switched off (OFF) 1 trip indicator green

Mounting Mode

I-Line bracket

Mounting Support

Bracket Terminal identifier AL150HD

Mounting Height

4.5 in (114.30 mm)

Power Wire Stripping Length

0.63 in (16 mm)

Color

Black

Height

6.42 in (163 mm)

Width

4.09 in (104 mm)

Depth

3.39 in (86 mm)

Net Weight

4.85 lb (2.2 kg) (US)

Quantity per Set

1

Phase Connection

ABC


Information About HDA36150

The HDA36150 circuit breaker from Eaton's PowerPacT H series is designed for robust electrical system protection against overloads and short circuits. Available with both thermal magnetic and Micrologic electronic trip units, this H-Frame circuit breaker ensures reliable operation in various applications.

Specifically, the HDA36150 model offers thermal magnetic circuit protection with a notable breaking capacity of 14kA at 600VAC, suitable for handling high-energy faults without compromising system integrity. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit events, enhancing operational safety and longevity.

Featuring an integral push-to-trip button integrated into the cover, the HDA36150 allows manual tripping when necessary, facilitating swift response to faults for maintenance and safety procedures.

Eaton's PowerPacT H circuit breakers are available in 2-pole and 3-pole configurations, including unit mount and I-Line constructions. The I-Line variant offers simplified installation and removal in I-Line applications, supported by I-Line terminations on the line side and mechanical lugs on the load side.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
