HDL36020 | Schneider Electric Circuit Breaker
- Regular price
- $465.00
- Sale price
- $465.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?

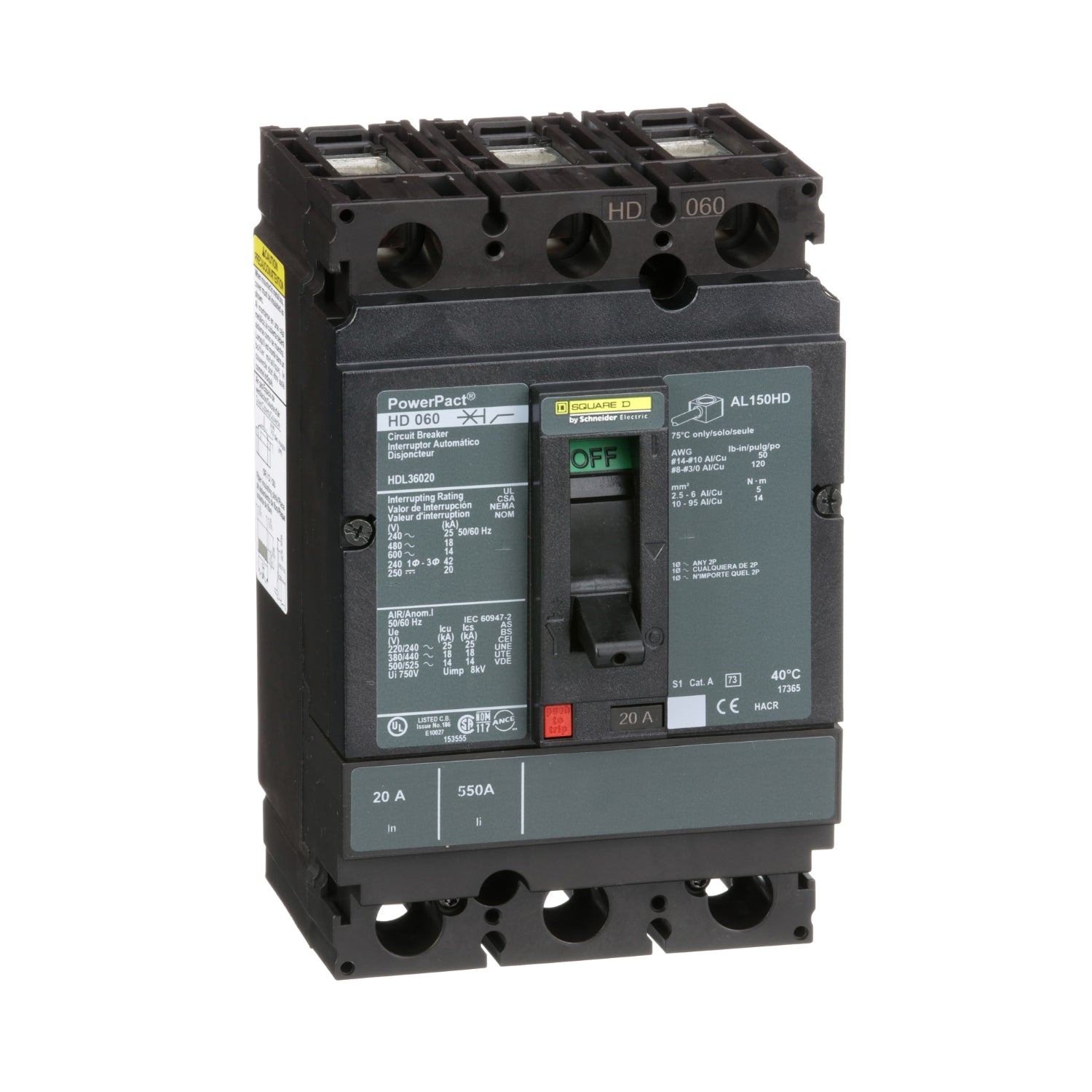

Product Description P/N: HDL36020
Description
The HDL36020 is a 3-pole circuit breaker from the PowerPacT H series by Schneider Electric, designed to safeguard electrical systems from overloads and short circuits. Available with thermal magnetic protection, it features a 14kA breaking capacity at 600VAC. Equipped with dual-break rotating contacts to mitigate peak current during faults, all PowerPacT H circuit breakers include an integral push-to-trip button for manual operation.
Technical Specifications
|
Part # |
HDL36020 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact H |
|
Product name |
PowerPact H |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
20 A |
|
Number of Poles |
3P |
|
Protected Poles Description |
3t |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
D |
|
[Ue] Rated Operational Voltage |
690 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
750 A |
|
Magnetic Hold Current |
350 A |
|
Continuous Current Rating |
80% |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
AWG Gauge |
AWG 14...AWG 3/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF), 1 trip indicator green |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Terminal Identifier |
AL150HD |
Information About HDL36020
The HDL36020 circuit breaker, part of the PowerPacT H series by Schneider Electric, is engineered to safeguard electrical systems from the damaging effects of overloads and short circuits. These H-Frame circuit breakers are versatile, offering both thermal magnetic and Micrologic electronic trip protection options. The HDL36020 specifically delivers thermal magnetic circuit protection, capable of handling a robust 14kA breaking capacity at 600VAC.
Designed with dual-break rotating contacts, these circuit breakers effectively mitigate peak current during short circuit faults, enhancing operational safety. They are equipped with an integral push-to-trip button integrated into the cover, allowing for manual interruption of the circuit when needed. Available configurations include 2 and 3-pole units, suitable for both unit mount and I-Line constructions, providing flexibility in installation.
The HDL36020 features lugs on both the line and load sides, facilitating secure electrical connections. Rated at 20A for a three-pole setup, it maintains a continuous current rating of 80%, ensuring reliable performance under varying load conditions. These circuit breakers conform to rigorous UL, CSA, NOM, and IEC standards, underscoring their compliance with international safety and performance benchmarks. Additionally, they bear the CE mark, indicating conformity with European Union directives.
