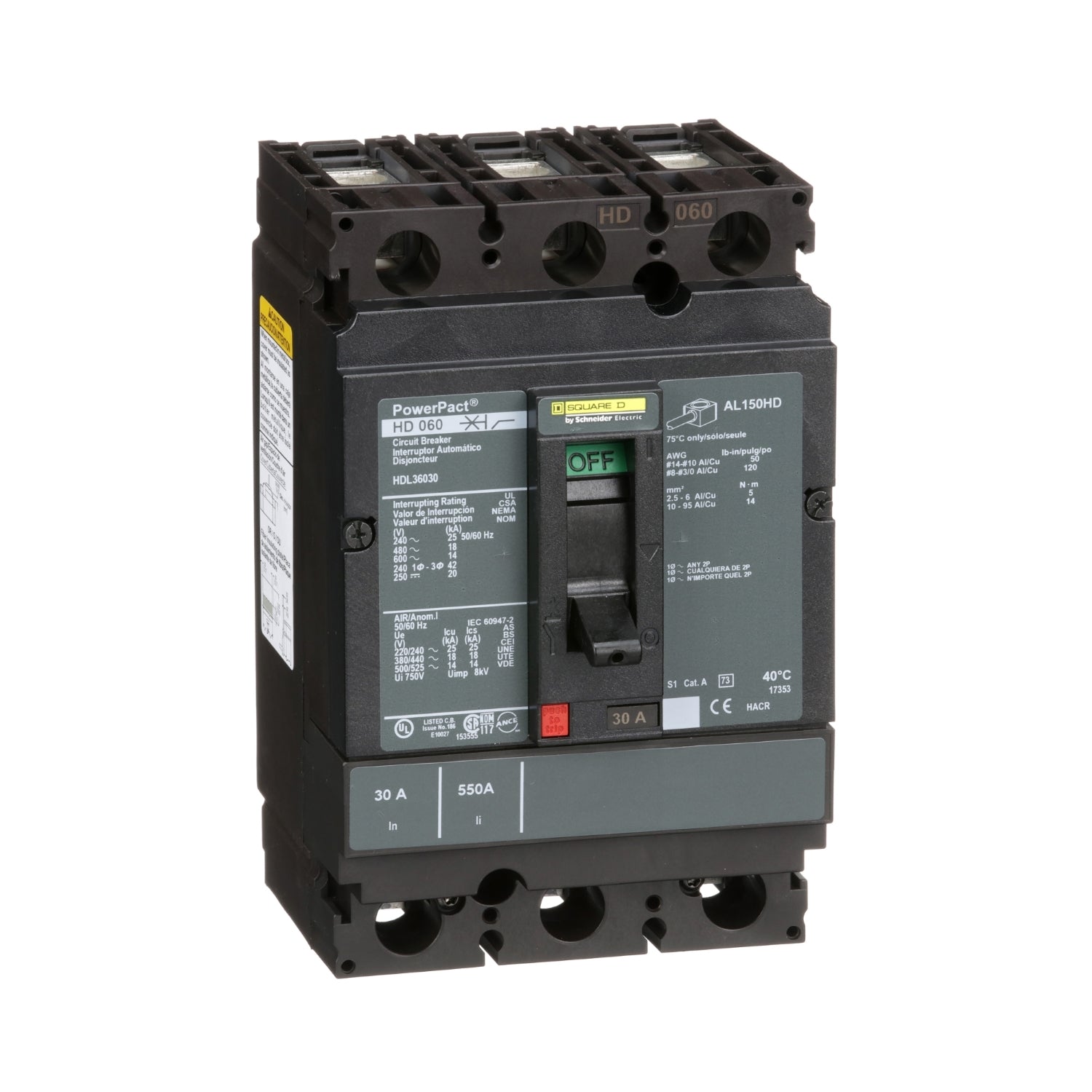

HDL36030 | Schneider Electric Circuit Breaker
- Regular price
- $540.00
- Sale price
- $540.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HDL36030
Description
HDL36030, Square D,Schneider Electric, Powerpact, type HDL, 3P, 3PH, 30A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | HDL36030 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | HDL |
| Voltage | 600 |
| Amperage | 30 |
| Phase | 3 |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Frame Type | H Frame |
| Connection | Feed-Thru |
| AIC Rating | 18kA@480V |
Information About HDL36030
The HDL36030 by Schneider Electric is a high-quality circuit breaker from the Powerpact family, designed for robust electrical protection in industrial and commercial applications. Operating at a voltage of 600V with an amperage rating of 30A, this HDL-type circuit breaker is ideal for moderate-capacity circuits.
Featuring a 3-pole configuration, the HDL36030 supports three-phase electrical systems, ensuring balanced power distribution and effective protection for various electrical loads. Its feed-thru connection design allows for straightforward and secure installation, enhancing the reliability of electrical connections in panelboards and distribution systems.
Equipped with thermal magnetic protection, the HDL36030 offers comprehensive circuit safeguarding by combining thermal overload protection with magnetic short-circuit protection. This ensures dependable operation and immediate response to electrical faults, preventing potential damage to wiring and connected devices.
The circuit breaker incorporates Long-Time and Instantaneous (LI) functions, providing advanced protection features. The Long-Time function addresses sustained overcurrent conditions to prevent overloads, while the Instantaneous function responds quickly to short-circuit events, ensuring immediate circuit interruption to mitigate damage.
With an Ampere Interrupting Capacity (AIC) of 18kA at 480V, the HDL36030 is capable of handling significant fault currents, providing robust protection for electrical systems.
The H Frame type construction of the HDL36030 ensures durability and high performance, making it suitable for rigorous industrial environments.
Overall, the Schneider Electric HDL36030 circuit breaker delivers reliable performance, secure installation, and advanced protection features, making it an essential component for ensuring the safety and reliability of electrical systems in industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
